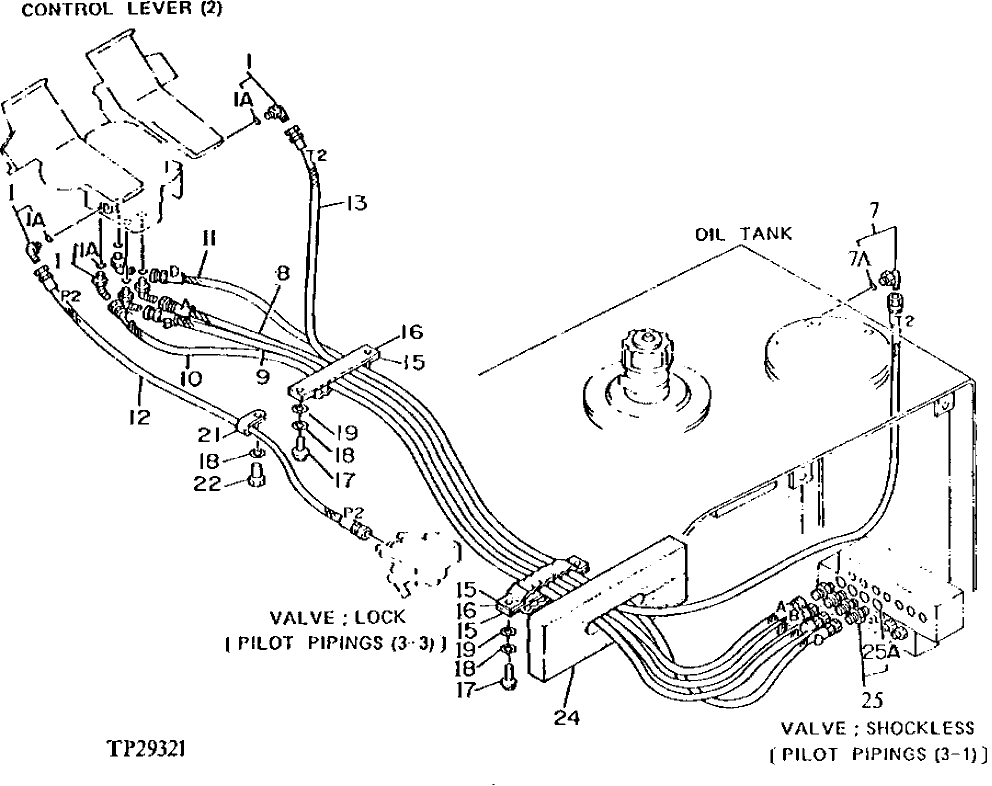

Запчасти John Deere 90D 40 - PILOT PLUMBING 3360 - EXCAVATOR 33

1

AT318014

ELBOW FITTING

(SUB FOR 4156434) (SUB FOR TH101930)

6шт.

1A

M800650

PACKING

1шт.

7

4154671

ELBOW FITTING

(SUB FOR TH101047)

1шт.

7A

CH11570

O-RING

1шт.

8

4203024

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH108468) (SUB FOR TH109614 OR AH99310, THIS APPLICATION) (A)

1шт.

9

4203024

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH108468) (SUB FOR TH109615 OR AH99310, THIS APPLICATION) (B)

1шт.

10

AE42000

HYDRAULIC HOSE

(SUB FOR TH109616) (C)

1шт.

11

AE42000

HYDRAULIC HOSE

(SUB FOR TH109617) (D)

1шт.

12

AT57860

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109618) (P2)

1шт.

13

AH89075

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109619) (T2)

1шт.

15

9727639

HOSE CLAMP

(SUB FOR TH108456)

3шт.

16

9727637

PLATE

(SUB FOR TH108457)

2шт.

17

19M7550

CAP SCREW

M10 X 35

4шт.

18

12M7066

LOCK WASHER

10 MM

5шт.

19

24M7028

WASHER

10.500 X 20 X 2 MM

4шт.

21

4190275

CLIP

(SUB FOR TH108598)

1шт.

22

19M8324

CAP SCREW

M10 X 16

1шт.

24

4204324

ISOLATOR

(SUB FOR TH109620)

1шт.

25

4200466

ADAPTER FITTING

(SUB FOR TH108320)

4шт.

25A

CH11570

O-RING

1шт.
