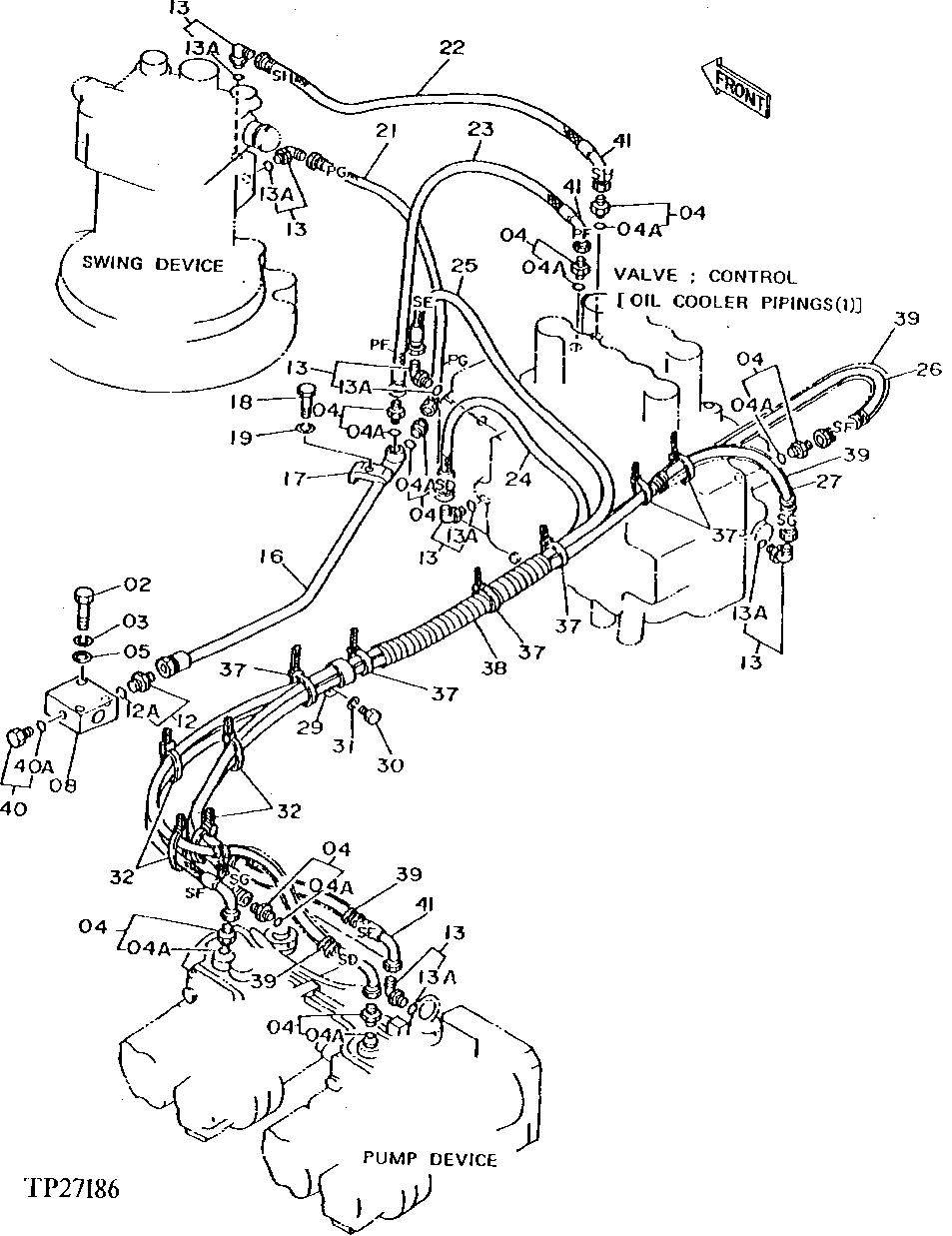

Запчасти John Deere 90D 38 - PILOT PLUMBING 3360 - EXCAVATOR 33

2

19M8499

CAP SCREW

M10 X 60

2шт.

3

12M7066

LOCK WASHER

10 MM

2шт.

4

4200465

ADAPTER FITTING

(SUB FOR TH108328)

8шт.

4A

M800650

PACKING

1шт.

5

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

8

9072360

CHECK VALVE

(SUB FOR TH108415)

1шт.

12

4200466

ADAPTER FITTING

(SUB FOR TH108320)

1шт.

12A

CH11570

O-RING

1шт.

13

4154670

ELBOW FITTING

(SUB FOR TH100951)

6шт.

13A

M800650

PACKING

1шт.

16

9727732

LINE

(SUB FOR TH109579)

1шт.

17

4190124

CLAMP

(SUB FOR TH108727)

1шт.

18

19M7496

CAP SCREW

M12 X 45, (SUB FOR AT122612)

1шт.

19

12H301

LOCK WASHER

1/2"

1шт.

21

AE42718

HYDRAULIC HOSE

(PG) (SUB FOR 4203084 ALONG WITH AH89069)

1шт.

AH89069

ELBOW FITTING

1шт.

22

AE42718

HYDRAULIC HOSE

(SH) (SUB FOR TH109581 ALONG WITH AH89069)

1шт.

23

AE42282

HYDRAULIC HOSE

(PF) (SUB FOR TH109582 ALONG WITH AH89069)

1шт.

24

4203076

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109583) (SD)

1шт.

25

AE42281

HYDRAULIC HOSE

(SUB FOR AT132003) (SUB FOR 4203077 ALONG WITH AH89069)

1шт.

26

4203076

HYDRAULIC HOSE - FABRICATE

(SF) (SUB FOR TH109585, TH109583)

1шт.

27

AE42281

HYDRAULIC HOSE

(SUB FOR TH109586) (SG)

1шт.

29

XCL-19

HOSE CLAMP

(SUB FOR TH108459 OR 4192035)

1шт.

30

19M8324

CAP SCREW

M10 X 16

1шт.

31

12M7066

LOCK WASHER

10 MM

1шт.

32

H77698

TIE BAND

(SUB FOR M88199)

4шт.

37

H77698

TIE BAND

(SUB FOR T44946)

6шт.

38

HOSE GUARD

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR TH100996, AT138222 OR 3052919)

1шт.

39

LINE

(MAKE FROM TY20965 BULK MATERIAL, CUT TO LENGTH)

4шт.

40

AT318013

DRAIN PLUG

(SUB FOR 4093624) (SUB FOR TH103949) (SUB FOR TH102536)

1шт.

40A

M800650

PACKING

1шт.

41

AH89069

ELBOW FITTING

3шт.
