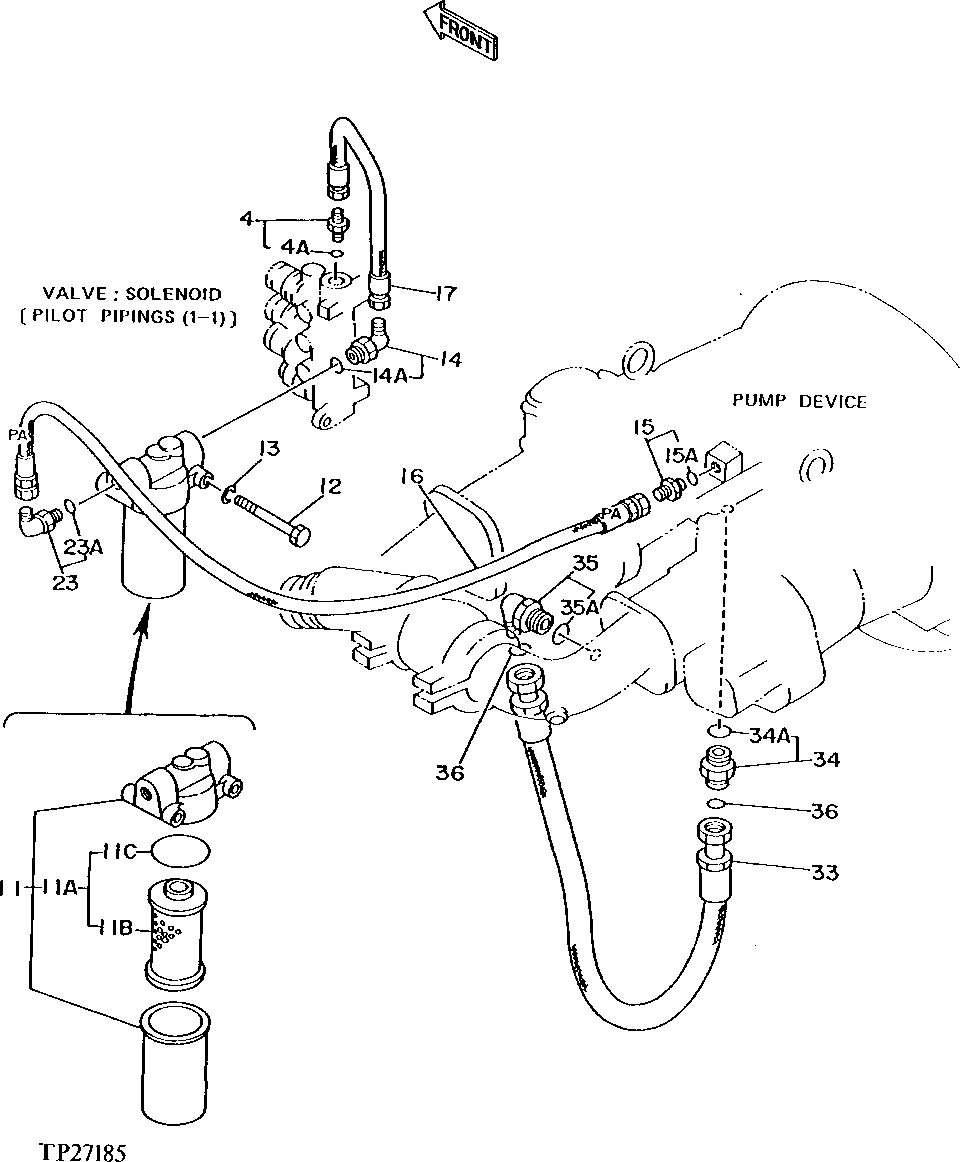

Запчасти John Deere 90D 36 - PILOT PLUMBING 3360 - EXCAVATOR 33

4

4200469

ADAPTER FITTING

(SUB FOR TH108400)

1шт.

4A

4506418

O-RING

(SUB FOR TH100061) (SUB FOR U46489)

1шт.

11

4631976

OIL FILTER

(SUB FOR TH108402, 4191300)

1шт.

11A

AT186554

FILTER ELEMENT

(SUB FOR TH108403 OR AT147821)

1шт.

11B

FILTER ELEMENT

(SUB AT147821 OR AT186554)

1шт.

11C

AT264334

O-RING

(SUB FOR TH100101) (USE WITH TH108403 FILTER ELEMENT)

1шт.

CH17154

PACKING

(USE WITH AT147821 FILTER ELEMENT)

1шт.

12

19M8761

SCREW

M10 X 22, (SUB FOR TH102993)

2шт.

13

12M7066

LOCK WASHER

10 MM

2шт.

14

4200471

ELBOW FITTING

(SUB FOR TH108399)

1шт.

14A

4506418

O-RING

(SUB FOR TH100061) (SUB FOR U46489)

1шт.

15

4200466

ADAPTER FITTING

(SUB FOR TH108320)

1шт.

15A

CH11570

O-RING

1шт.

16

4283567

HYDRAULIC HOSE

(SUB FOR TH110205, AT66084) (SUB FOR AT108250, THIS APPLICATION) (PA)

1шт.

17

9727733

LINE

(SUB FOR TH109569)

1шт.

9732021

OIL LINE

(SUB FOR TH111869)

1шт.

23

4200471

ELBOW FITTING

(SUB FOR TH108399)

1шт.

23A

4506418

O-RING

(SUB FOR TH100061) (SUB FOR U46489)

1шт.

33

AT107220

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109576)

1шт.

34

A853166

ADAPTER FITTING

(SUB FOR AT107392 OR 4189619)

1шт.

34A

AT318035

O-RING

(SUB FOR 4506424, TH100055)

1шт.

35

4157562

ELBOW FITTING

(SUB FOR TH109540)

1шт.

35A

AT318035

O-RING

(SUB FOR 4506424, TH100055)

1шт.

36

T77858

O-RING

(SUB FOR TH108349)

2шт.
