Запчасти John Deere 90D 34 - PILOT PLUMBING 3360 - EXCAVATOR 33

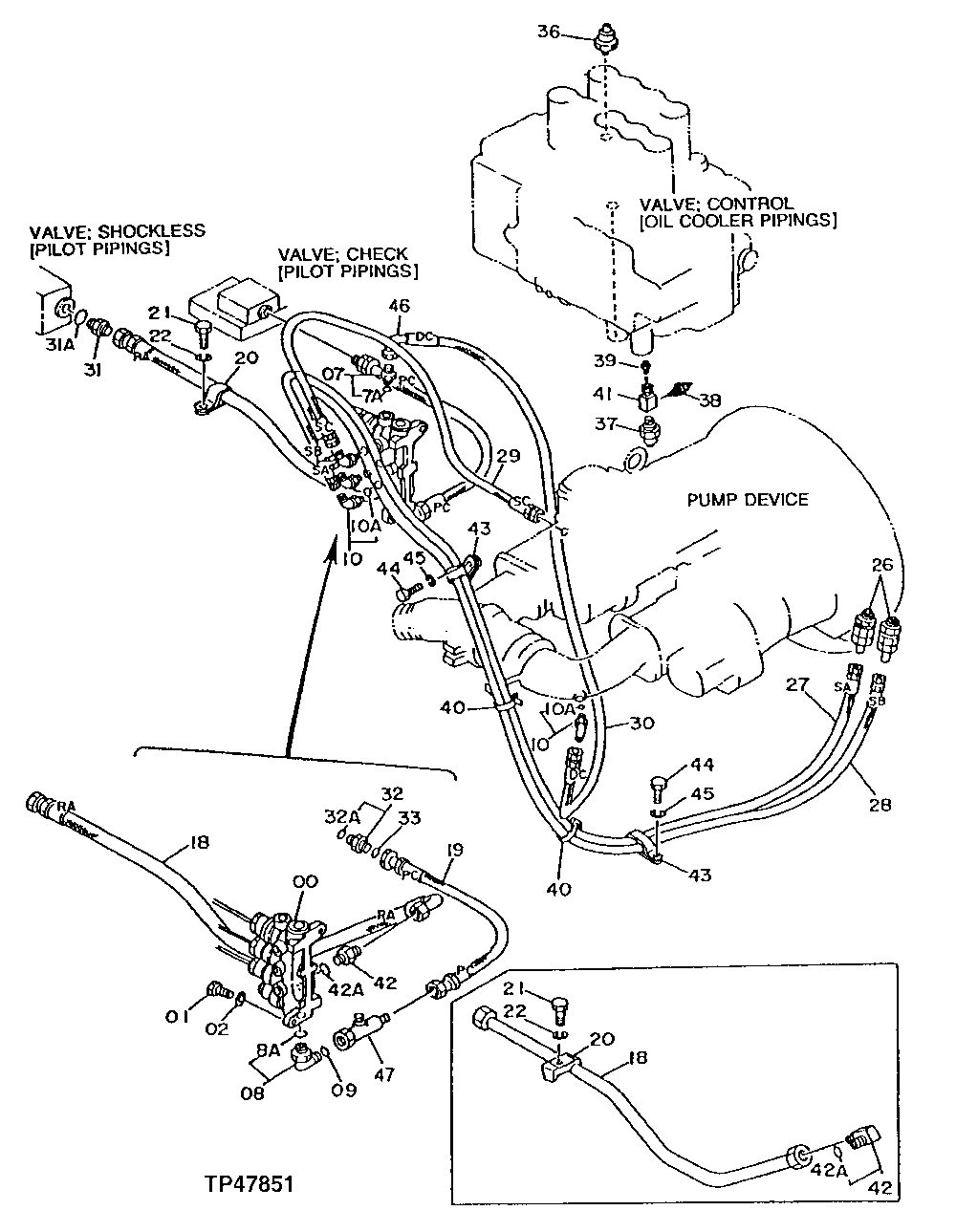

Схема запчастей John Deere 90D - 34 - PILOT PLUMBING 3360 - EXCAVATOR 33

Артикул

Название

Примечание

Количество

0

4196411

SOLENOID VALVE

(SUB FOR TH108398)

1шт.

1

19M7662

CAP SCREW

M10 X 30

2шт.

2

12M7066

LOCK WASHER

10 MM

2шт.

7

4200465

ADAPTER FITTING

(SUB FOR TH108328)

1шт.

7A

M800650

PACKING

1шт.

8

A853344

ELBOW FITTING

(SUB FOR TH108401, 4200580)

1шт.

8A

4506418

O-RING

(SUB FOR TH100061) (SUB FOR U46489)

1шт.

9

T77857

O-RING

(SUB FOR TH108323)

1шт.

10

4154670

ELBOW FITTING

(SUB FOR TH100951)

4шт.

10A

M800650

PACKING

1шт.

18

HOSE

( TH110206 NO LONGER AVAILABLE) (SUB TH111660, ALONG WITH TH108596, 12H301, 19M8017, TH101006, AND U46489)

1шт.

TH111660

HYDRAULIC HOSE - FABRICATE

1шт.

19

TH109571

HYDRAULIC HOSE - FABRICATE

(PC)

1шт.

20

CLIP

( TH109570 OR TH110206 NO LONGER AVAILABLE) (SUB TH108596, ALONG WITH 12H301, 19M8017, TH111660, TH101006 AND U46489)

1шт.

4190262

CLIP

(SUB FOR TH108596)

1шт.

21

19M8017

CAP SCREW

M12 X 20

1шт.

22

12H301

LOCK WASHER

1/2"

1шт.

26

4187914

CYLINDER

(SUB FOR TH108409) (AUTO IDLE MODE ADAPTER AND ECONOMY MODE ADAPTER)

2шт.

27

AT30743

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109572) (SA)

1шт.

28

AT30743

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109573) (SB)

1шт.

29

AE42718

HYDRAULIC HOSE

(SUB FOR TH109574) (SC)

1шт.

30

AH96002

HYDRAULIC HOSE

(DC) (SUB FOR TH109575 ALONG WITH AH89069)

1шт.

31

X8-10F5OX

ADAPTER FITTING

(SUB FOR TH101006) (SUB FOR TH110204, ALONG WITH U46489)

1шт.

31A

4506418

O-RING

(SUB FOR U46489)

1шт.

32

4189602

FITTING

(SUB FOR TH108350)

1шт.

32A

4506418

O-RING

(SUB FOR U46489)

1шт.

33

T77857

O-RING

(SUB FOR TH108323)

1шт.

36

4259333

PRESSURE SWITCH

(SUB FOR TH108413) (AUTO IDLE)

1шт.

37

4259333

PRESSURE SWITCH

(SUB FOR TH108413) (DIG FUNCTION)

1шт.

38

4259333

PRESSURE SWITCH

(SUB FOR TH108413) (MOTION ALARM)

1шт.

39

4242510

ADAPTER FITTING

(SUB FOR AT126870)

1шт.

40

H77698

TIE BAND

(SUB FOR T44946)

2шт.

41

4242511

TEE FITTING

(SUB FOR AT126871)

1шт.

42

4154672

ELBOW FITTING

(SUB FOR TH109577) (SUB FOR TH101008)

1шт.

X8-10F5OX

ADAPTER FITTING

(SUB FOR TH101006) (SUB FOR TH110204, ALONG WITH U46489)

1шт.

42A

4506418

O-RING

(SUB FOR U46489)

1шт.

43

4190292

CLIP

(SUB FOR TH108321)

2шт.

44

19M3142

CAP SCREW

M10 X 18

2шт.

45

12M7066

LOCK WASHER

10 MM

2шт.

46

AH89069

ELBOW FITTING

1шт.

47

38H1031

TEE FITTING

(INTERMITTENT AND CONSTANT SPEED SAWS)

1шт.

Выбрано товаров: 41
