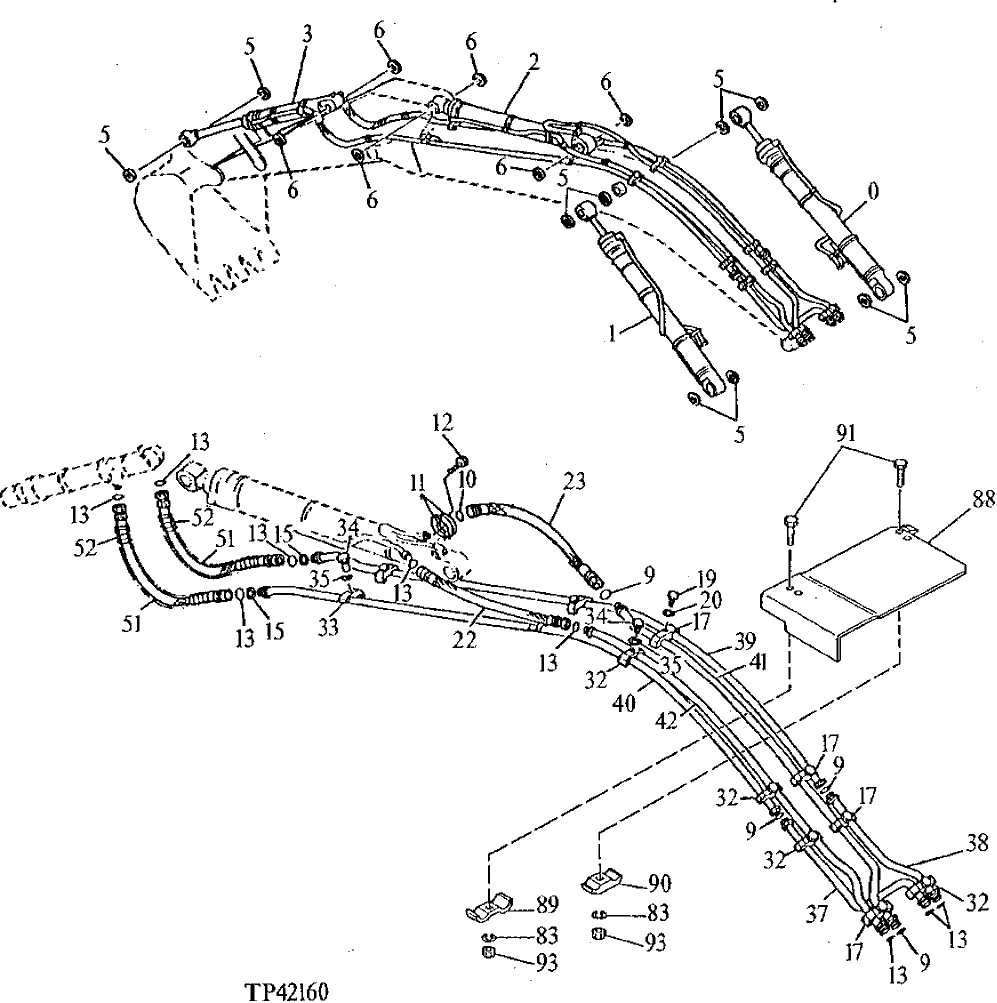

Запчасти John Deere 90D 32 - BOOM, BUCKET AND ARM PLUMBING 3360 - EXCAVATOR 33

0

CYLINDER

BOOM, RIGHT

1шт.

1

CYLINDER

BOOM, LEFT

1шт.

2

CYLINDER

ARM

1шт.

CYLINDER

ARM (USE LEFT BOOM CYLINDER IN THIS APPLICATION)

1шт.

3

CYLINDER

BUCKET

1шт.

5

TH102445

SEAL

(I.D. 100 MM - O.D. 115 MM)

10шт.

6

TH102446

SEAL

(I.D. 80 MM - O.D. 95 MM)

6шт.

9

T76938

O-RING

(SUB FOR TH108326)

4шт.

10

T76938

O-RING

(SUB FOR TH108326)

1шт.

T78313

O-RING

(SUB FOR H61355)

1шт.

11

4085560

FLANGE FITTING

(SUB FOR TH101960)

2шт.

12

19M8341

SCREW

M12 X 45

4шт.

13

T77858

O-RING

(SUB FOR TH108349)

9шт.

15

4203220

WASHER

(SUB FOR TH109827)

2шт.

17

4153488

CLAMP

(SUB FOR TH103780)

4шт.

19

19M8348

CAP SCREW

M12 X 65

4шт.

20

12H301

LOCK WASHER

1/2"

4шт.

22

AT107220

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109828)

1шт.

TH111978

HYDRAULIC HOSE - FABRICATE

1шт.

23

TH111979

HYDRAULIC HOSE - FABRICATE

(SUB TH111979) (SUB FOR TH109829)

1шт.

TH111979

HYDRAULIC HOSE - FABRICATE

1шт.

32

4189859

CLAMP

(SUB FOR TH109071)

4шт.

33

4190126

CLAMP

(SUB FOR TH109830)

4шт.

34

19M7363

CAP SCREW

M12 X 60

8шт.

35

12H301

LOCK WASHER

1/2"

8шт.

37

9726390

LINE

(SUB FOR TH109831)

1шт.

38

9726391

LINE

(SUB FOR TH109832)

1шт.

39

8036809

LINE

(SUB FOR TH109833)

1шт.

40

8036810

LINE

(SUB FOR TH109834)

1шт.

41

8038547

LINE

(SUB FOR TH109835)

1шт.

8042513

OIL LINE

(SUB FOR TH111980)

1шт.

42

8038548

LINE

(SUB FOR TH109836)

1шт.

8042623

OIL LINE

(SUB FOR TH111981)

1шт.

51

TH109837

HYDRAULIC HOSE - FABRICATE

(STANDARD ARM)

2шт.

TH109838

HYDRAULIC HOSE - FABRICATE

(LONG ARM)

2шт.

TH109839

HYDRAULIC HOSE - FABRICATE

(SHORT ARM)

2шт.

52

4053610

HOSE GUARD

(SUB FOR TH104495) (SHORT ARM)

2шт.

4196279

HOSE GUARD

(SUB FOR TH109841) (STANDARD ARM)-CUT TO LENGTH

2шт.

4196279

HOSE GUARD

(SUB FOR TH109841) (LONG ARM)

2шт.

83

LOCK WASHER

(SEE SERVICE DOORS AND COVERS)

2шт.

88

COVER

(SEE SERVICE DOORS AND COVERS)

1шт.

89

CLAMP

(SEE SERVICE DOORS AND COVERS)

1шт.

90

CLAMP

(SEE SERVICE DOORS AND COVERS)

1шт.

91

CAP SCREW

(SEE SERVICE DOORS AND COVERS)

2шт.

93

NUT

(SEE SERVICE DOORS AND COVERS)

2шт.
