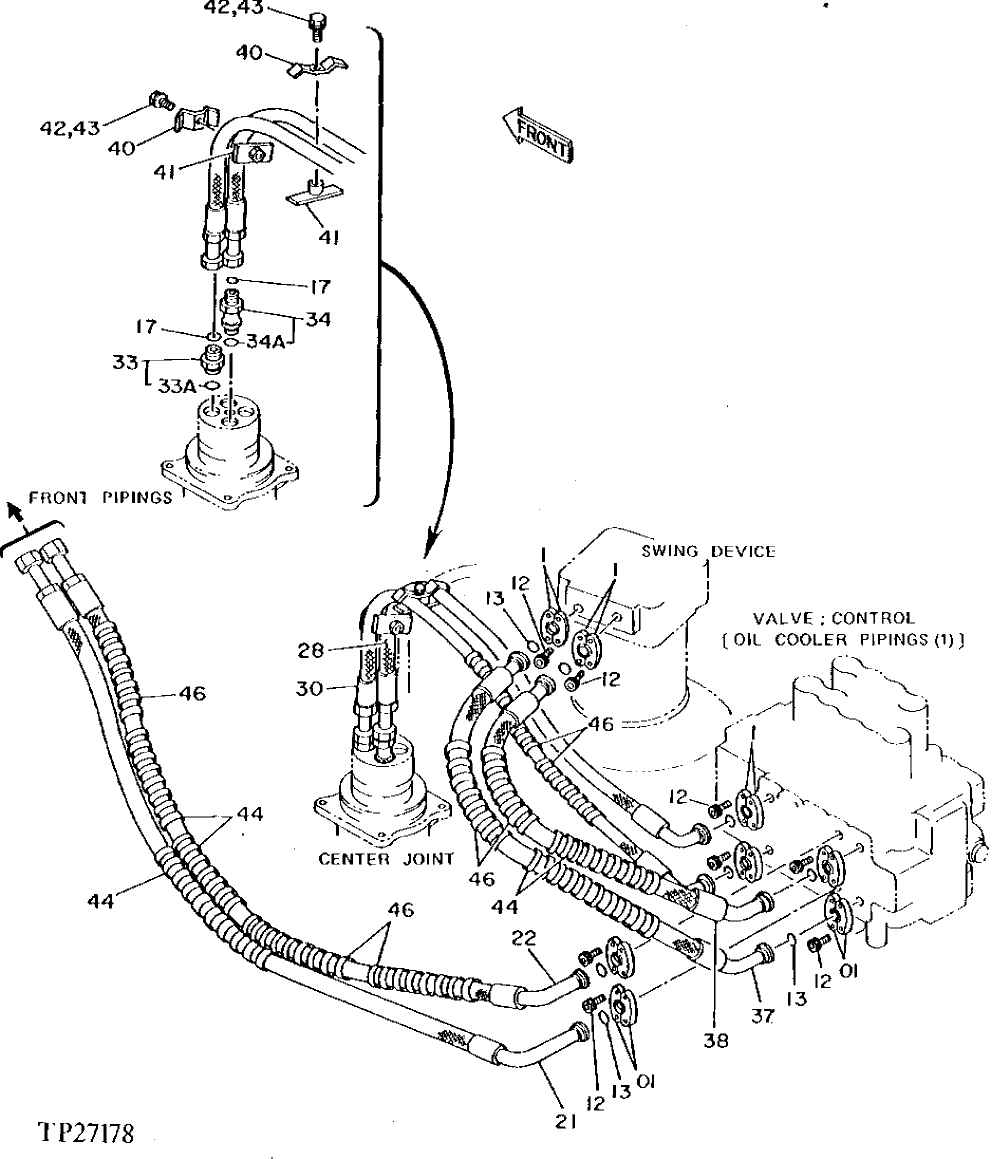

Запчасти John Deere 90D 26 - MAIN PIPINGS 3360 - EXCAVATOR 33

1

R29424

FLANGE FITTING

(SUB FOR TH108300)

16шт.

12

19M8337

SCREW

M10 X 30

32шт.

13

T59014

O-RING

8шт.

17

T77858

O-RING

(SUB FOR TH108349)

2шт.

21

4200424

HOSE

(SUB FOR TH109549) (TO ARM CYLINDER ROD END)

1шт.

22

TH112006

HYDRAULIC HOSE

(SUB FOR TH109550)

1шт.

28

TH111871

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109553)

1шт.

30

TH111871

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109553)

1шт.

33

A853166

ADAPTER FITTING

(SUB FOR AT107392 OR 4189619)

1шт.

33A

AT318035

O-RING

(SUB FOR 4506424, TH100055)

1шт.

34

4189539

ADAPTER FITTING

(SUB FOR AT107393)

1шт.

34A

AT318035

O-RING

(SUB FOR 4506424, TH100055)

1шт.

37

TH109554

HYDRAULIC HOSE - FABRICATE

1шт.

38

4196243

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109555)

1шт.

40

4202103

CLAMP

(SUB FOR TH108302)

2шт.

41

9727822

CLAMP

(SUB FOR TH109556)

2шт.

42

12H301

LOCK WASHER

1/2"

2шт.

43

19M7362

CAP SCREW

M12 X 55

2шт.

44

HOSE GUARD

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

5шт.

46

HOSE GUARD

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

7шт.
