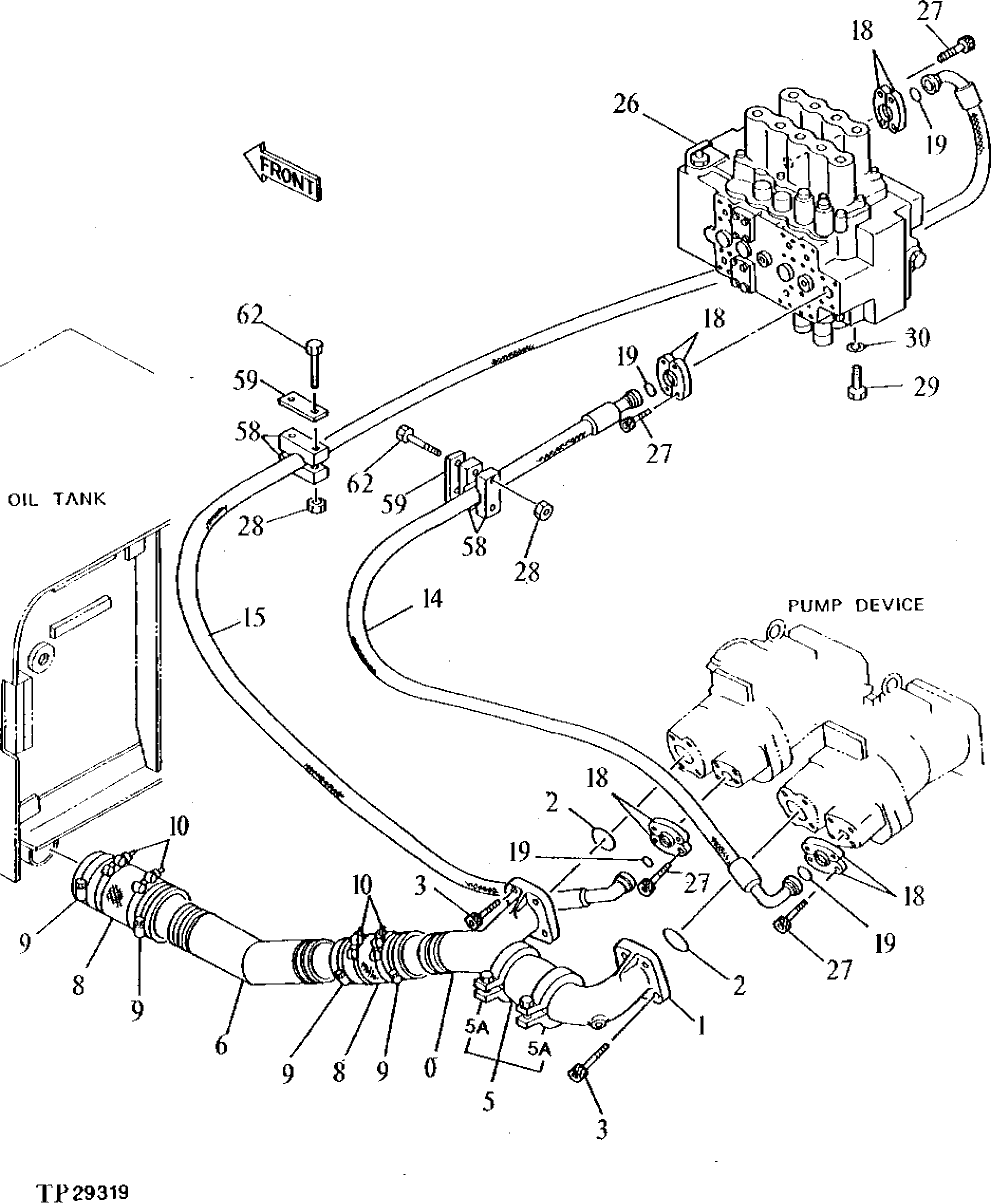

Запчасти John Deere 90D 16 - OIL COOLER PLUMBING 3360 - EXCAVATOR 33

0

2024562

COOLANT MANIFOLD

(SUB FOR TH109516)

1шт.

1

1009574

COOLANT MANIFOLD

(SUB FOR TH109517)

1шт.

2

TH105684

O-RING

2шт.

3

19M8168

SCREW

M12 X 25

8шт.

5

4071215

COUPLING

(SUB FOR TH101898)

1шт.

5A

4196267

SEAL

(SUB FOR TH106969)

2шт.

6

4210124

LINE

(SUB FOR TH109518)

1шт.

8

4348414

HOSE

(SUB FOR 4109378, ALONG WITH (2) AT56658, THIS APPLICATION)

2шт.

9

AT50924

HOSE CLAMP

(SUB FOR TH109520 OR AT39141, THIS APPLICATION)

4шт.

10

AT56658

HOSE CLAMP

(SUB FOR TH109521 OR AT39141 OR AT50924, THIS APPLICATION)

4шт.

14

TH109522

HOSE

1шт.

15

TH109523

HYDRAULIC HOSE - FABRICATE

1шт.

18

4085560

FLANGE FITTING

(SUB FOR TH101960)

8шт.

19

T78313

O-RING

(SUB FOR H61355)

4шт.

26

4224901

HYD ACTUATED CONTROL VALVE

(SUB FOR TH109524, TH111925 AND AT186100)

1шт.

27

19M8341

SCREW

M12 X 45

16шт.

28

14M7274

NUT

M10

4шт.

29

19M8035

CAP SCREW

M16 X 35

4шт.

30

12H294

LOCK WASHER

5/8"

4шт.

58

4194953

CLAMP

(SUB FOR TH109532)

4шт.

59

4195494

PLATE

(SUB FOR TH109533)

2шт.

62

19M8183

CAP SCREW

M10 X 90

4шт.
