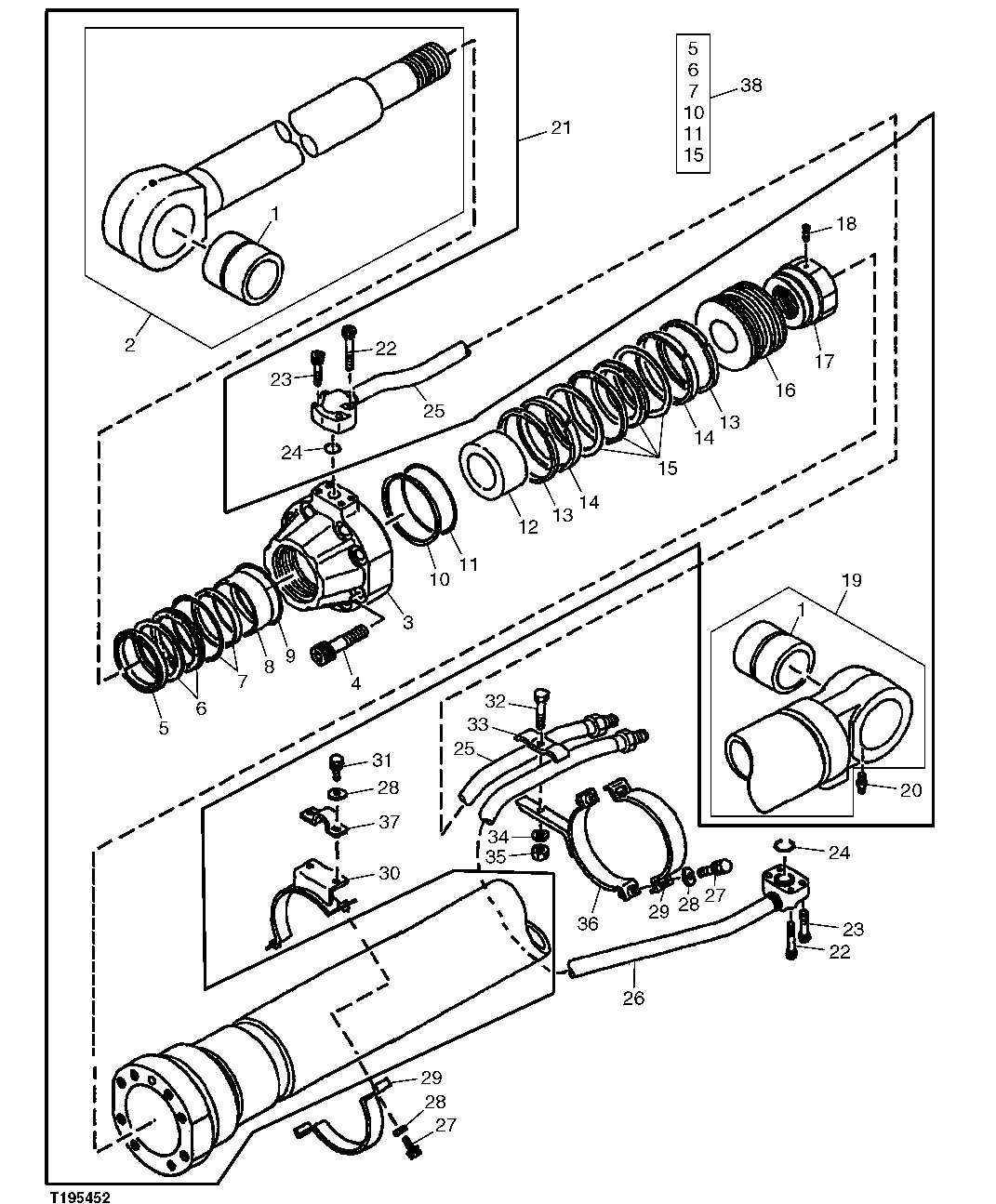

Запчасти John Deere 90D 4 - LEFT BOOM CYLINDER (790D & 793D) ARM CYLINDER (793D) 3360 - EXCAVATOR 33

1

3054062

BUSHING

(SUB FOR TH110014) (SUB FOR AT154689)

2шт.

2

7016732

ROD

(INCLUDES (1) AT154689 BUSHING) (SUB FOR TH110015) (SUB FOR TH111712)

1шт.

3

HYDRAULIC CYLINDER CAP

( TH110016 NO LONGER AVAILABLE) (SUB AT131249) (ALSO ORDER AT131251)

1шт.

1016385

HYDRAULIC CYLINDER CAP

(SUB FOR AT131249)

1шт.

4

M342280

SCREW

(SUB FOR TH110086)

8шт.

5

TH110017

SEAL

(A)

1шт.

6

AT264395

SEAL

(A) (SUB FOR TH110018)

1шт.

7

RING

(A) (SUB FOR TH110019) ( AT264396 NLA)

1шт.

8

4284533

BUSHING

(FITS 3.50" DIA. ROD) (SUB FOR TH110020) (SUB FOR AT131422)

1шт.

9

4264983

SNAP RING

(SUB FOR AT131251)

1шт.

10

4129443

BACK-UP RING

(A) (SUB FOR TH110024)

1шт.

11

TH110021

O-RING

(A)

1шт.

12

4171477

RING

(SUB FOR TH110031)

1шт.

13

AT264397

RING

(SUB FOR TH110033)

2шт.

14

AT318034

WEAR RING

(SUB FOR 4185248, TH110034)

2шт.

15

AT264297

SEAL

(SUB FOR TH110036, AT218148)

1шт.

16

3034605

PISTON

(SUB FOR TH110032)

1шт.

17

3038328

NUT

(SUB FOR TH110038)

1шт.

18

4201805

SET SCREW

(SUB FOR TH110037)

1шт.

19

9121223

HYDRAULIC CYLINDER BARREL

(INCLUDES (1) AT154689 BUSHING) (SUB FOR TH110013)

1шт.

20

TH100074

LUBRICATION FITTING

1шт.

21

AT264213

HYDRAULIC CYLINDER

(SUB FOR TH110012) (SUB FOR AT131425, 9111406)

1шт.

22

19M8444

SCREW

4шт.

23

19M8341

SCREW

4шт.

24

AT264324

O-RING

(SUB FOR AT152413 OR T32587) (SUB FOR TH100044)

2шт.

25

8035573

LINE

(SUB FOR TH110040)

1шт.

26

8037956

LINE

(SUB FOR TH110041)

1шт.

27

19M7550

CAP SCREW

4шт.

28

12M7066

LOCK WASHER

6шт.

29

3043348

CLAMP

(SUB FOR TH110027) (SUB FOR TH111973)

2шт.

30

8043034

CLAMP

(SUB FOR TH110025) (SUB FOR TH111971)

1шт.

31

19M7402

CAP SCREW

2шт.

32

19M7363

CAP SCREW

1шт.

33

4229233

CLAMP

(SUB TH110030, THIS APPLICATION) (SUB FOR TH111974)

1шт.

34

12H301

LOCK WASHER

1шт.

35

14M7275

NUT

1шт.

36

8043033

CLAMP

(SUB FOR TH110026) (SUB FOR TH111972)

1шт.

37

4194152

CLAMP

(SUB FOR TH110029)

1шт.

38

SEAL KIT

(INCLUDES PARTS MARKED (A)) (USE TH110035 UNTIL EXHAUSTED)

1шт.

AT192098

SEAL KIT

(INCLUDES PARTS MARKED (A)) (SUB FOR TH110035)

1шт.
