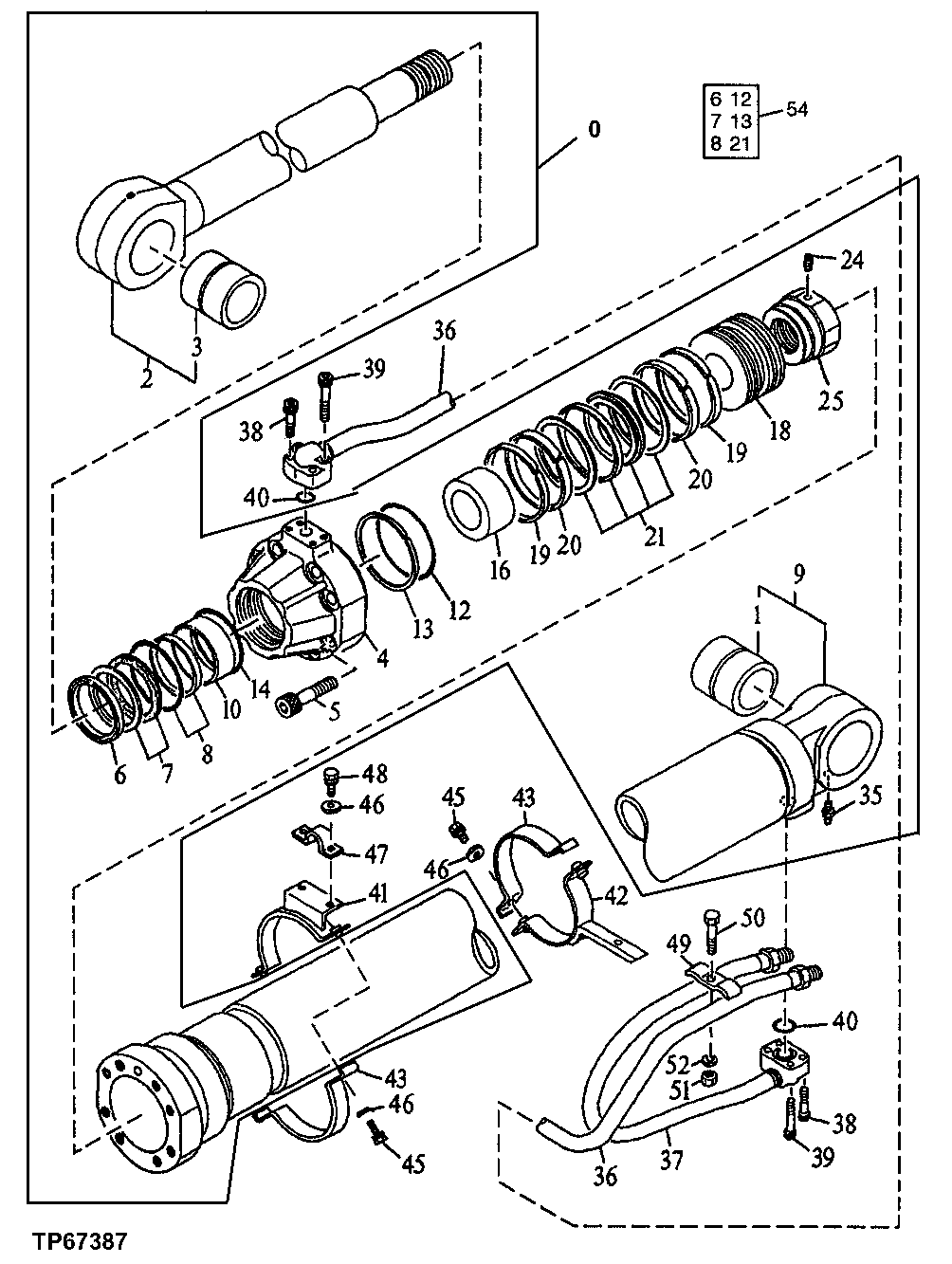

Запчасти John Deere 90D 2 - RIGHT BOOM CYLINDER 3360 - EXCAVATOR 33

0

AT264213

HYDRAULIC CYLINDER

(CONTAINS PARTS MARKED (A)) (SUB FOR TH110012) (SUB FOR AT131425, 9111406)

1шт.

1

3054062

BUSHING

(A) (SUB FOR TH110014) (SUB FOR AT154689)

1шт.

2

7016732

ROD

(A) (SUB FOR TH110015) (SUB FOR TH111712)

1шт.

3

3054062

BUSHING

(A) (SUB FOR TH110014) (SUB FOR AT154689)

1шт.

4

1016385

HYDRAULIC CYLINDER CAP

(A) (SUB FOR AT131249) (SUB FOR TH110016, ALONG WITH AT131251)

1шт.

5

M342280

SCREW

(A) (SUB FOR TH110086)

8шт.

6

TH110017

SEAL

(A) (B)

1шт.

7

AT264395

SEAL

(A) (B) (SUB FOR TH110018)

1шт.

8

RING

(A) (B) (SUB FOR TH110019) ( AT264396 NLA)

1шт.

9

9121223

HYDRAULIC CYLINDER BARREL

(A) (SUB FOR TH110013)

1шт.

10

4284533

BUSHING

(A) (SUB FOR TH110020) (SUB FOR AT131422) (FITS 3.50 DIAMETER ROD)

1шт.

12

TH110021

O-RING

(A) (B)

1шт.

13

4129443

BACK-UP RING

(A) (B) (SUB FOR TH110024)

1шт.

14

4264983

SNAP RING

(A) (SUB FOR AT131251)

1шт.

16

4171477

RING

(A) (SUB FOR TH110031)

1шт.

18

3034605

PISTON

(A) (SUB FOR TH110032)

1шт.

19

AT264397

RING

(A) (SUB FOR TH110033)

2шт.

20

AT318034

WEAR RING

(A) (SUB FOR 4185248, TH110034)

2шт.

21

AT264297

SEAL

(A) (B) (SUB FOR TH110036, AT218148)

1шт.

24

4201805

SET SCREW

(A) (SUB FOR TH110037)

1шт.

25

3038328

NUT

(A) (SUB FOR TH110038)

1шт.

35

TH100074

LUBRICATION FITTING

(A)

1шт.

36

8035572

LINE

(SUB FOR TH110022)

1шт.

37

8037955

LINE

(SUB FOR TH110023)

1шт.

38

19M8341

SCREW

M12 X 45

4шт.

39

19M8444

SCREW

4шт.

40

AT264324

O-RING

(SUB FOR AT152413, T32587, TH100044)

2шт.

41

8043034

CLAMP

(SUB FOR TH110025) (SUB FOR TH111971)

1шт.

42

8043033

CLAMP

(SUB FOR TH110026) (SUB FOR TH111972)

1шт.

43

3043348

CLAMP

(SUB FOR TH110027) (SUB FOR TH111973)

2шт.

45

19M7550

CAP SCREW

M10 X 35

4шт.

46

12M7066

LOCK WASHER

10 MM

6шт.

47

4194152

CLAMP

(SUB FOR TH110029)

1шт.

48

19M7402

CAP SCREW

M10 X 25

2шт.

49

4229233

CLAMP

(SUB FOR TH110030, THIS APPLICATION) (SUB FOR TH111974)

1шт.

50

19M7363

CAP SCREW

M12 X 60

1шт.

51

14M7275

NUT

M12

1шт.

52

12H301

LOCK WASHER

1/2"

1шт.

53

SEAL

(ROD OR HEAD END) (NOT ILLUSTRATED OR INCLUDED IN CYLINDER ASSEMBLY - FOR DETAIL SEE BOOM, BUCKET AND ARM PLUMBING)

2шт.

54

SEAL KIT

(INCLUDES PARTS MARKED (B)) (USE TH110035 UNTIL EXHAUSTED) (ALSO ORDER (2) TH110033 AND (2) TH110034)

1шт.

AT192098

SEAL KIT

(CONTAINS PARTS MARKED (B)) (SUB FOR TH110035) (ALSO ORDER (2) TH110033 AND (2) TH110034)

1шт.
