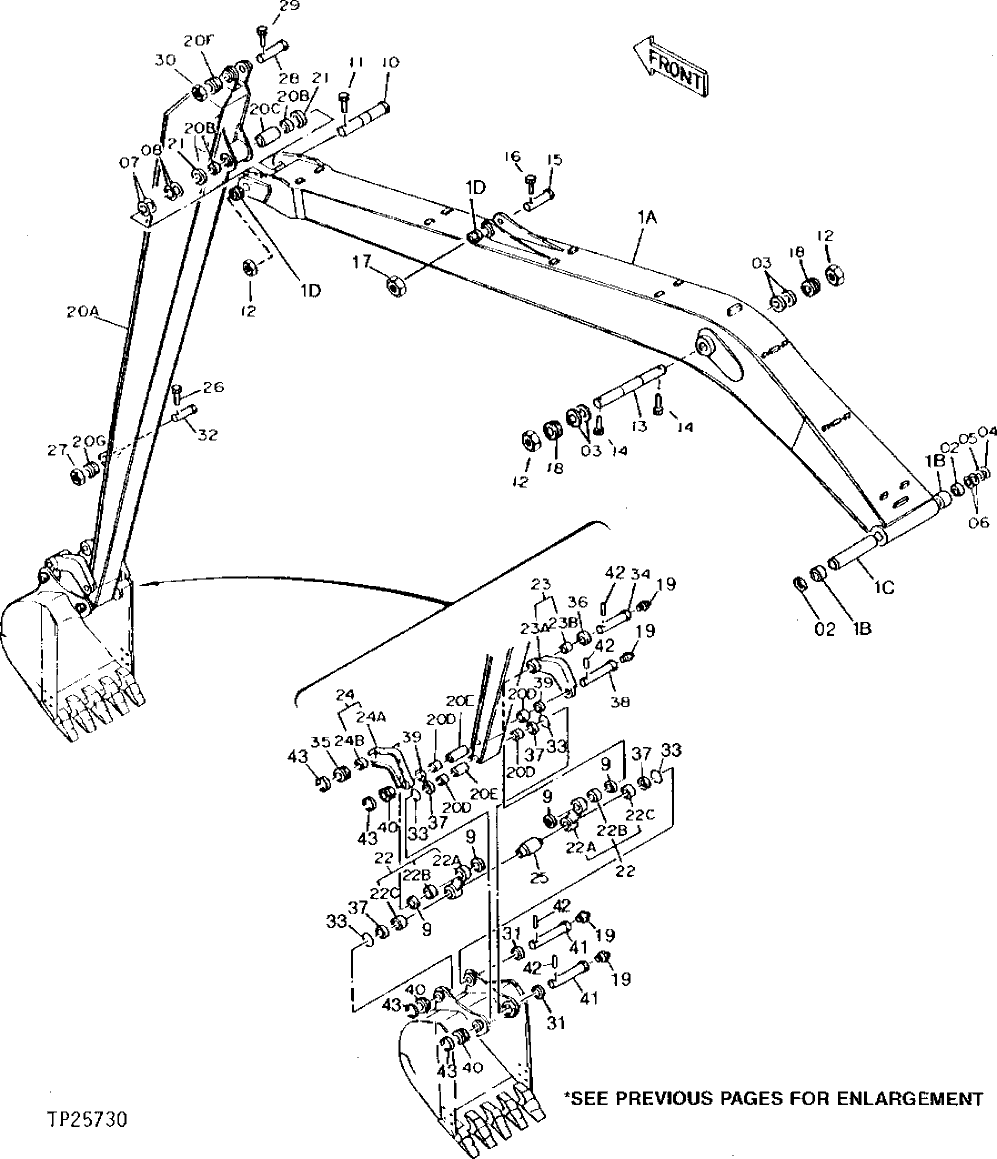

Запчасти John Deere 90D 6 - SUPER LONG FRONT ARM AND BOOM 3344 - EXCAVATOR 33

1

TH111042

EXCAVATOR BOOM

WHOLEGOODS (NOT ILLUSTRATED) INCLUDES ARM CYLINDER AND HYDRAULIC TUBES

1шт.

1A

EXCAVATOR BOOM

(SUB TH111042)

1шт.

1B

3039752

BUSHING

(SUB FOR TH109794)

2шт.

1C

4144319

SPACER

(SUB FOR TH102408)

1шт.

1D

4067719

PIVOT

(SUB FOR TH102410)

2шт.

2

TH102411

SEAL

2шт.

3

TH102445

SEAL

(I.D. 100 MM - O.D. 115 MM)

4шт.

4

4144511

WASHER

(SUB FOR TH102421)

1шт.

5

4144512

WASHER

(SUB FOR TH102422)

1шт.

6

4144513

WASHER

(SUB FOR TH102423)

2шт.

7

TH104297

WASHER

2шт.

8

TH104296

WASHER

2шт.

9

4117954

SEAL

(SUB FOR TH106006)

4шт.

10

TH111743

PIN FASTENER

1шт.

11

19M8503

CAP SCREW

M20 X 160

1шт.

12

14M7277

NUT

M20

6шт.

13

TH109795

DOWEL PIN

1шт.

14

19M8503

CAP SCREW

M20 X 160

2шт.

15

TH111744

PIN FASTENER

1шт.

16

19M8503

CAP SCREW

M20 X 160

1шт.

17

14M7277

NUT

M20

2шт.

18

TH102409

BUSHING

2шт.

19

TH100074

LUBRICATION FITTING

4шт.

20

TH111043

ARM

WHOLEGOODS (NOT ILLUSTRATED) INCLUDES HYDRAULIC TUBES, BUCKET CYLINDER AND BUCKET LINKAGE

1шт.

20A

ARM

(SUB TH111043)

1шт.

20B

3030949

BUSHING

(SUB FOR T115078)

2шт.

20C

4184513

SPACER

(SUB FOR TH111747)

1шт.

20D

T115080

BUSHING

4шт.

20E

4184546

BUSHING

(SUB FOR TH111749)

2шт.

20F

4067719

PIVOT

(SUB FOR TH102410)

1шт.

20G

4184724

STOP

(SUB FOR TH111750)

1шт.

21

TH102446

SEAL

(I.D. 80 MM - O.D. 95 MM)

2шт.

22

9058284

LINK

(SUB FOR AT120750) INCLUDES BUSHINGS

2шт.

22A

LINK

(SUB AT120750)

1шт.

22B

4167593

BUSHING

(SUB FOR T115082)

1шт.

22C

T115080

BUSHING

1шт.

23

9022031

LINK

(SUB FOR AT120757)

1шт.

23A

LINK

1шт.

23B

4057477

BUSHING

(SUB FOR T115084)

1шт.

24

9022030

LINK

(SUB FOR AT120758)

1шт.

24A

LINK

1шт.

24B

4057477

BUSHING

(SUB FOR T115084)

1шт.

25

4167590

SPACER

(SUB FOR T115086)

1шт.

26

M221602

CAP SCREW

(SUB FOR TH111751)

1шт.

27

14M7276

NUT

M16

2шт.

28

TH111752

PIN FASTENER

1шт.

29

19M8503

CAP SCREW

M20 X 160

1шт.

30

14M7277

NUT

M20

2шт.

31

J21017

WASHER

(SUB FOR TH111753)

2шт.

32

T115088

PIN

1шт.

33

4066923

O-RING

(SUB FOR AT121233)

4шт.

34

T115089

PIN

1шт.

35

4197031

BUSHING

(SUB FOR TH110546)

1шт.

36

4057479

WASHER

(SUB FOR T115090)

1шт.

37

4082194

SEAL

(SUB FOR AT120759)

4шт.

38

T115091

PIN

1шт.

39

4082194

SEAL

(SUB FOR AT120759)

2шт.

40

T115092

BUSHING

3шт.

41

T115093

PIN

2шт.

42

4065689

PIN FASTENER

(SUB FOR TH100625)

4шт.

43

4065688

RETAINER

(SUB FOR TH100624)

4шт.
