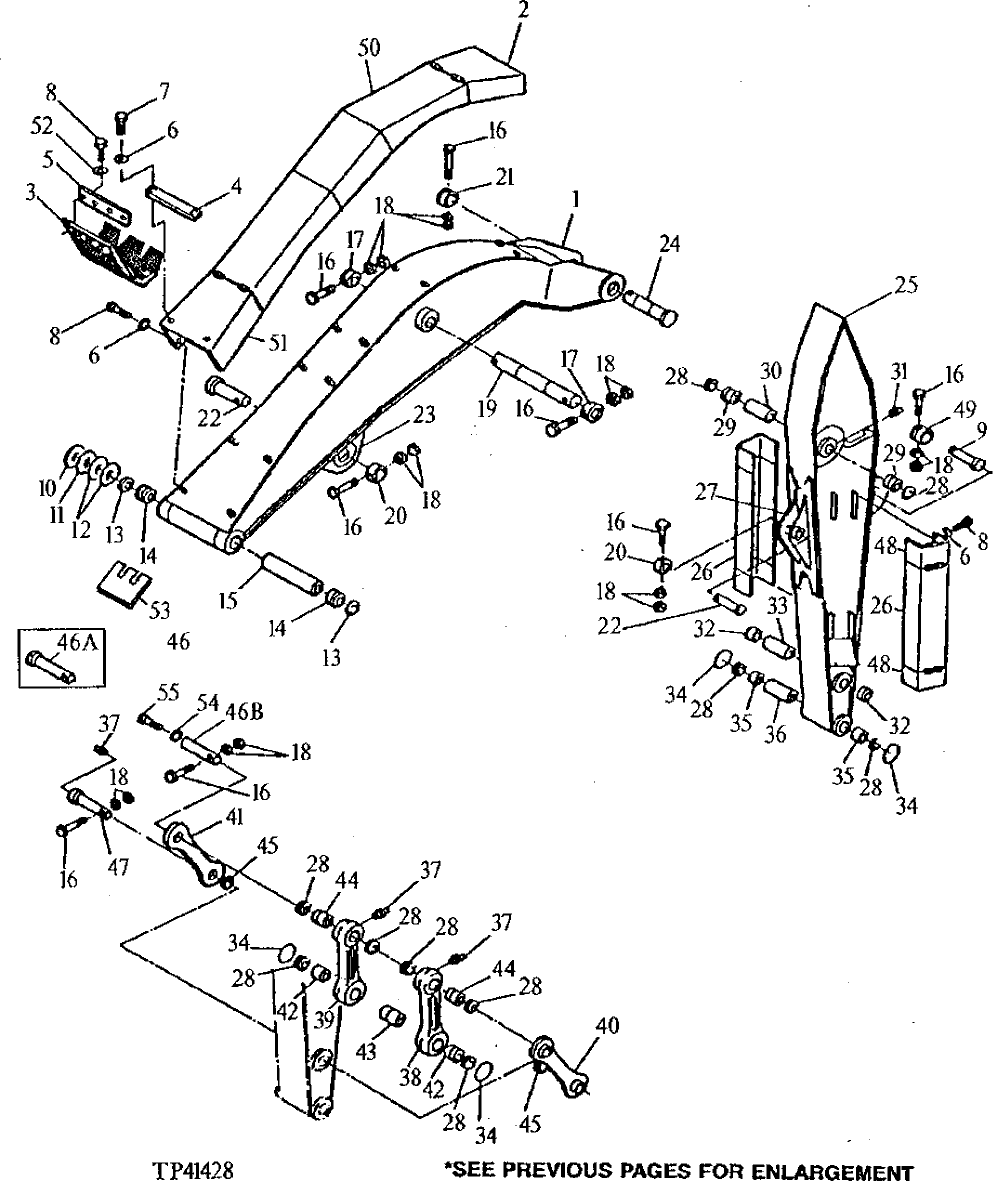

Запчасти John Deere 90D 10 - ARM, BOOM, HOSE GUARDS AND PIVOT PINS 3340 - EXCAVATOR 33

1

4D-14777-13

EXCAVATOR BOOM

(B)

1шт.

2

4D-14778-4

GUARD

(B)

1шт.

3

AT108828

GUARD

1шт.

4

4D-14778-19

GUARD

(B)

1шт.

5

4D-14823-19

PLATE

(B)

1шт.

6

12H301

LOCK WASHER

1/2"

22шт.

7

19H2735

CAP SCREW

1/2" X 2"

2шт.

8

19H2472

CAP SCREW

1/2" X 1"

24шт.

9

TH109797

PIN

1шт.

10

4144511

WASHER

(SUB FOR TH102421)

1шт.

11

4144512

WASHER

(SUB FOR TH102422)

1шт.

12

4144513

WASHER

(SUB FOR TH102423)

2шт.

13

TH102411

SEAL

2шт.

14

3039752

BUSHING

(SUB FOR TH109794)

2шт.

15

4144319

SPACER

(SUB FOR TH102408)

1шт.

16

19M8503

CAP SCREW

M20 X 160

8шт.

17

TH102409

BUSHING

2шт.

18

14M7277

NUT

M20

16шт.

19

TH109795

DOWEL PIN

1шт.

20

4067719

PIVOT

(SUB FOR TH102410)

2шт.

21

TH102409

BUSHING

1шт.

22

4D-14777-12

DOWEL PIN

(B)

2шт.

23

4D-14777-10

LUG

(B)

1шт.

24

TH109796

DOWEL PIN

1шт.

25

4D-14777-5

ARM

(B)

1шт.

26

4D-14478-13

GUARD

(B)

2шт.

27

4D-14777-11

LUG

(B)

1шт.

28

TH102445

SEAL

(I.D. 100 MM - O.D. 115 MM)

10шт.

29

3054062

BUSHING

(SUB FOR TH109801) (USE IF AVAILABLE)

2шт.

3054062

BUSHING

(SUB FOR TH109801) (SUB FOR AT154689)

2шт.

30

4144320

SPACER

(SUB FOR TH102428)

1шт.

31

T116334

LUBRICATION FITTING

(SUB FOR TH100075)

1шт.

32

TH109803

BUSHING

2шт.

33

4144380

SPACER

(SUB FOR TH102432)

1шт.

34

4089028

O-RING

(SUB FOR TH102444 OR T200732)

4шт.

35

TH109802

BUSHING

2шт.

36

4144379

SPACER

(SUB FOR TH102430)

1шт.

37

TH100074

LUBRICATION FITTING

3шт.

38

8038561

LINK

(SUB FOR TH109804) (INCLUDES TH109806 AND TH109807 BUSHINGS)

1шт.

39

8038562

LINK

(SUB FOR TH109808) (INCLUDES TH109806 AND TH109807 BUSHINGS)

1шт.

40

8026536

LINK

(SUB FOR TH102437)

1шт.

41

3026344

LINK

(SUB FOR TH102438)

1шт.

42

TH109807

BUSHING

2шт.

43

4155351

PIN FASTENER

(SUB FOR TH102439)

1шт.

44

TH109806

BUSHING

2шт.

45

TH102446

SEAL

(I.D. 80 MM - O.D. 95 MM)

2шт.

46A

PIN

( 3038090 NO LONGER AVAILABLE) (SUB T138885, ALONG WITH T138902 AND 19M8029)

1шт.

46B

T138885

PIN

1шт.

47

TH109810

PIN

1шт.

48

4D-14778-14

GUARD

(B) HINGED ENDS

4шт.

49

4067719

PIVOT

(SUB FOR TH102410)

1шт.

50

4D-14778-2

GUARD

(B)

1шт.

51

4D-14778-2

GUARD

(B)

1шт.

52

545-072-005

WASHER

(B) 0.5

4шт.

53

AT108829

GUARD

1шт.

54

T138902

BUSHING

1шт.

55

19M8029

CAP SCREW

M16 X 30, (SUB FOR 19M7608)

1шт.
