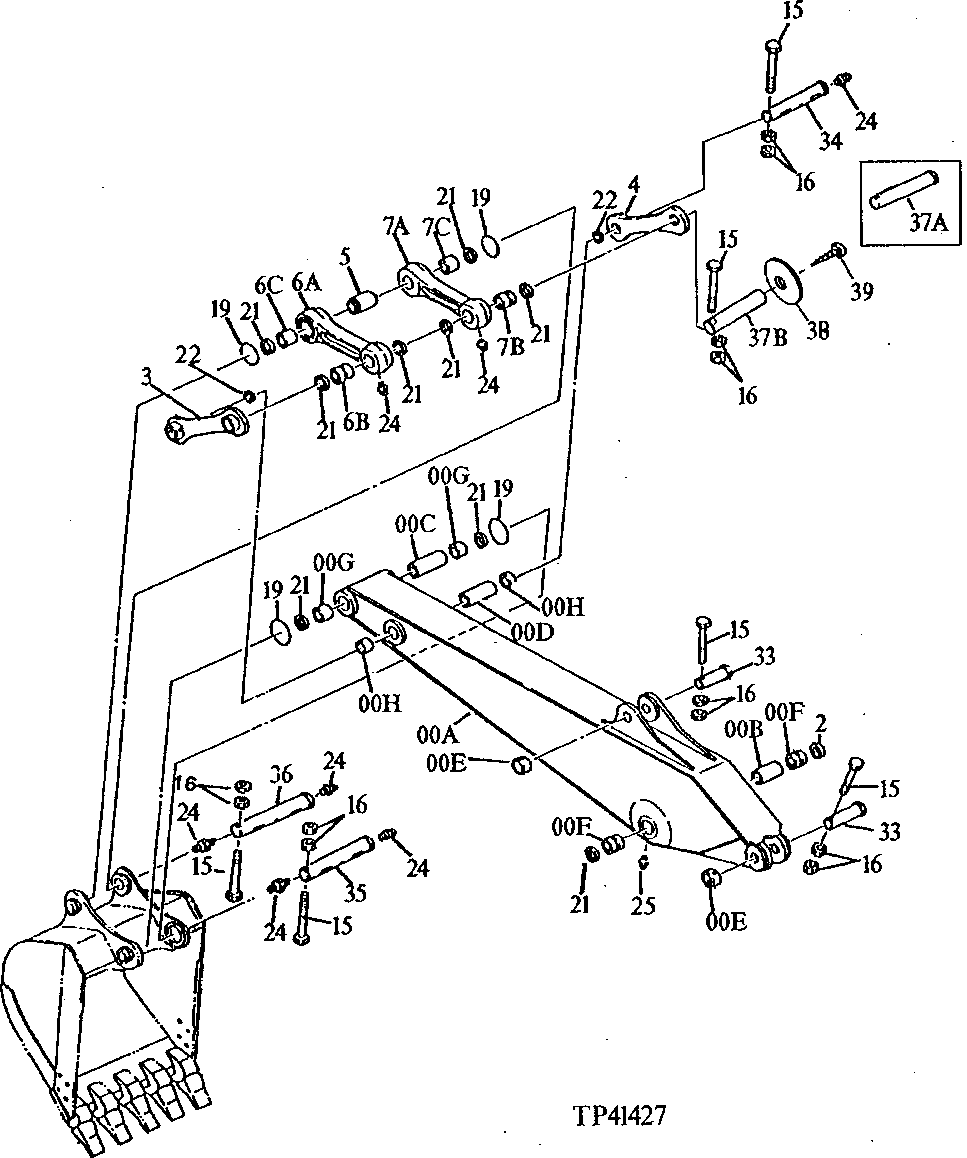

Запчасти John Deere 90D 4 - DIPPERSTICK ARM 3340 - EXCAVATOR 33

0A

7018138

ARM

(SUB FOR TH108186) INCLUDES 0A THROUGH 0H

1шт.

0B

4144320

SPACER

(SUB FOR TH102428)

1шт.

0C

4144379

SPACER

(SUB FOR TH102430)

1шт.

0D

4144380

SPACER

(SUB FOR TH102432)

1шт.

0E

4067719

PIVOT

(SUB FOR TH102410)

2шт.

0F

3054062

BUSHING

(SUB FOR TH109801) (USE IF AVAILABLE)

2шт.

3054062

BUSHING

(SUB FOR TH109801) (SUB FOR AT154689)

2шт.

0G

TH109802

BUSHING

2шт.

0H

TH109803

BUSHING

2шт.

3

8026536

LINK

(SUB FOR TH102437)

1шт.

4

3026344

LINK

(SUB FOR TH102438)

1шт.

5

4155351

PIN FASTENER

(SUB FOR TH102439)

1шт.

6A

8038561

LINK

(SUB FOR TH109804) INCLUDES KEYS 6A THROUGH 6C

1шт.

6B

TH109806

BUSHING

1шт.

6C

TH109807

BUSHING

1шт.

7A

8038562

LINK

(SUB FOR TH109808) INCLUDES KEYS 7A THROUGH 7C

1шт.

7B

TH109806

BUSHING

1шт.

7C

TH109807

BUSHING

1шт.

15

19M8503

CAP SCREW

M20 X 160

6шт.

16

14M7277

NUT

M20

12шт.

19

4089028

O-RING

(SUB FOR TH102444 OR T200732)

4шт.

21

TH102445

SEAL

(I.D. 100 MM - O.D. 115 MM)

10шт.

22

TH102446

SEAL

(I.D. 80 MM - O.D. 95 MM)

2шт.

24

TH100074

LUBRICATION FITTING

7шт.

25

T116334

LUBRICATION FITTING

(SUB FOR TH100075)

2шт.

33

TH109797

PIN

2шт.

34

TH109810

PIN

1шт.

35

TH110235

PIN FASTENER

(SUB FOR TH109811)

1шт.

36

TH110236

PIN FASTENER

(SUB FOR TH109812)

1шт.

37A

PIN

( 3038090 NO LONGER AVAILABLE) (SUB T138885, ALONG WITH T138902 AND 19M8029)

1шт.

37B

T138885

PIN

1шт.

38

T138902

BUSHING

1шт.

39

19M8029

CAP SCREW

M16 X 30, (SUB FOR 19M7608)

1шт.
