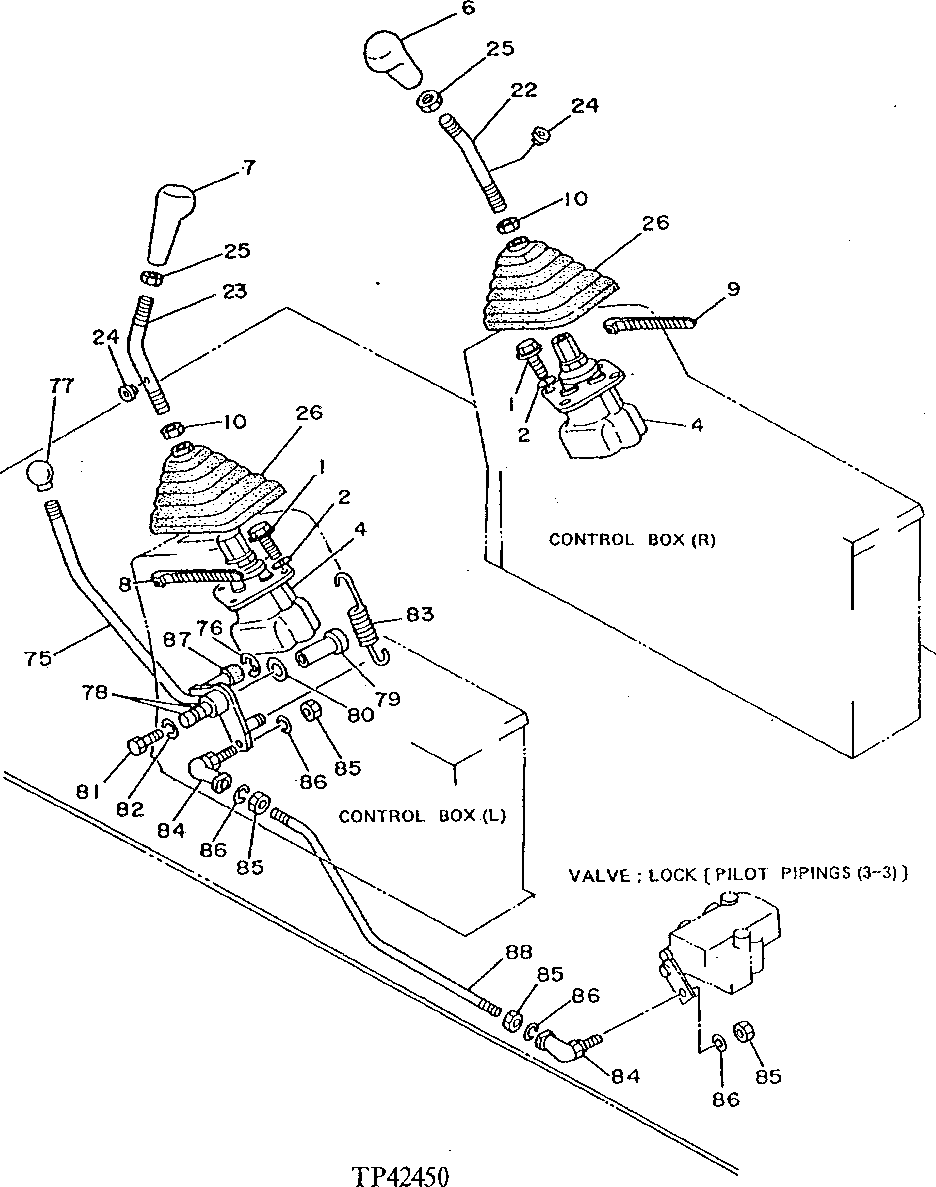

Запчасти John Deere 90D 2 - CONTROL LEVER 3315 - EXCAVATOR 33

1

19M8425

CAP SCREW

M6 X 16

8шт.

2

12M7006

LOCK WASHER

6 MM

8шт.

4

AT189840

HYDR./PILOT CONTROL VALVE

( TH111710 NO LONGER AVAILABLE) (VALVE SERIAL NUMBER) (PILOT) (USE AT131277 IF AVAILABLE) (SUB FOR TH108366 OR AT131277)

2шт.

AT189840

HYDR./PILOT CONTROL VALVE

(VALVE SERIAL NUMBER) (PILOT) (USE AT131277 IF AVAILABLE) (SUB FOR AT130916 OR AT131277)

2шт.

6

4196693

GRIP

(SUB FOR TH108367)

1шт.

4240686

GRIP

(SUB FOR AT126858)

1шт.

7

4196694

GRIP

(SUB FOR TH108368) INCLUDES HORN SWITCH

1шт.

8

H77698

TIE BAND

(SUB FOR TH102001 OR M88199)

1шт.

9

H77698

TIE BAND

(SUB FOR M88199)

1шт.

10

14M7141

NUT

M14

2шт.

22

8038794

LEVER

(SUB FOR TH111497) (SUB FOR TH108370)

1шт.

23

8038794

LEVER

(SUB FOR TH108369) (SUB FOR TH108370)

1шт.

24

487081

GROMMET

(SUB FOR TH108081)

2шт.

25

4201107

NUT

(SUB FOR TH108372)

2шт.

26

2024493

BOOT

(SUB FOR TH108373)

2шт.

75

8039825

LEVER

(SUB FOR TH108389) (SUB FOR AT114995)

1шт.

76

40M7088

SNAP RING

(SUB FOR TH108390)

1шт.

77

4143169

KNOB

(SUB FOR TH100268)

1шт.

78

TH100248

NEEDLE BEARING

2шт.

79

4191973

PIN

(SUB FOR TH108391)

1шт.

80

24M7053

WASHER

17 X 30 X 3 MM

1шт.

81

19M8451

CAP SCREW

M10 X 14, (SUB FOR TH100270)

1шт.

82

24M7028

WASHER

10.500 X 20 X 2 MM

1шт.

83

4189184

EXTENSION SPRING

(SUB FOR TH108392)

1шт.

84

T110021

BALL JOINT SOCKET

(SUB FOR TH108394)

2шт.

85

14M7273

NUT

M8

4шт.

86

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.

87

4203482

BUSHING

(SUB FOR TH108395)

1шт.

88

4205617

ROD

(SUB FOR TH108396)

1шт.
