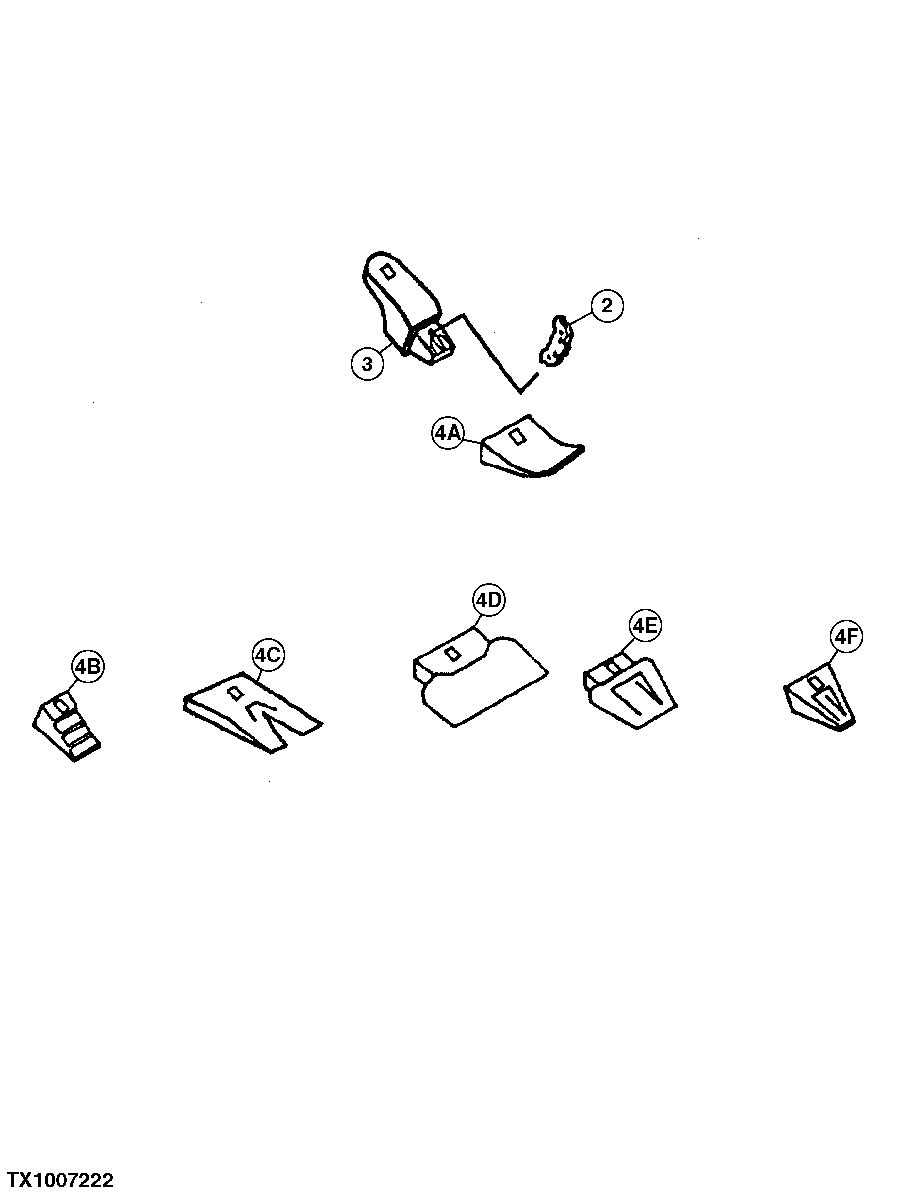

Запчасти John Deere 90D 30 - HEAVY DUTY HIGH CAPACITY BUCKET TOOTH ASSEMBLY 3302 - EXCAVATOR 33

1A

TOOTH

( AT163538 NLA) (FANGGS)

1шт.

1B

TOOTH

( AT163539 NLA) (STANDARD)

1шт.

1C

TOOTH

( AT163543 NLA) (TWIN TIGER)

1шт.

1D

TOOTH

( AT163542 NLA) (FLARE)

1шт.

1E

TOOTH

( AT163541 NLA) (ABRASION PANEL)

1шт.

1F

TOOTH

( AT163540 NLA) (TIGER)

1шт.

1G

TOOTH

( AT163544 NLA) (ESCO STANDARD) (NOT ILLUSTRATED)

1шт.

1H

TOOTH

( AT163547 NLA) (ESCO TWIN TIGER) (NOT ILLUSTRATED)

1шт.

1I

TOOTH

( AT163546 NLA) (ESCO FLARE) (NOT ILLUSTRATED)

1шт.

1J

TOOTH

( AT163545 NLA) (ESCO TIGER) (NOT ILLUSTRATED)

1шт.

1K

TOOTH

( AT167192 NLA) (CATERPILLAR REPLACEMENT FANGGS) (NOT ILLUSTRATED)

1шт.

1L

TOOTH

( AT167194 NLA) (CATERPILLAR REPLACEMENT STANDARD) (NOT ILLUSTRATED)

1шт.

2

TP160

PIN

(SUB FOR TP160L, THIS APPLICATION)

1шт.

EX27VPN

PIN

(ESCO VERTALOK) (NOT ILLUSTRATED - SEE ESCO TOOTH PAGE)

1шт.

T9J2358

PIN FASTENER

(CATERPILLAR REPLACEMENT) (NOT ILLUSTRATED)

1шт.

3

T153X310

SHANK

1шт.

EX5850-27V

BUCKET TOOTH ADAPTER

(ESCO VERTALOK) (NOT ILLUSTRATED - SEE ESCO TOOTH PAGE)

1шт.

T6I6354

ADAPTER FITTING

(CATERPILLAR REPLACEMENT) (NOT ILLUSTRATED)

1шт.

4A

TF310

TOOTH

1шт.

4B

TX310

TOOTH

1шт.

4C

TX310WT

TOOTH

1шт.

4D

TX310F

TOOTH

1шт.

4E

TX310AP

TOOTH

1шт.

4F

TT310

TOOTH

1шт.

4G

EX27SYL

TOOTH

(ESCO STANDARD) (NOT ILLUSTRATED - SEE ESCO TOOTH PAGE) (SUB FOR EX5824-37, ALONG WITH EX37VPL AND EX37VPN)

1шт.

4H

EX27TVIP

TOOTH

(ESCO TWIN TIGER) (NOT ILLUSTRATED - SEE ESCO TOOTH PAGE)

1шт.

4I

EX27S6F

TOOTH

(ESCO FLARE) (NOT ILLUSTRATED - SEE ESCO TOOTH PAGE)

1шт.

4J

EX27VIP

TOOTH

(ESCO TIGER) (NOT ILLUSTRATED - SEE ESCO TOOTH PAGE)

1шт.

4K

TF1U3352D

TOOTH

(CATERPILLAR REPLACEMENT FANGGS) (NOT ILLUSTRATED)

1шт.

4L

TT1U3352

TOOTH

(CATERPILLAR REPLACEMENT STANDARD) (NOT ILLUSTRATED)

1шт.

5

EX27VPL

PLUG

(NOT ILLUSTRATED - SEE ESCO TOOTH PAGE)

1шт.

T3G9549

RETAINER

(CATERPILLAR REPLACEMENT) (NOT ILLUSTRATED)

1шт.
