Запчасти John Deere 90D 26 - GENERAL PURPOSE BUCKET TOOTH ASSEMBLY 3302 - EXCAVATOR 33

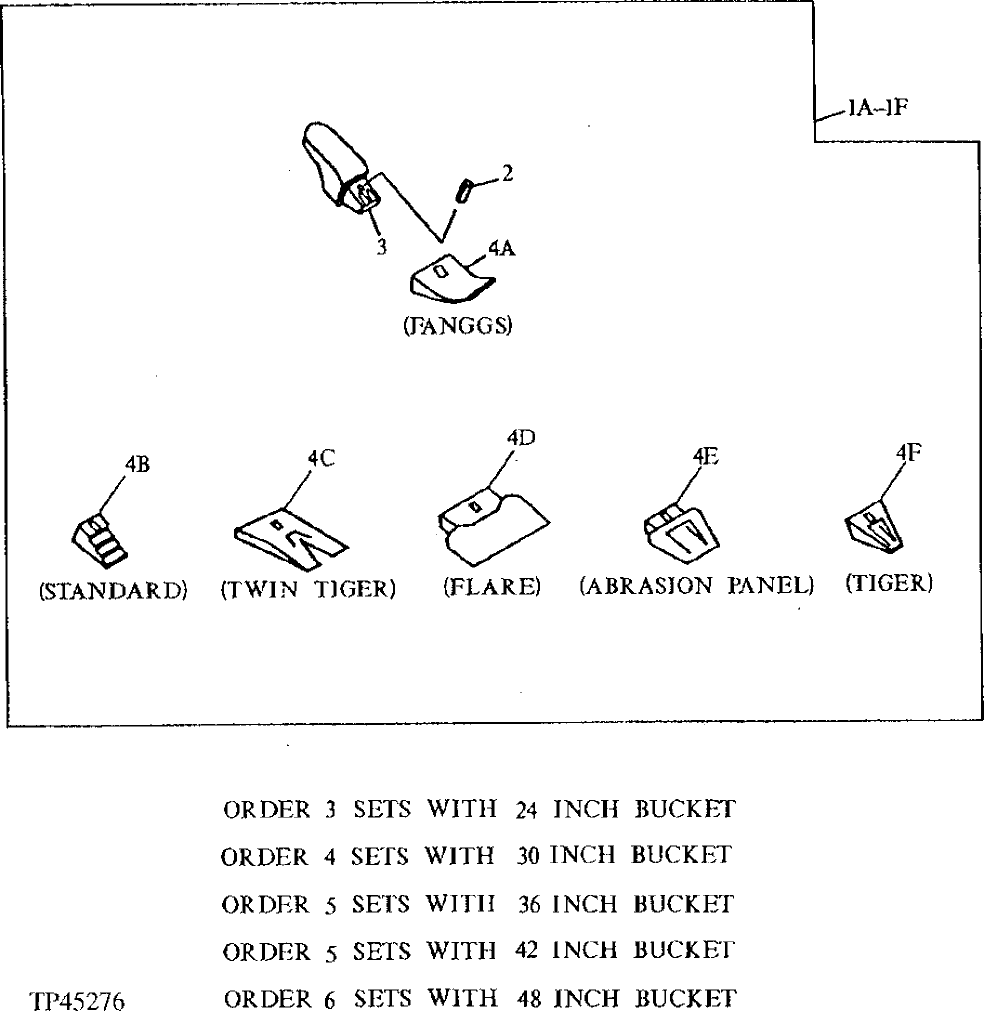

Схема запчастей John Deere 90D - 26 - GENERAL PURPOSE BUCKET TOOTH ASSEMBLY 3302 - EXCAVATOR 33

Артикул

Название

Примечание

Количество

4A

TF310

TOOTH

(ALSO ORDER TP160L) (FANGGS 310)

1шт.

TF330

TOOTH

(FANGGS 330)

1шт.

4B

TX310

TOOTH

(ALSO ORDER TP160L) (STANDARD 310)

1шт.

TX330

TOOTH

(STANDARD 330)

1шт.

4C

TX310WT

TOOTH

(ALSO ORDER TP160L) (TWIN TIGER 310)

1шт.

TX330WT

TOOTH

(TWIN TIGER 330)

1шт.

4D

TX310F

TOOTH

(ALSO ORDER TP160L)

1шт.

4E

TX310AP

TOOTH

(ALSO ORDER TP160L)

1шт.

4F

TT310

TOOTH

(ALSO ORDER TP160L) (TIGER 310)

1шт.

TT330

TOOTH

(TIGER 330)

1шт.

4G

EX27SYL

TOOTH

(ESCO STANDARD) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

4H

EX27TVIP

TOOTH

(ESCO TWIN TIGER) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

4I

EX27S6F

TOOTH

(ESCO FLARE) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

4J

EX27VIP

TOOTH

(ESCO TIGER) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

4K

TF1U3352D

TOOTH

(CATERPILLAR REPLACEMENT FANGGS) (NOT ILLUSTRATED)

1шт.

4L

T1U3352

TOOTH

(CATERPILLAR REPLACEMENT STANDARD) (NOT ILLUSTRATED)

1шт.

4M

TX1U3352WT

TOOTH

(CATERPILLAR REPLACEMENT TWIN TIGER) (NOT ILLUSTRATED)

1шт.

4N

TT1U3352

TOOTH

(CATERPILLAR REPLACEMENT TIGER) (NOT ILLUSTRATED)

1шт.

5

T3G9549

RETAINER

(CATERPILLAR REPLACEMENT) (NOT ILLUSTRATED)

1шт.

6

EX27VPL

PLUG

(NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

Выбрано товаров: 20
