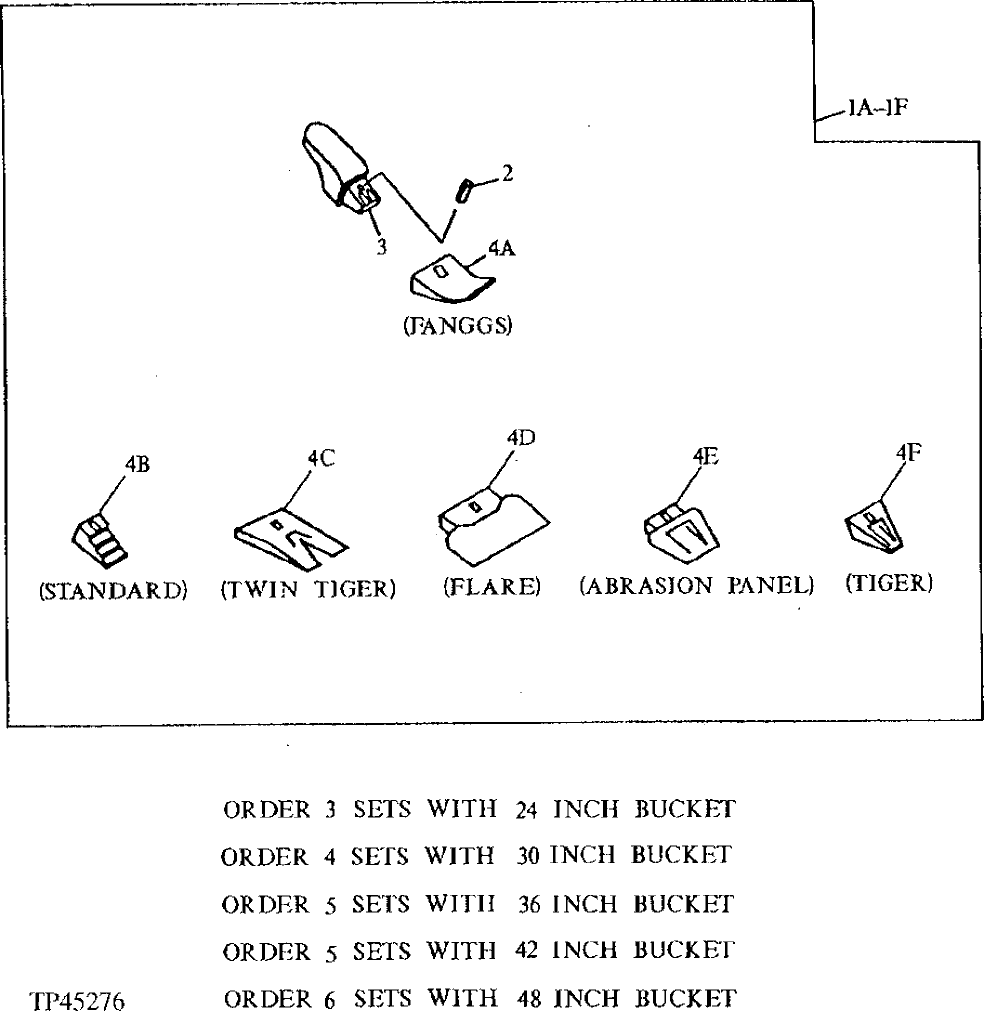

Запчасти John Deere 90D 24 - GENERAL PURPOSE BUCKET TOOTH ASSEMBLY 3302 - EXCAVATOR 33

1A

TOOTH

( AT163538 NLA) (FANGGS 310 TOOTH ASSEMBLY)

1шт.

TOOTH

( AT178530 NLA) (FANGGS 330 TOOTH ASSEMBLY)

1шт.

1B

TOOTH

( AT163539 NLA) (STANDARD 310 TOOTH ASSEMBLY)

1шт.

TOOTH

( AT178532 NLA) (STANDARD 330 TOOTH ASSEMBLY)

1шт.

1C

TOOTH

( AT163543 NLA) (TWIN TIGER 310 TOOTH ASSEMBLY)

1шт.

TOOTH

( AT178536 NLA) (TWIN TIGER 330 TOOTH ASSEMBLY)

1шт.

1D

TOOTH

( AT163542 NLA) (FLARE)

1шт.

1E

TOOTH

( AT163541 NLA) (ABRASION PANEL)

1шт.

1F

TOOTH

( AT163540 NLA) (TIGER 310 TOOTH ASSEMBLY)

1шт.

TOOTH

( AT178534 NLA) (TIGER 330 TOOTH ASSEMBLY)

1шт.

1G

TOOTH

( AT163544 NLA) (ESCO STANDARD TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1H

TOOTH

( AT163547 NLA) (ESCO TWIN TIGER TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1I

TOOTH

( AT163546 NLA) (ESCO FLARE TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1J

TOOTH

( AT163545 NLA) (ESCO TIGER TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1K

TOOTH

( AT167192 NLA) (CATERPILLAR REPLACEMENT FANGGS TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1L

TOOTH

( AT167193 NLA) (CATERPILLAR REPLACEMENT STANDARD TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1M

TOOTH

( AT167195 NLA) (CATERPILLAR REPLACEMENT TWIN TIGER TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

1N

TOOTH

( AT167194 NLA) (CATERPILLAR REPLACEMENT TIGER TOOTH ASSEMBLY) (NOT ILLUSTRATED)

1шт.

2

TP160

PIN

(SUB FOR TP160L, THIS APPLICATION) (USE WITH 310 TOOTH ASSEMBLY)

1шт.

TK330

PIN

(USE WITH 330 TOOTH ASSEMBLY)

1шт.

EX27VPN

PIN

(ESCO) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

T9J2358

PIN FASTENER

(CATERPILLAR REPLACEMENT) (NOT ILLUSTRATED)

1шт.

3

T153X310

BUCKET TOOTH ADAPTER

(USE WITH 310 TOOTH ASSEMBLY)

1шт.

T158X330

BUCKET TOOTH ADAPTER

(WITH WITH 330 TOOTH ASSEMBLY)

1шт.

EX5850-27V

BUCKET TOOTH ADAPTER

(ESCO) (NOT ILLUSTRATED ON THIS PAGE - SEE ESCO TOOTH PAGE)

1шт.

T3G8354

BUCKET TOOTH ADAPTER

(CATERPILLAR REPLACEMENT) (NOT ILLUSTRATED)

1шт.
