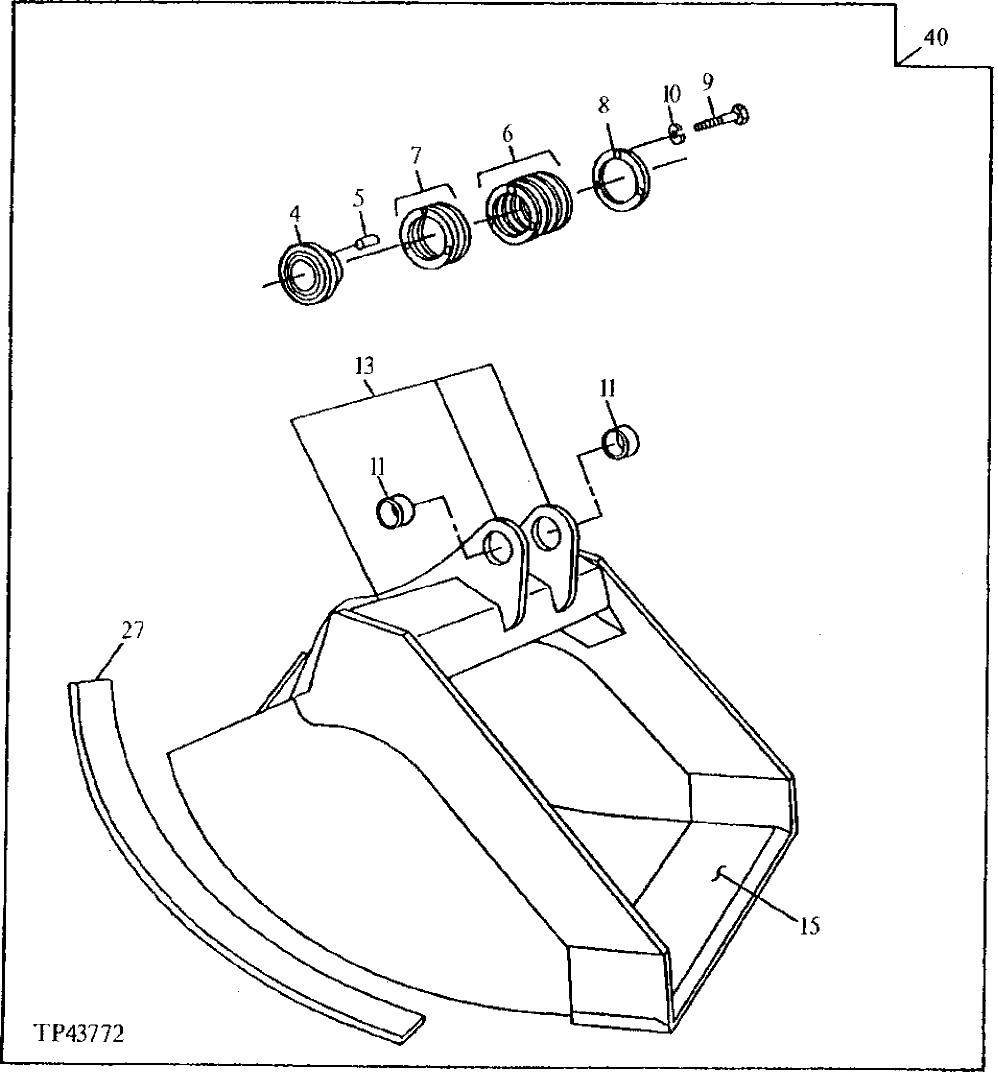

Запчасти John Deere 90D 18 - BUCKET 3302 - EXCAVATOR 33

4

AT131084

BUSHING

1шт.

5

R48685

DOWEL PIN

1шт.

6

TH102460

WASHER

(1.0 MM)

6шт.

7

TH102461

SHIM

(0.5 MM)

2шт.

8

TH102463

PLATE

1шт.

9

19H2706

CAP SCREW

5/8" X 2"

3шт.

10

12H294

LOCK WASHER

5/8"

3шт.

11

TH102409

BUSHING

(USE WITH AT160745, AT160746 OR AT332717)

2шт.

TH108649

BUSHING

(USE WITH AT160757 BUCKET OR AT160685 BUCKET)

2шт.

13

C610778

PIVOT

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

15

CUTTING EDGE

(CUT TO LENGTH FROM AT131089 BULK MATERIAL FOR AT160745, AT160746 OR AT332717 BUCKETS)

1шт.

CUTTING EDGE

(CUT TO LENGTH FROM AT131088 BULK MATERIAL FOR AT160757 OR AT160685 BUCKETS)

1шт.

27

300292

BAR

(F) (WEAR STRIP)

4шт.

40

EXCAVATOR BUCKET

( AT160745 NLA) (SUB AT332717) WHOLEGOODS (60 INCH - 1.34 CUBIC YARD)

1шт.

AT160746

EXCAVATOR BUCKET

WHOLEGOODS (72 INCH - 1.66 CUBIC YARD)

1шт.

AT160685

EXCAVATOR BUCKET

WHOLEGOODS (60 INCH - .75 CUBIC YARD) (LONG FRONT)

1шт.

EXCAVATOR BUCKET

( AT160757 NO LONGER AVAILABLE) (60 INCH - .90 CUBIC YARD) (LONG FRONT)

1шт.
