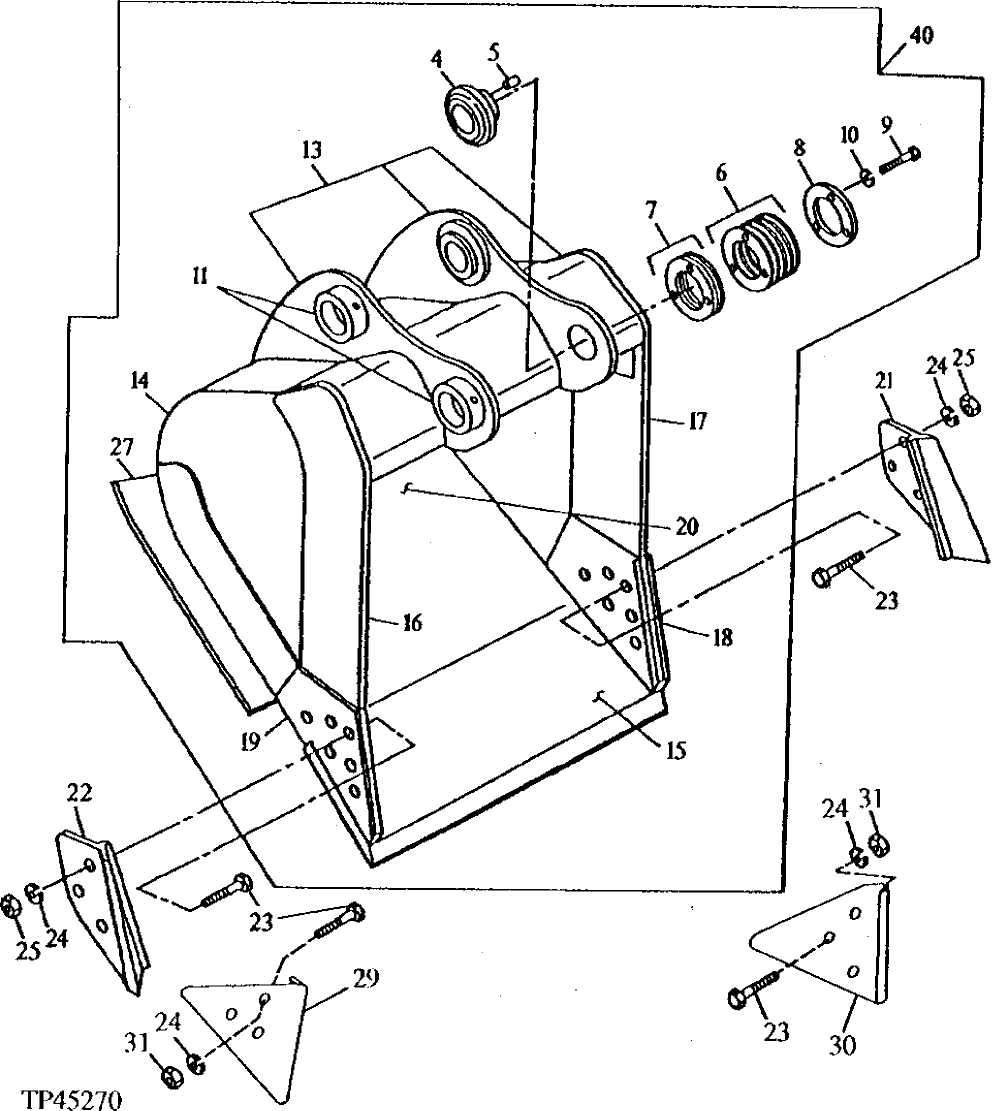

Запчасти John Deere 90D 16 - BUCKET 3302 - EXCAVATOR 33
№
Артикул
Название
Примечание
Количество
4
AT131084
BUSHING
1шт.
5
R48685
DOWEL PIN
1шт.
6
TH102460
WASHER
(1 MM)
6шт.
7
TH102461
SHIM
(.5 MM)
2шт.
8
TH102463
PLATE
1шт.
9
19H2706
CAP SCREW
3шт.
10
12H294
LOCK WASHER
3шт.
11
TH102409
BUSHING
2шт.
13
C603692
PIVOT
(F) (BUCKET EAR BLANK ASSEMBLY)
1шт.
14
304371
PLATE
(F) (RIGHT AND LEFT SIDE)
2шт.
15
AT131097
CUTTING EDGE
(CUT TO LENGTH) (72 INCHES)
1шт.
T154189
DURA-MAX TM CUTTING EDGE
(CUT TO LENGTH) (42 INCHES)
1шт.
T154188
DURA-MAX TM CUTTING EDGE
(CUT TO LENGTH) (36 INCHES)
1шт.
16
304368
VERTICAL CUTTER
(F) (UPPER RIGHT SIDE CUTTER)
1шт.
17
304367
VERTICAL CUTTER
(F) (UPPER LEFT SIDE CUTTER)
1шт.
18
304369
VERTICAL CUTTER
(F) (LEFT SIDE CUTTER INSERT)
1шт.
19
304370
VERTICAL CUTTER
(F) (RIGHT SIDE CUTTER INSERT)
1шт.
20
603868
MOLDBOARD
(F) (30 INCH)
1шт.
603869
MOLDBOARD
(F) (36 INCH)
1шт.
603870
MOLDBOARD
(F) (42 INCH)
1шт.
21
CUTTING EDGE
(K) (SUB AT131085)
1шт.
22
CUTTING EDGE
(K) (SUB AT131085)
1шт.
23
09H1771
BOLT
(K) 7/8" X 3", (K2)
6шт.
24
12H245
LOCK WASHER
(K) 7/8", (K2)
6шт.
25
14H1077
NUT
(K) 7/8"
6шт.
27
603873
BAR
(F) (DOUBLE BOTTOM WEAR BAR - 30 INCH BUCKET)
1шт.
603874
BAR
(F) (DOUBLE BOTTOM WEAR BAR - 36 INCH BUCKET)
1шт.
603875
BAR
(F) (DOUBLE BOTTOM WEAR BAR - 42 INCH BUCKET)
1шт.
29
SHROUD
(WEAR SHROUD) (SUB AT167876) (K2)
1шт.
30
SHROUD
(WEAR SHROUD) (SUB AT167876) (K2)
1шт.
31
14H1044
NUT
22.225 MM (7/8") (K2)
6шт.
40
EXCAVATOR BUCKET
(SUB FOR AT131046 OR AT131166) (SUB AT332714) ( AT163645 NLA) (30 INCH - .95 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
1шт.
EXCAVATOR BUCKET
(SUB FOR AT131047 OR AT131167) (SUB AT332715) ( AT163646 NLA) (36 INCH - 1.16 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
1шт.
EXCAVATOR BUCKET
(SUB FOR AT131048 OR AT131168) (SUB AT332716) ( AT163647 NLA) (42 INCH - 1.38 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
1шт.
Выбрано товаров: 34
