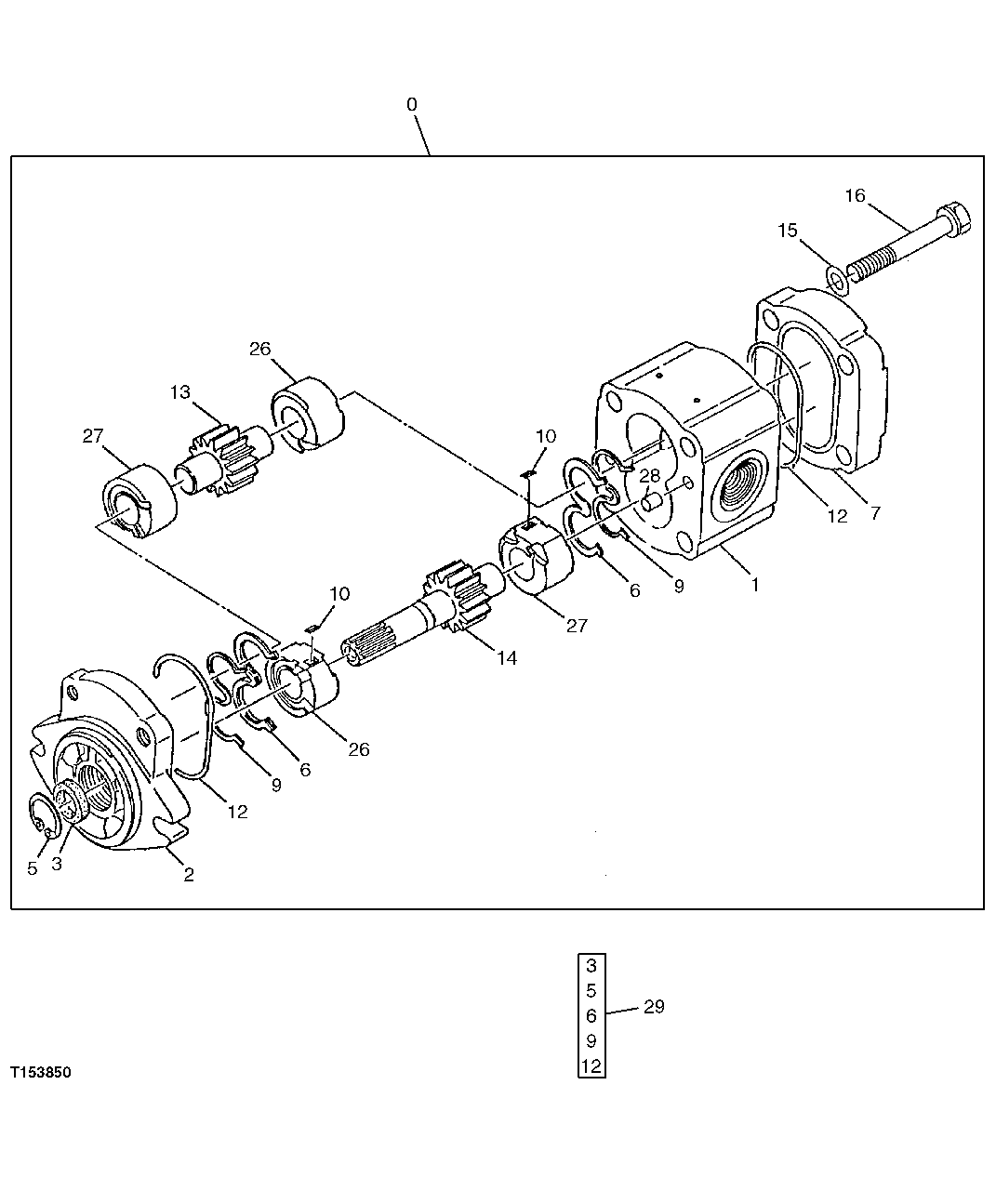

Запчасти John Deere 90D 18 - GEAR PUMP 2160 - MAIN HYDRAULIC SYSTEM 21

0

9217993

PUMP

(SUB FOR TH109457 AND 4181700)

1шт.

1

HOUSING

(SUB TH109457)

1шт.

2

FLANGE

(TH109916 - NO LONGER AVAILABLE)

1шт.

3

0408202

SEAL

(A) (SUB FOR TH109917) (SUB FOR AT153880)

1шт.

5

40M1855

SNAP RING

(A) (SUB FOR TH106364)

1шт.

6

0408207

SEAL KIT

(A) (SUB FOR AT153885)

2шт.

7

COVER

(TH109919 - NO LONGER AVAILABLE)

1шт.

9

BACK-UP RING

(A) (SUB AT153885)

2шт.

10

4206162

KEY

(SUB FOR TH109921)

2шт.

12

O-RING

(A) ( TH109922 NO LONGER AVAILABLE)

2шт.

13

GEAR

(SUB TH109457)

1шт.

14

PARALLEL SHAFT GEAR DRIVE

(SUB TH109457)

1шт.

15

0266736

WASHER

(SUB FOR TH109923) (SUB FOR TH105196)

4шт.

16

19M8093

CAP SCREW

M10 X 100, (SUB FOR TH109924)

4шт.

26

BEARING

(SUB TH109457)

2шт.

27

BEARING

(SUB TH109457)

2шт.

28

4206166

DOWEL PIN

(SUB FOR TH109925)

2шт.

29

0408207

SEAL KIT

(INCLUDES PARTS MARKED (A)) (SUB FOR AT153885)

1шт.
