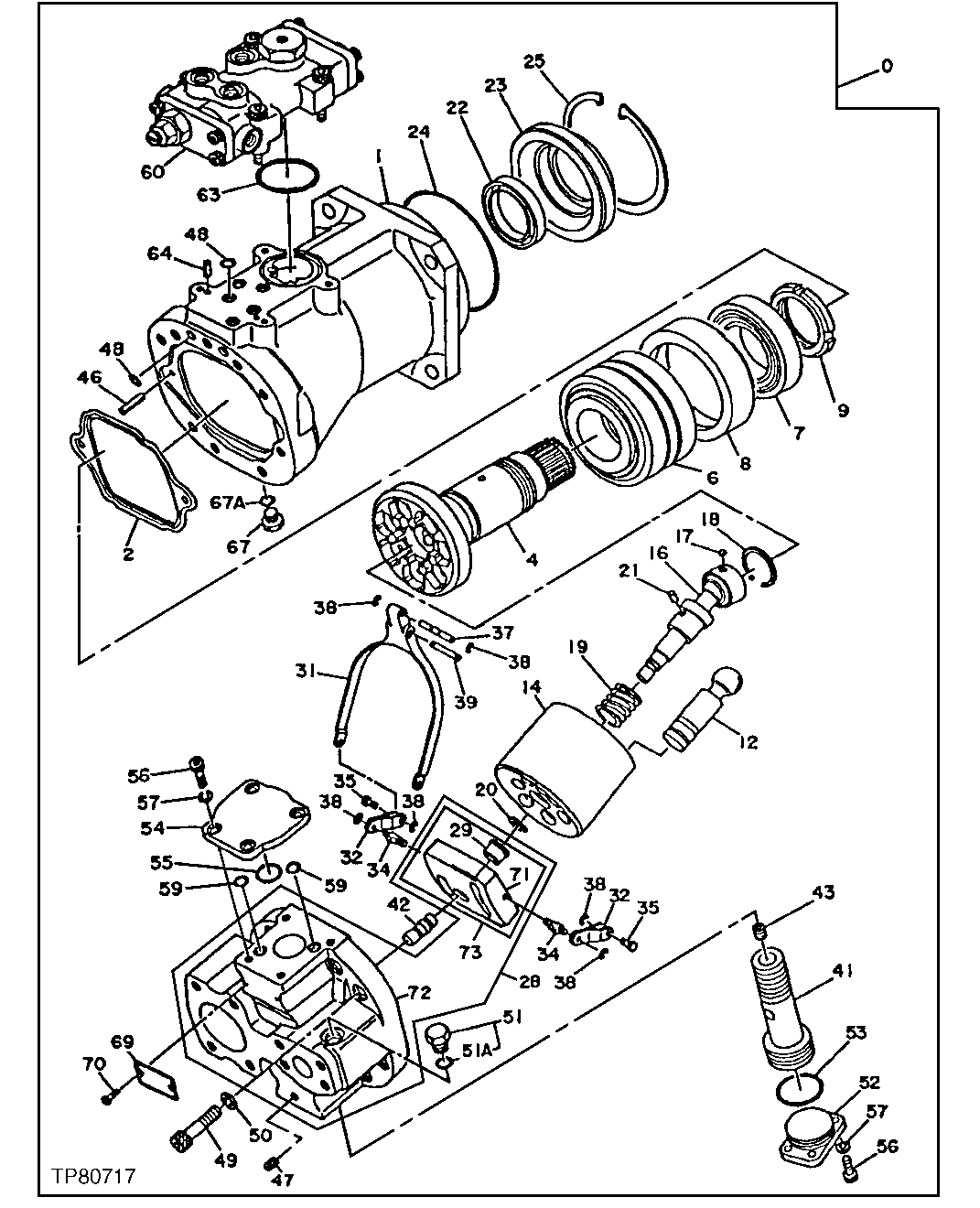

Запчасти John Deere 90D 15A - SINGLE PUMP (CONTINUED) 2160 - MAIN HYDRAULIC SYSTEM 21

50

12M7058

LOCK WASHER

12 MM (0.472") (SUB FOR TH102529) (SUB FOR 12M6138)

8шт.

51

AT318013

DRAIN PLUG

(SUB FOR 4093624) (SUB FOR TH102536)

1шт.

51A

M800650

PACKING

1шт.

52

4179841

COVER

(SUB FOR TH109884)

1шт.

53

A811040

O-RING

39.400 X 3.100 MM (1.551" X 0.122") (SUB FOR TH102992)

1шт.

54

4179842

COVER

(SUB TH110234) (ALSO ORDER (2) CH11560) (SUB FOR TH109885)

1шт.

4201649

STOP

(SUB FOR TH109885) (ALSO ORDER (2) CH11560) (SUB FOR TH110234)

1шт.

55

CH17886

PACKING

(SUB FOR TH109886)

1шт.

56

19M8446

SCREW

M8 X 20

8шт.

57

12M7056

LOCK WASHER

8 MM (0.315") (SUB FOR 12M7065)

8шт.

59

CH11560

PACKING

(SUB FOR TH109883, 4180349)

2шт.

60

9073453

REGULATOR

(SUB FOR TH109462)

1шт.

63

CH17260

PACKING

(SUB FOR TH104978)

1шт.

64

34M3845

SPRING PIN

4 X 10 MM (0.157" X 0.394") (SUB FOR TH109888)

2шт.

67

15M7036

DRAIN PLUG

(SUB FOR 4092534, 4217653, TH109285 OR 0309805) (ALSO ORDER CH11570)

1шт.

67A

CH11570

O-RING

1шт.

69

SERIAL NUMBER PLATE

1шт.

70

37H99

SCREW

2.540 X 6.350 MM (0.100" X 1/4")

2шт.

71

HOUSING

(SUB AT168529)

1шт.

72

1011095

HOUSING

(SUB FOR AT165098)

1шт.

73

9742976

VALVE

(SUB FOR AT168529)

1шт.
