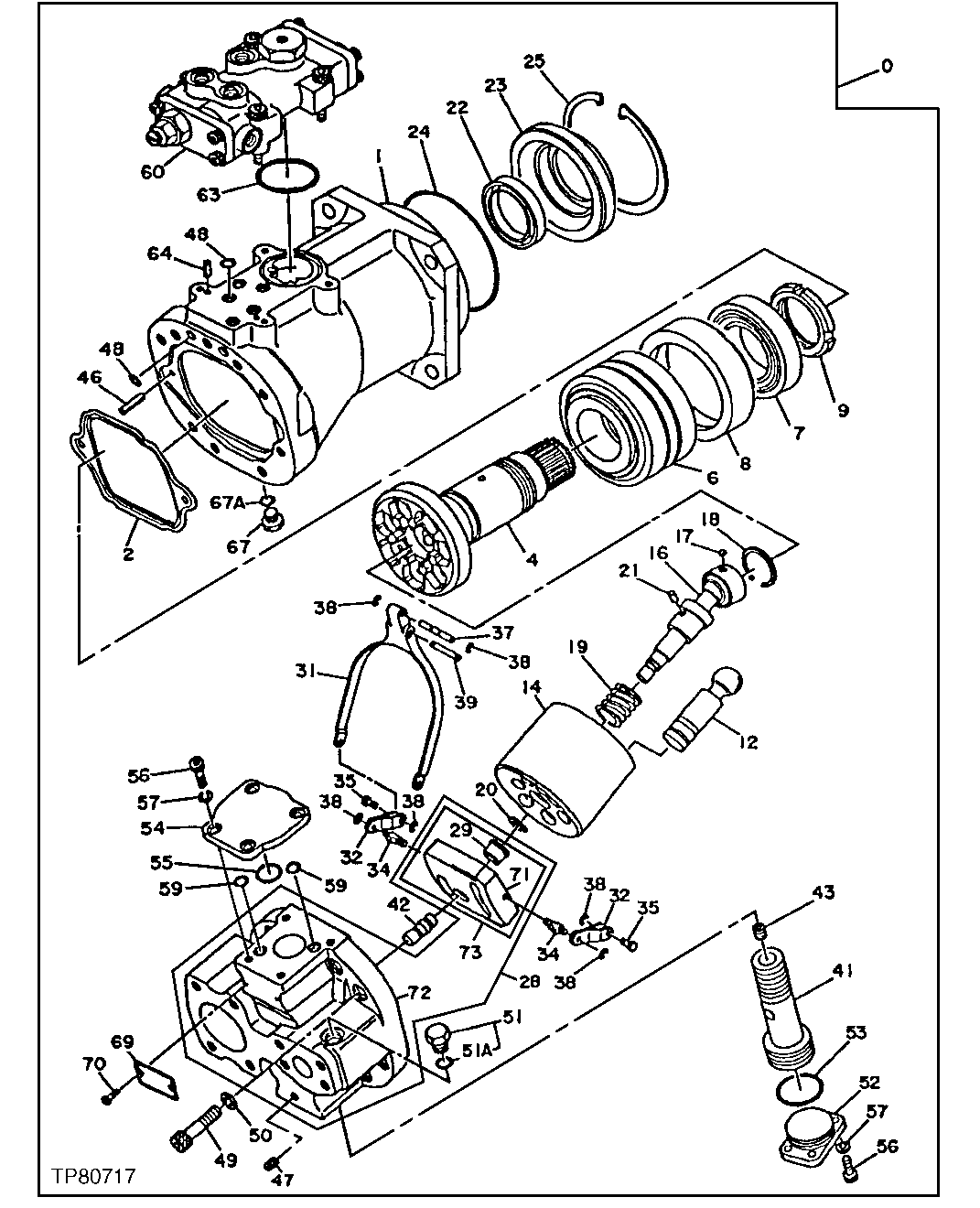

Запчасти John Deere 90D 14 - SINGLE PUMP 2160 - MAIN HYDRAULIC SYSTEM 21

0

AT217330

PUMP

(SUB FOR TH109461) (REMANUFACTURED)

1шт.

1

1014049

HOUSING

(SUB FOR TH109866) (ALSO ORDER TH112242) (SUB FOR TH112241)

1шт.

1014049

HOUSING

(SUB FOR TH112241)

1шт.

2

8044104

PACKING

(SUB FOR TH112242)

1шт.

4

2021677

SHAFT

(SUB FOR TH109867)

1шт.

6

TH109868

TAPERED ROLLER BEARING

1шт.

7

CH16496

TAPERED ROLLER BEARING

(SUB FOR TH109869)

1шт.

8

3033597

SPACER

(SUB FOR TH109870)

1шт.

9

4178173

NUT

M60, (SUB FOR T107755)

1шт.

12

AT131225

PISTON

(USE IF AVAILBLE) (SUB FOR T107762) (SUB AT154837)

7шт.

8050658

PISTON

(SUB FOR T107762 OR AT131225) (SUB FOR AT154837)

7шт.

14

2021642

ROTOR

(SUB FOR T107768)

1шт.

16

8035127

SHAFT

(SUB FOR T107765)

1шт.

17

L38718

BALL

6 MM (0.236")

1шт.

18

4184778

SNAP RING

(SUB FOR T107764)

1шт.

19

4179181

COMPRESSION SPRING

(SUB FOR T107767)

1шт.

20

4188857

SNAP RING

(SUB FOR T107769)

1шт.

21

4198956

PIN FASTENER

5 X 10 MM (0.197" X 0.394") (SUB FOR T107766)

1шт.

22

T225266

SEAL

(SUB FOR T107759, TH112064, AT213847 OR 4333170)

1шт.

23

4173923

COVER

(SUB FOR T107758)

1шт.

24

4178393

O-RING

129.400 X 3.100 MM (5.094" X 0.122") (SUB FOR T107760)

1шт.

25

40M7231

SNAP RING

1шт.

28

HOUSING

( TH110233 NO LONGER AVAILABLE FOR SERVICE)

1шт.

29

4177926

BUSHING

(SUB FOR T107779)

1шт.

31

3037675

LINK

(SUB FOR TH109872)

1шт.

32

9724756

LEVER

(SUB FOR TH109873)

2шт.

34

4179179

DOWEL PIN

(SUB FOR TH109874)

2шт.

35

4179177

DOWEL PIN

6 X 9.500 MM (0.236" X 0.374") (SUB FOR TH109875)

2шт.

37

4179176

DOWEL PIN

6 X 44 MM (0.236" X 1.732") (SUB FOR TH109876)

1шт.

38

CH17951

RING

(SUB FOR TH109877)

6шт.

39

4200227

DOWEL PIN

(SUB FOR TH109878)

1шт.

41

3035527

PISTON

(SUB FOR TH109879)

1шт.

42

4188555

DOWEL PIN

(SUB FOR TH109880)

1шт.

43

4179838

SET SCREW

M10 X 12, (SUB FOR TH109881)

1шт.

46

34M7061

SPRING PIN

8 X 20 MM (0.315" X 0.787")

2шт.

47

15H560

PIPE PLUG

1.575 MM (1/16")

4шт.

48

CH11560

PACKING

(SUB FOR TH109883, 4180349)

8шт.

49

19M8341

SCREW

M12 X 45

8шт.
