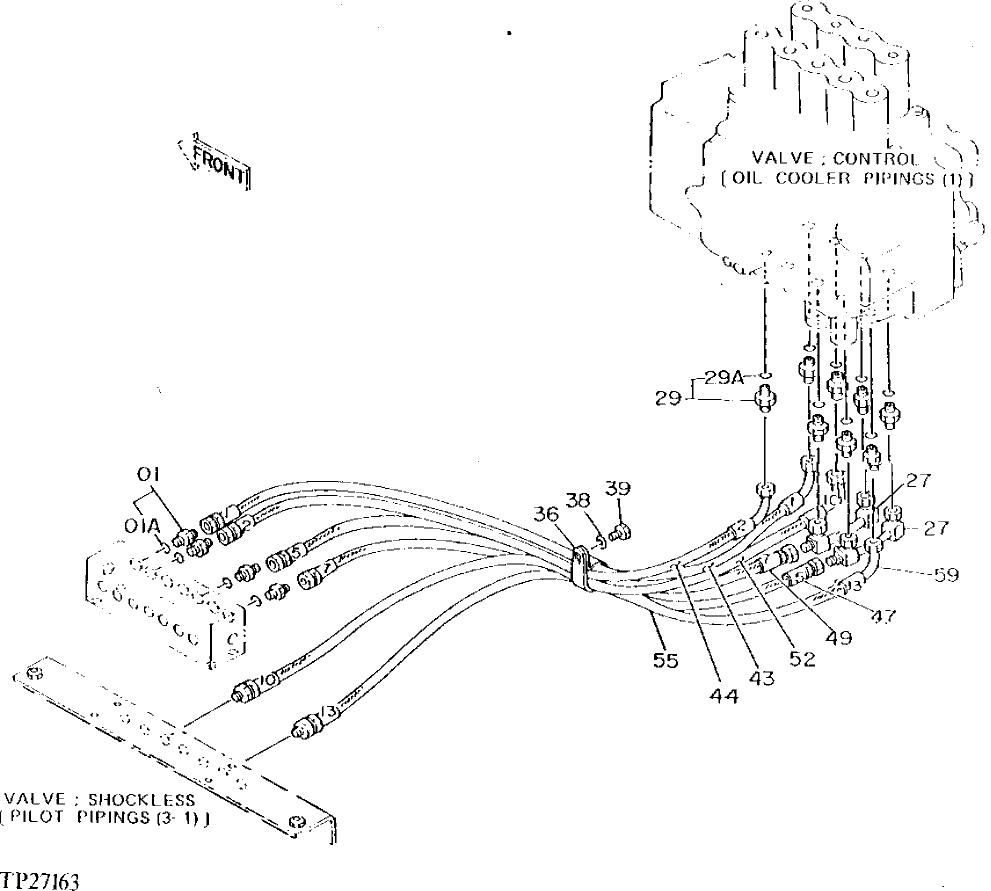

Запчасти John Deere 90D 10 - PILOT PIPINGS 2160 - MAIN HYDRAULIC SYSTEM 21

1

4200466

ADAPTER FITTING

(SUB FOR TH108320)

4шт.

1A

CH11570

O-RING

1шт.

27

8038370

LINE

(SUB FOR TH109597)

2шт.

29

4200466

ADAPTER FITTING

(SUB FOR TH108320)

8шт.

29A

CH11570

O-RING

1шт.

36

N198631

CLAMP

(SUB FOR TH109598 OR 4190265)

1шт.

38

12M7066

LOCK WASHER

10 MM

1шт.

39

19M8324

CAP SCREW

M10 X 16

1шт.

43

AT69452

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109600) (1)

1шт.

44

AT69452

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109601) (2)

1шт.

47

AT48717

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109604) (5)

1шт.

49

AT48434

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109606) (7)

1шт.

52

AT46299

HYDRAULIC HOSE - FABRICATE

(10) (SUB FOR TH109608, ALONG WITH AE24616, R27238 AND 14H832)

1шт.

55

AT46299

HYDRAULIC HOSE - FABRICATE

(13) (SUB FOR 4203099 ALONG WITH AE24616, R27238 AND 14H832)

1шт.

59

AE24616

ELBOW FITTING

1шт.

R27238

FITTING

1шт.

14H832

NUT

1шт.
