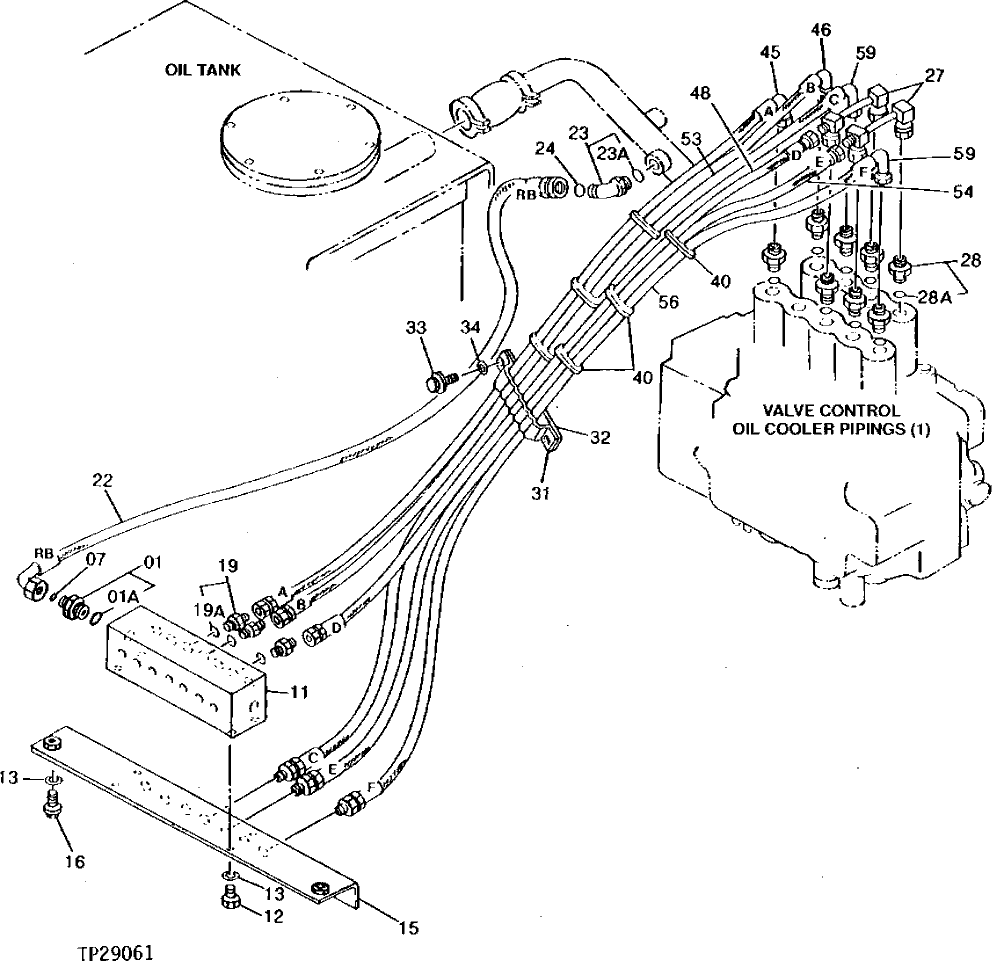

Запчасти John Deere 90D 8 - PILOT PIPINGS 2160 - MAIN HYDRAULIC SYSTEM 21

1

4189602

FITTING

(SUB FOR TH108350)

1шт.

1A

4506418

O-RING

(SUB FOR U46489)

1шт.

7

T77857

O-RING

(SUB FOR TH109869)

1шт.

11

4188552

FLOW CONTROL HYD. VALVE

(SUB FOR TH109593)

1шт.

12

19M7938

CAP SCREW

M10 X 20

4шт.

13

12M7066

LOCK WASHER

10 MM

6шт.

15

8035594

BRACKET

(SUB FOR TH109594)

1шт.

16

19M7662

CAP SCREW

M10 X 30

2шт.

19

4200466

ADAPTER FITTING

(SUB FOR TH108320)

3шт.

19A

CH11570

O-RING

1шт.

22

AT135719

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109596 AND AT100651)

1шт.

23

A853344

ELBOW FITTING

(SUB FOR TH108401, 4200580)

1шт.

23A

4506418

O-RING

(SUB FOR TH100061) (SUB FOR U46489)

1шт.

24

T77857

O-RING

(SUB FOR TH108323)

1шт.

27

8038370

LINE

(SUB FOR TH109597)

2шт.

28

4202422

ADAPTER FITTING

(SUB FOR TH108440)

8шт.

28A

CH11570

O-RING

1шт.

31

9727639

HOSE CLAMP

(SUB FOR TH108456)

1шт.

32

9727637

PLATE

(SUB FOR TH108457)

1шт.

33

19M7662

CAP SCREW

M10 X 30

2шт.

34

12M7066

LOCK WASHER

10 MM

2шт.

40

4203210

CLAMP

(SUB FOR TH109599)

6шт.

45

AT72803

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109602) (3)

1шт.

46

AT72803

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109603) (4)

1шт.

48

AR90081

HYDRAULIC HOSE

(SUB FOR TH109605) (6)

1шт.

53

AT48422

HYDRAULIC HOSE - FABRICATE

(11) (SUB FOR 4203097 ALONG WITH AE24616, R27238 AND 14H832)

1шт.

54

AT46297

HYDRAULIC HOSE - FABRICATE

(12) (SUB FOR 4203098 ALONG WITH R27238 AND 14H832)

1шт.

R27238

FITTING

1шт.

14H832

NUT

9/16"

1шт.

56

AT46297

HYDRAULIC HOSE - FABRICATE

(14) (SUB FOR 4203100 ALONG WITH AE24616, R27238 AND 14H832)

1шт.

59

AE24616

ELBOW FITTING

2шт.

R27238

FITTING

2шт.

14H832

NUT

9/16"

2шт.
