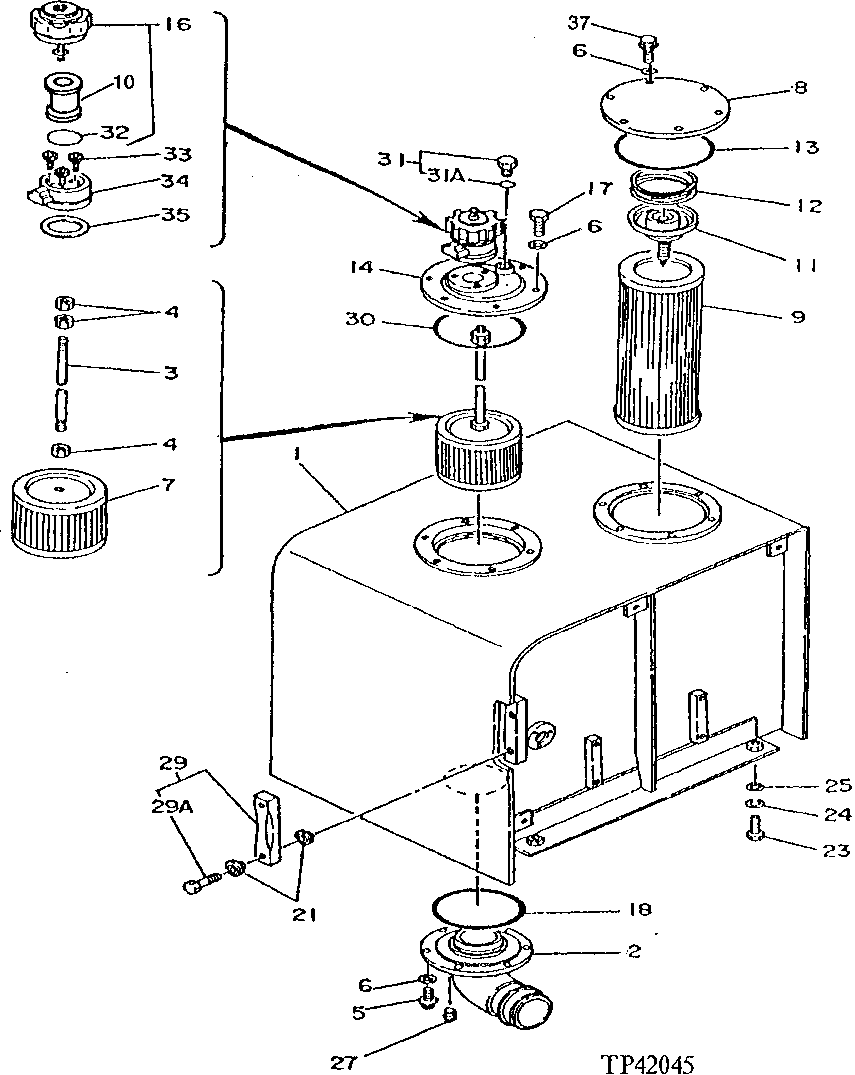

Запчасти John Deere 90D 6 - HYDRAULIC RESERVOIR 2160 - MAIN HYDRAULIC SYSTEM 21

1

5001888

HYDRAULIC RESERVOIR

(SUB FOR TH109506)

1шт.

2

8033913

LINE

(SUB FOR TH109507)

1шт.

3

4211107

ROD

(SUB FOR TH110134)

1шт.

4

14M7274

NUT

M10

3шт.

5

19M8761

SCREW

M10 X 22, (SUB FOR TH100456)

6шт.

6

12M7066

LOCK WASHER

10 MM

18шт.

7

4210224

STRAINER

(SUB FOR TH109508) (SUB FOR TH110133)

1шт.

AT190750

STRAINER

(ARCTIC) (32 MESH FOR ARCTIC CONDITIONS)

1шт.

8

COVER

( TH109509 NO LONGER AVAILABLE) (SUB TH111304, ALONG WITH (6) 19M8324 AND (6) 12M7066)

1шт.

4204057

COVER

(SUB FOR TH111304)

1шт.

9

AT147343

FILTER ELEMENT

(SUB FOR 4206705, ALONG WITH T110444 PACKING)

1шт.

AT162766

FILTER ELEMENT

(CLEAN-UP FILTER) (SHORT TERM USE - APPROXIMATELY THREE HOURS) (IDLE SPEED)

1шт.

10

4251384

FILTER ELEMENT

(SUB FOR AT122928)

1шт.

11

4180414

FLOW CONTROL HYD. VALVE

(SUB FOR TH109511)

1шт.

12

4226549

EXTENSION SPRING

(SUB FOR TH109512)

1шт.

13

T110444

O-RING

189.300 X 5.700 MM (7.453" X 0.224")

1шт.

14

8039818

COVER

(SUB FOR TH109513)

1шт.

16

4326285

CAP

(SUB FOR TH111018) (SUB FOR AT167080)

1шт.

17

19M8784

SCREW

M10 X 20, (SUB FOR TH101355, 19M8356)

6шт.

18

A810165

O-RING

(SUB FOR TH100665)

1шт.

21

449558

WASHER

(SUB FOR TH100675)

4шт.

23

19M7488

CAP SCREW

M16 X 40

4шт.

24

12H294

LOCK WASHER

5/8"

4шт.

25

4114405

WASHER

(SUB FOR TH101105)

4шт.

27

94-2011

FITTING PLUG

(SUB FOR TH100434)

1шт.

29

8053499

LEVEL GAUGE

(SUB FOR TH108293)

1шт.

29A

4100967

BOLT

(SUB FOR TH101894)

2шт.

30

TH100679

O-RING

1шт.

31

4209653

FITTING PLUG

(SUB FOR TH109514)

1шт.

31A

4506418

O-RING

(SUB FOR TH100061) (SUB FOR U46489)

1шт.

32

T162516

O-RING

(SUB FOR TH111019, THIS APPLICATION)

1шт.

33

19M8146

SCREW

M5 X 16

3шт.

34

4222875

BASE

(SUB FOR TH111021)

1шт.

35

4222876

PACKING

(SUB FOR TH111022)

1шт.

37

19M8761

SCREW

M10 X 22, (SUB FOR TH100456) (USE WITH TH109509 COVER)

6шт.

19M8324

CAP SCREW

M10 X 16, (USE WITH TH111304 COVER)

6шт.
