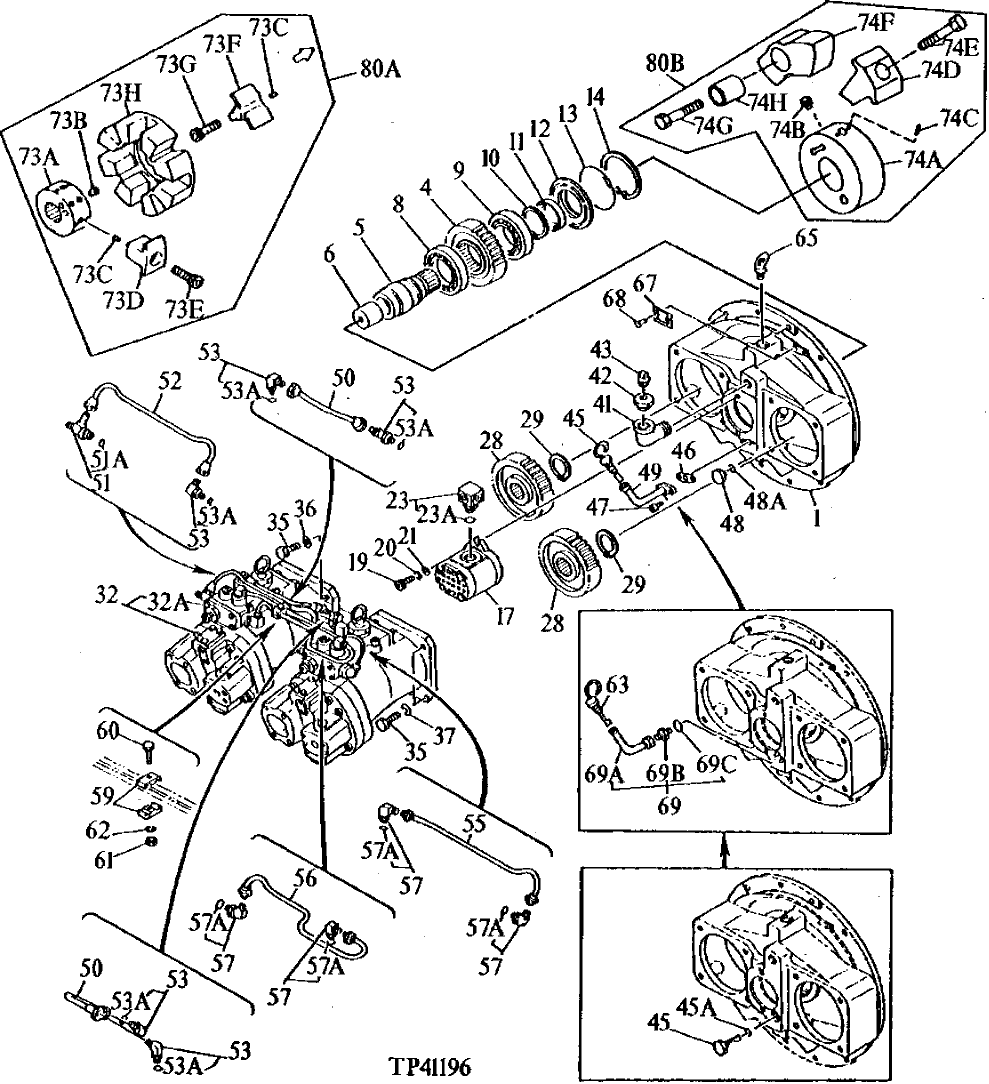

Запчасти John Deere 90D 4 - MAIN HYDRAULIC PUMP, GEARBOX AND DRIVE 2160 - MAIN HYDRAULIC SYSTEM 21

50

4184689

LINE

(SUB FOR TH109465)

2шт.

51

4203485

FITTING

(SUB FOR TH109466)

1шт.

51A

M800650

PACKING

1шт.

52

4181053

LINE

(SUB FOR TH109467)

1шт.

53

4293950

ELBOW FITTING

(SUB FOR TH109468 OR AT160584)

5шт.

53A

M800650

PACKING

1шт.

55

3033595

LINE

(SUB FOR TH109469)

1шт.

56

3036487

LINE

(SUB FOR TH109470)

1шт.

57

4118499

ELBOW FITTING

(SUB FOR TH101821)

4шт.

57A

M800650

PACKING

1шт.

59

4179843

CLAMP

(SUB FOR TH109471)

2шт.

60

19M7377

CAP SCREW

M8 X 28

1шт.

61

14M7273

NUT

M8

1шт.

62

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

1шт.

63

4236198

LEVEL GAUGE

(SUB FOR TH111913)

1шт.

65

4092149

EYEBOLT

(SUB FOR TH101814)

1шт.

67

SERIAL NUMBER PLATE

1шт.

68

37H99

SCREW

0.100" X 1/4"

2шт.

69

LEVEL GAUGE

( 4236328 NO LONGER AVAILABLE, SUB 4236199, ALONG WITH 4236200 AND CH11570)

1шт.

69A

4236200

OIL TUBE

(SUB FOR TH111912)

1шт.

69B

4236199

ADAPTER FITTING

(SUB FOR TH111911)

1шт.

69C

CH11570

O-RING

1шт.

73A

COUPLING

(SUB 4118705)

1шт.

73B

22M7137

SET SCREW

M16 X 16

2шт.

73C

34M7117

SPRING PIN

5 X 10 MM

12шт.

73D

4183167

INSERT

(SUB FOR TH106373)

4шт.

73E

T108085

CAP SCREW

4шт.

73F

4183166

INSERT

(SUB FOR TH109475)

4шт.

73G

T108085

CAP SCREW

(SUB FOR TH106374)

4шт.

73H

4183165

COUPLING

1шт.

74A

HUB

( TH106384 NO LONGER AVAILABLE)

1шт.

74B

22M7138

SET SCREW

M20 X 25

2шт.

74C

34M7160

SPRING PIN

8 X 16 MM

8шт.

74D

4183175

INSERT

(SUB FOR TH106378)

4шт.

74E

4183177

SCREW

(SUB FOR TH106381)

4шт.

74F

4183173

INSERT

(SUB FOR TH103493)

4шт.

74G

4183176

SCREW

(SUB FOR TH106380)

4шт.

74H

4183174

BUSHING

(SUB FOR TH106379)

4шт.

80A

COUPLING

(SUB 4118705) PRODUCTION ONLY

1шт.

80B

4118705

COUPLING

1шт.
