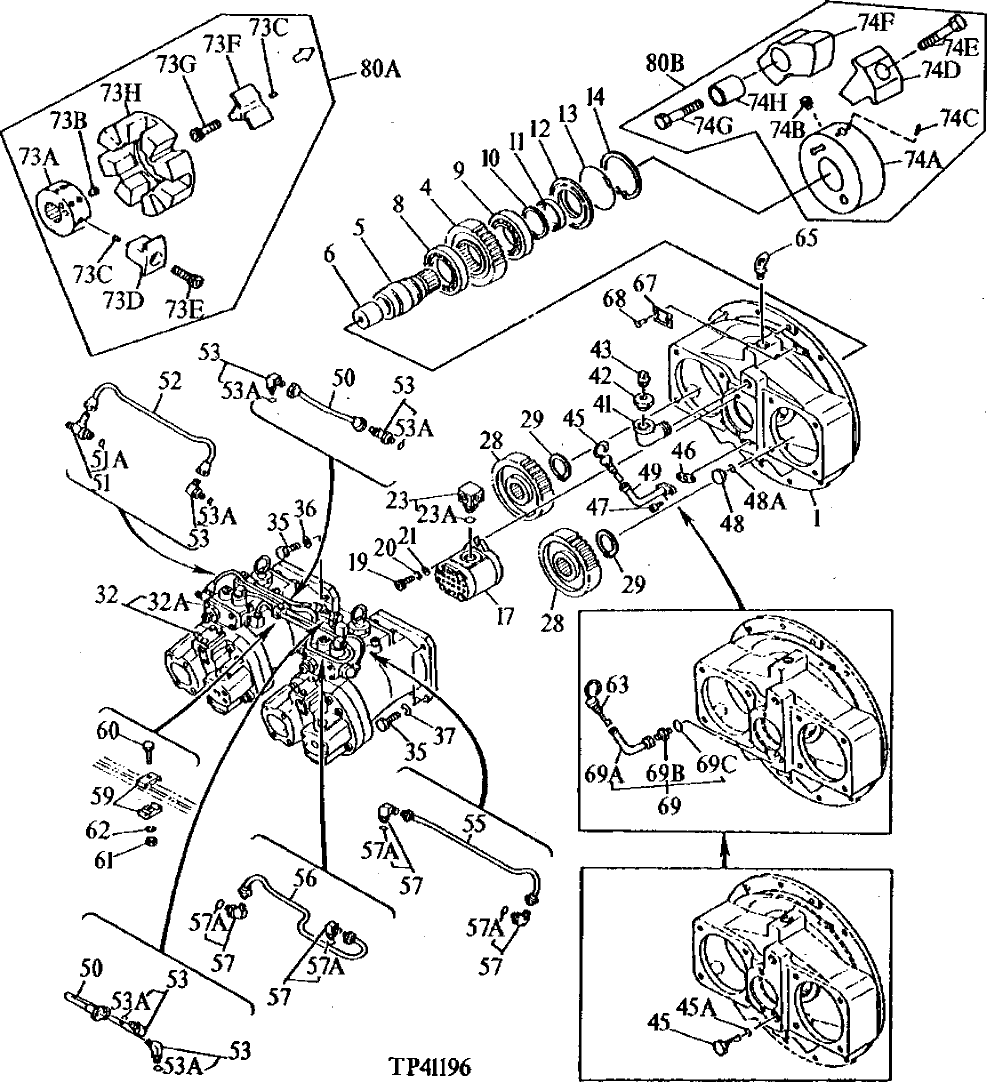

Запчасти John Deere 90D 2 - MAIN HYDRAULIC PUMP, GEARBOX AND DRIVE 2160 - MAIN HYDRAULIC SYSTEM 21

1

1013617

GEAR CASE

(SUB FOR TH109449, ALONG WITH 4242262, 4242263, 9742779 AND (2) 19M7932)

1шт.

1013617

GEAR CASE

(SUB FOR TH112093)

1шт.

4

3033590

GEAR

(SUB FOR TH109450)

1шт.

5

SHAFT

(SUB 3081085, M804206 AND 4395457) ( TH109451 NO LONGER AVAILABLE)

1шт.

3081085

PINION SHAFT

(SUB FOR AT219648) (SUB FOR 3038090, ALONG WITH M804206, AND 4395457)

1шт.

6

SLEEVE

(SUB 3081085, M804206 AND 4395457) ( TH109452 NO LONGER AVAILABLE)

1шт.

SLEEVE

(NO LONGER REQUIRED)

1шт.

8

M804206

BEARING

(SUB FOR TH101792) (USE IF AVAILABLE)

1шт.

M804206

BEARING

(SUB FOR TH101792) (SUB FOR AT250102)

1шт.

9

4395457

BALL BEARING

(SUB FOR TH108029 OR JD9320, THIS APPLICATION) (SUB FOR AT250103)

1шт.

10

40M7120

SNAP RING

(SUB FOR TH106793)

1шт.

11

TH109453

SEAL

1шт.

12

3033593

COVER

(SUB FOR TH109454)

1шт.

13

AT264339

O-RING

(SUB FOR TH109455, TH100122)

1шт.

14

40M5463

SNAP RING

(SUB FOR TH109456 AND 40M7178)

1шт.

17

9217993

PUMP

(SUB FOR TH109457 AND 4181700)

1шт.

19

19M8337

SCREW

M10 X 30, (SUB FOR TH105473)

2шт.

20

12M7135

LOCK WASHER

10 MM, (SUB FOR TH109458) (SUB FOR 12M6791)

2шт.

21

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

23

4191974

ADAPTER FITTING

(SUB FOR TH109459)

1шт.

23A

4506418

O-RING

(SUB FOR TH100061) (SUB FOR U46489)

1шт.

28

3034465

BEVEL GEAR

(SUB FOR TH109460)

2шт.

29

40M7166

SNAP RING

(SUB FOR TH101799)

2шт.

32

AT217330

PUMP

(SUB FOR TH109461) (REMANUFACTURED)

2шт.

32A

9073453

REGULATOR

(SUB FOR TH109462)

1шт.

35

19M7489

CAP SCREW

M16 X 45

8шт.

36

4126090

SEALING WASHER

(SUB FOR TH109463)

4шт.

37

12H294

LOCK WASHER

5/8"

4шт.

41

15H621

ELBOW FITTING

(SUB FOR TH101810)

1шт.

42

J728684

REDUCER

(SUB FOR TH101811)

1шт.

43

4511984

PIPE PLUG

(SUB FOR TH101812)

1шт.

45

4242263

DIPSTICK

(SUB FOR TH112088)

1шт.

45A

CH11570

O-RING

1шт.

46

9742779

GASKET

(SUB FOR TH112091) (SUB FOR AT214401)

1шт.

47

19M7932

CAP SCREW

M8 X 16

2шт.

48

0309805

PIPE PLUG

(SUB FOR 4092534 OR 4217653) (ALSO ORDER CH11570) (SUB FOR TH109285)

1шт.

48A

CH11570

O-RING

(USE WITH 0309805 OR 15M7036)

1шт.

49

4242262

OIL TUBE

(SUB FOR TH112089)

1шт.
