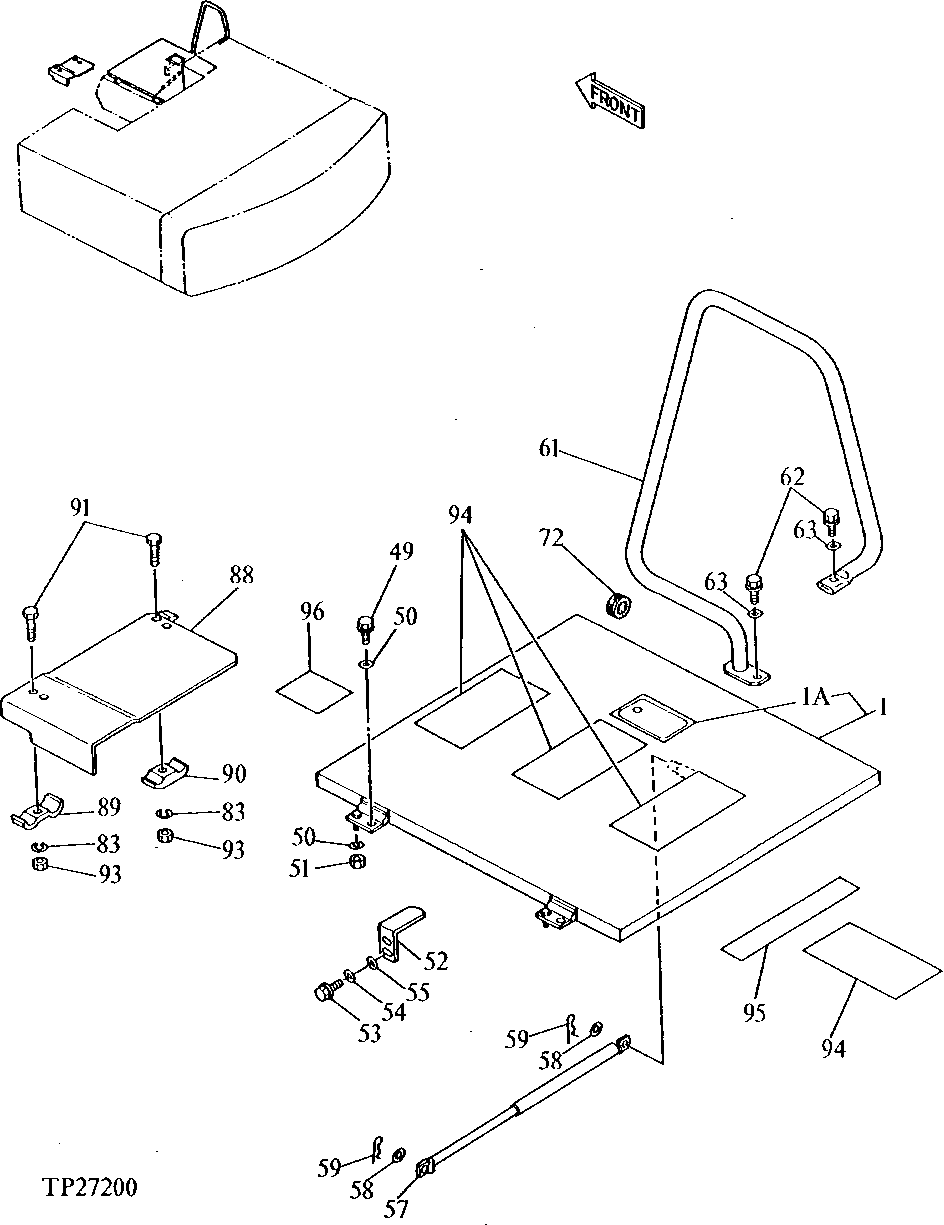

Запчасти John Deere 90D 6 - SERVICE DOORS, COVERS AND HANDHOLDS 1910 - SHEET METAL AND STYLING 19

1

6009414

COVER

(SUB FOR TH109682) (SUB FOR TH111698)

1шт.

1A

4361763

LOCK

(SUB FOR AT115741) (SUB FOR AT214010)

1шт.

49

19M8761

SCREW

M10 X 22, (SUB FOR AT127980 AND TH100456)

2шт.

50

12M7066

LOCK WASHER

10 MM

4шт.

51

14M7274

NUT

M10

2шт.

52

4194836

STOP

(SUB FOR TH109683)

1шт.

53

19M7872

CAP SCREW

M12 X 25

2шт.

54

12H301

LOCK WASHER

1/2"

2шт.

55

24M7047

WASHER

13 X 24 X 2.500 MM

2шт.

57

4188366

ABSORBER

(SUB FOR TH109684)

1шт.

58

24M7055

WASHER

8.400 X 16 X 1.600 MM

2шт.

59

H132922

COTTER PIN

(SUB FOR TH108388 AND L1587C)

2шт.

61

8039790

SUPPORT

(SUB FOR TH109685)

1шт.

62

19M7872

CAP SCREW

M12 X 25

2шт.

63

12H301

LOCK WASHER

1/2"

2шт.

72

94-2817

GROMMET

(SUB FOR TH102171)

1шт.

83

12H301

LOCK WASHER

1/2"

2шт.

88

8040653

COVER

(SUB FOR TH111056) (SUB FOR TH111642)

1шт.

89

4215517

CLAMP

(SUB FOR TH111643)

1шт.

90

4189859

CLAMP

(SUB FOR TH109071)

1шт.

91

19M7753

CAP SCREW

M12 X 70

2шт.

93

14M7275

NUT

M12

2шт.

94

H21259

MAT

4шт.

95

H21259

MAT

(SUB FOR TH110224)

1шт.

96

4210501

TAPE

(SUB FOR TH110223)

1шт.
