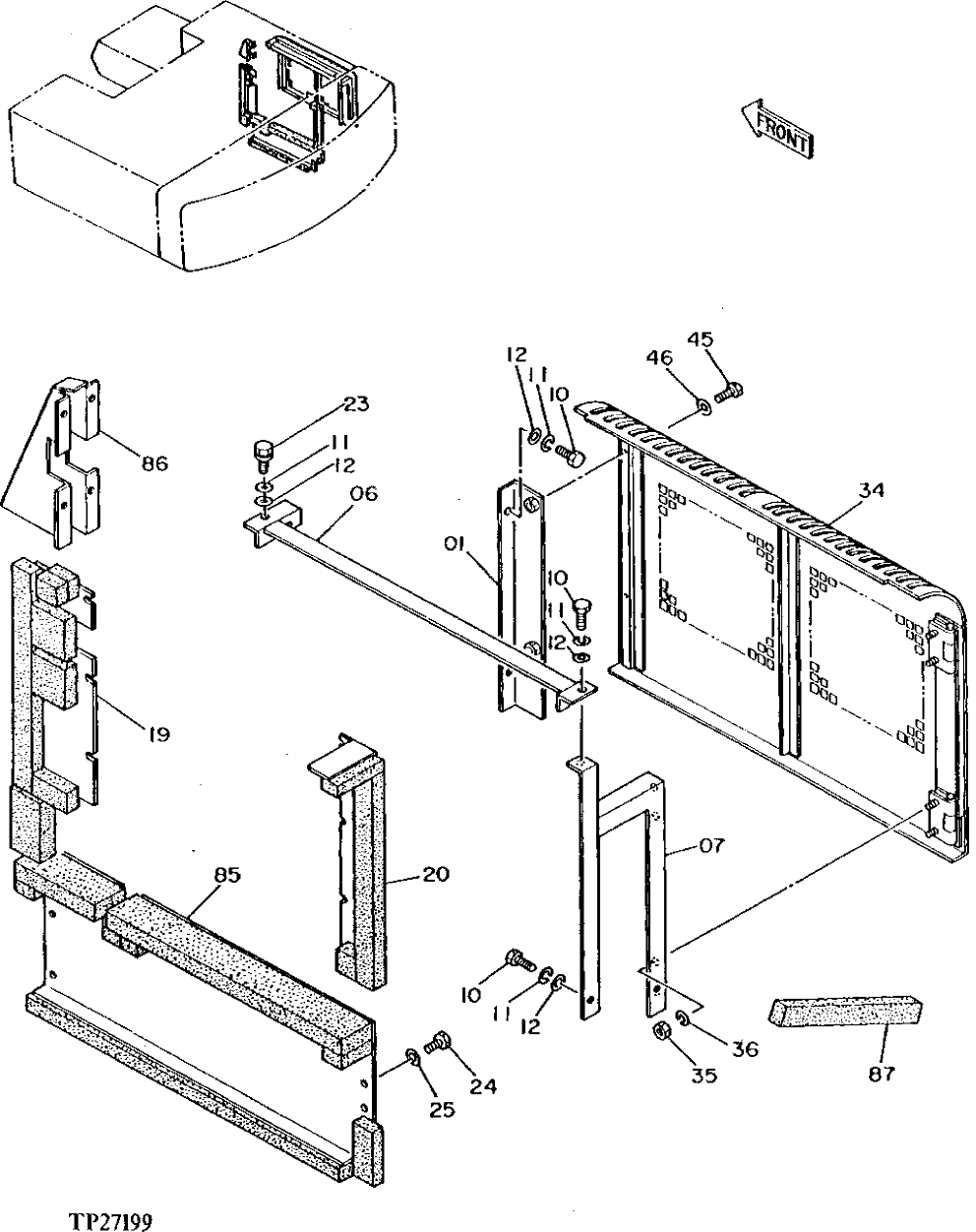

Запчасти John Deere 90D 4 - SERVICE DOORS, COVERS AND HANDHOLDS 1910 - SHEET METAL AND STYLING 19

1

9725238

SUPPORT

(SUB FOR TH109667)

1шт.

6

9728049

SUPPORT

(SUB FOR TH109668)

1шт.

7

8038929

SUPPORT

(SUB FOR TH109669)

1шт.

10

19M8011

CAP SCREW

M12 X 30

5шт.

11

12H301

LOCK WASHER

1/2"

6шт.

12

24M7047

WASHER

13 X 24 X 2.500 MM

6шт.

19

8038934

PLATE

(SUB FOR TH109676)

1шт.

20

8038927

PLATE

(SUB FOR TH109677)

1шт.

23

19M8011

CAP SCREW

M12 X 30

1шт.

24

19M7872

CAP SCREW

M12 X 25

4шт.

25

24M7047

WASHER

13 X 24 X 2.500 MM

4шт.

34

7018761

DOOR

(SUB FOR TH109680)

1шт.

35

14M7275

NUT

M12

4шт.

36

12H301

LOCK WASHER

1/2"

4шт.

45

19M8443

SCREW

M12 X 20

2шт.

46

24M7047

WASHER

13 X 24 X 2.500 MM

2шт.

85

8038930

PLATE

(SUB FOR TH109688)

1шт.

86

8040775

COVER

(SUB FOR TH109689)

1шт.

87

4209491

ISOLATOR

(SUB FOR TH109690)

1шт.
