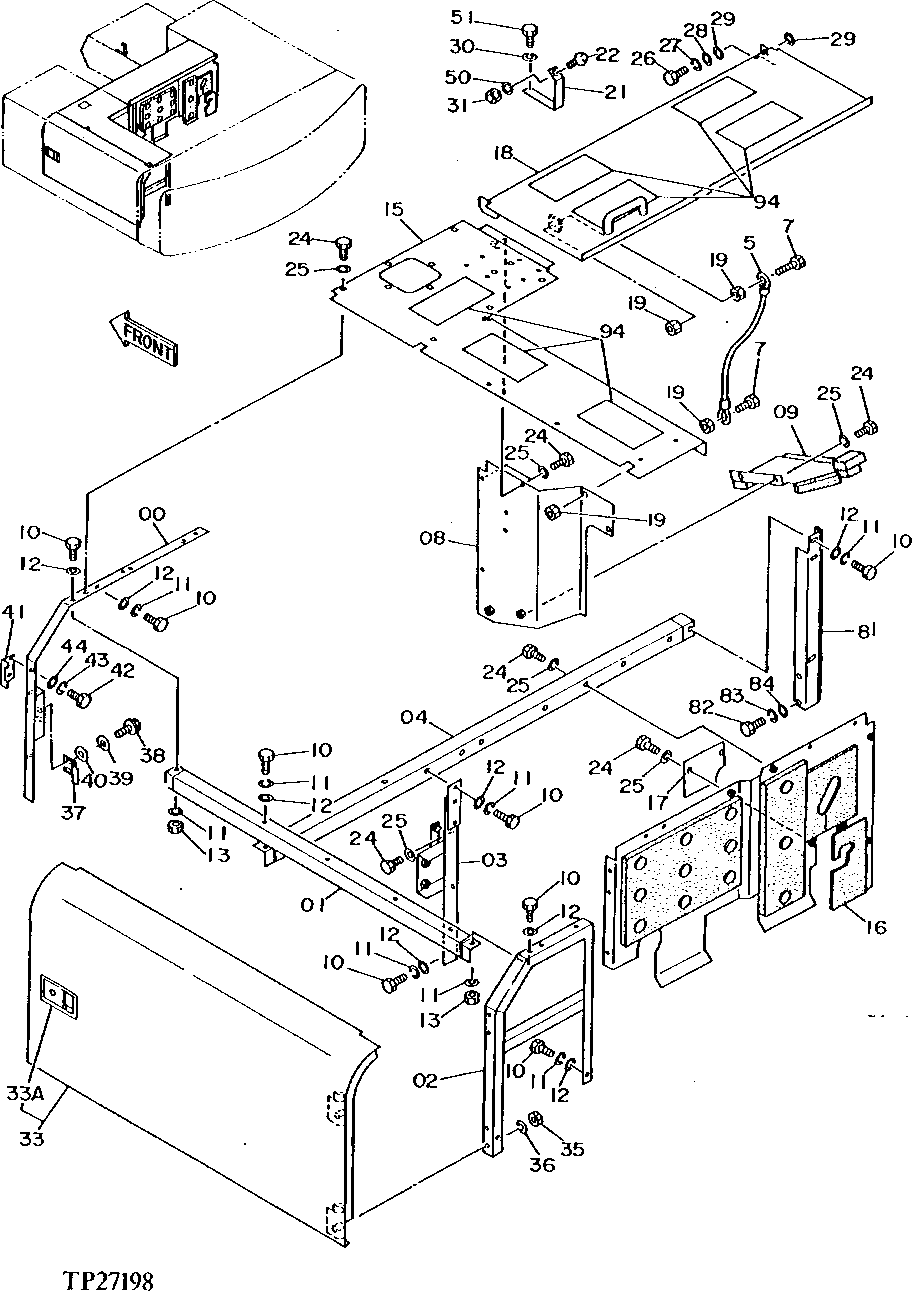

Запчасти John Deere 90D 2 - SERVICE DOORS, COVERS AND HANDHOLDS 1910 - SHEET METAL AND STYLING 19

0

8035504

SUPPORT

(SUB FOR TH109662)

1шт.

1

8041063

SUPPORT

(SUB FOR TH111644) (SUB FOR TH109663 ALONG WITH TH111645)

1шт.

8041063

SUPPORT

(SUB FOR TH111644)

1шт.

2

8041061

SUPPORT

(SUB FOR TH111645) (SUB FOR TH109664 ALONG WITH TH111644)

1шт.

8041061

SUPPORT

(SUB FOR TH111645)

1шт.

3

8038925

SUPPORT

(SUB FOR TH109665)

1шт.

4

8035749

SUPPORT

(SUB FOR TH109666)

1шт.

5

4232654

WIRE

(SUB FOR TH112009)

1шт.

7

19M7496

CAP SCREW

M12 X 45, (SUB FOR AT122612)

2шт.

8

COVER

(SUB TH112010)

1шт.

8044720

COVER

(SUB FOR TH112010)

1шт.

9

9728032

COVER

(SUB FOR TH109671)

1шт.

10

19M8011

CAP SCREW

M12 X 30

12шт.

11

12H301

LOCK WASHER

1/2"

12шт.

12

24M7047

WASHER

13 X 24 X 2.500 MM

12шт.

13

14M7275

NUT

M12

2шт.

15

7016988

COVER

(SUB FOR TH109672)

1шт.

16

7018427

PLATE

(SUB FOR TH109673)

1шт.

17

4203445

PLATE

(SUB FOR TH109674)

1шт.

18

COVER

( TH109675 NLA)

1шт.

8044718R

DOOR

(SUB FOR TH112011, 8044718)

1шт.

19

14M7275

NUT

M12

4шт.

21

4202172

BRACKET

(SUB FOR TH109678)

1шт.

22

4147883

STOP

(SUB FOR TH101122)

1шт.

24

19M7872

CAP SCREW

M12 X 25

22шт.

25

24M7047

WASHER

13 X 24 X 2.500 MM

22шт.

26

19M8761

SCREW

M10 X 22, (SUB FOR AT127980 AND TH100456)

1шт.

27

12M7066

LOCK WASHER

1шт.

28

24M7101

WASHER

11 X 34 X 3 MM, (SUB FOR TH101289)

1шт.

29

24M7051

WASHER

21 X 37 X 3 MM

2шт.

30

12H301

LOCK WASHER

1/2"

1шт.

31

J952010

NUT

(SUB FOR TH104196)

1шт.

33

6007849

DOOR

(SUB FOR TH109679)

1шт.

33A

4361763

LOCK

(SUB FOR AT115741) (SUB FOR AT214010)

1шт.

35

14M7275

NUT

M12

4шт.

36

12H301

LOCK WASHER

1/2"

4шт.

37

4188492

STOP

(SUB FOR TH108762)

1шт.

38

19M8011

CAP SCREW

M12 X 30

2шт.

39

12H301

LOCK WASHER

1/2"

2шт.

40

24M7047

WASHER

13 X 24 X 2.500 MM

2шт.

41

3037786

BRACKET

(SUB FOR TH109681)

1шт.

42

19M7932

CAP SCREW

M8 X 16

2шт.

43

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

44

24M7055

WASHER

8.400 X 16 X 1.600 MM

2шт.

50

12M7066

LOCK WASHER

10 MM

1шт.

51

19M7872

CAP SCREW

M12 X 25

1шт.

81

4168132

CAP

(SUB FOR TH110210)

1шт.

82

19M7872

CAP SCREW

M12 X 25

2шт.

83

12H301

LOCK WASHER

1/2"

2шт.

84

24M7047

WASHER

13 X 24 X 2.500 MM

2шт.

94

H21259

MAT

7шт.
