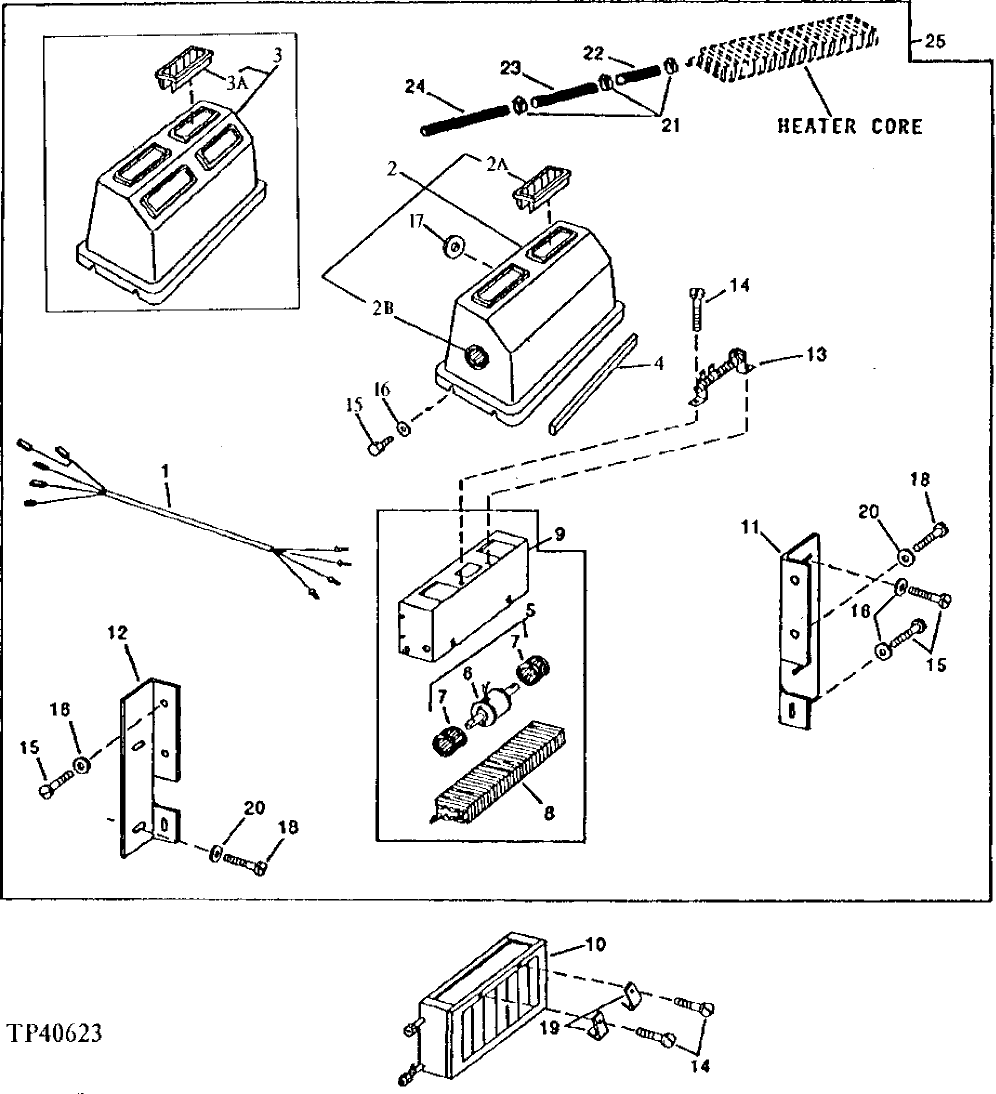

Запчасти John Deere 90D 10 - HEATER 1830 - OPERATORS STATION 18

1

AT112079

WIRING HARNESS

(BLOWER MOTOR TO BLOWER SWITCH)

1шт.

R44302

TIE BAND

(KEEP WIRES OUT OF BLOWER BLADES)

1шт.

2

AT132891

COVER

(SUB FOR AT81206 OR AT130120)

1шт.

2A

AT81207

LOUVER

2шт.

2B

AT103802

LOUVER

2шт.

3

COVER

(SUB AT132891) ( AT81206 NO LONGER AVAILABLE)

1шт.

3A

AT130121

LOUVER

(SUB FOR AT81207, ALONG WITH (4) M46081 THIS APPLICATION)

4шт.

4

SEAL

(MAKE FROM T70636 BULK MATERIAL, CUT TO LENGTH)

1шт.

5

AT80368

BLOWER

1шт.

6

AT80369

ELECTRIC MOTOR

1шт.

7

AT66343

BLOWER FAN

(SET OF TWO) BLOWER

1шт.

8

AT56095

CORE

1шт.

9

HEATER

( AT80367 NO LONGER AVAILABLE)

1шт.

10

EVAPORATOR

( AT56094 NLA)

1шт.

11

T80640

BRACKET

(USE IF AVAILABLE)

1шт.

12

T80639

BRACKET

(USE IF AVAILABLE)

1шт.

13

AT56762

RESISTOR

1шт.

14

37H196

SCREW

2шт.

15

37H84

SCREW

10шт.

16

24H1821

WASHER

9/32" X 47/64" X 1/16"

18шт.

17

B30667

GROMMET

1шт.

18

19H1948

CAP SCREW

1/4" X 3/4"

4шт.

19

T59954

CLIP

(EVAPORATOR TO HEATER)

2шт.

20

24H1287

WASHER

9/32" X 5/8" X 0.065"

4шт.

21

WZ2141223

HOSE CLAMP

(SUB FOR AR21837, THIS APPLICATION) (SUB FOR AA34965)

8шт.

22

N155214

HOSE FITTING

4шт.

23

T22942

HOSE

2шт.

24

HOSE

(SUB FOR T78162) (MAKE FROM TY22328 BULK MATERIAL, CUT TO LENGTH)

5шт.

25

HEATER

( TH108182 NO LONGER AVAILABLE) (REPLACEMENT FIELD KIT AVAILABLE FROM "RED DOT")

1шт.
