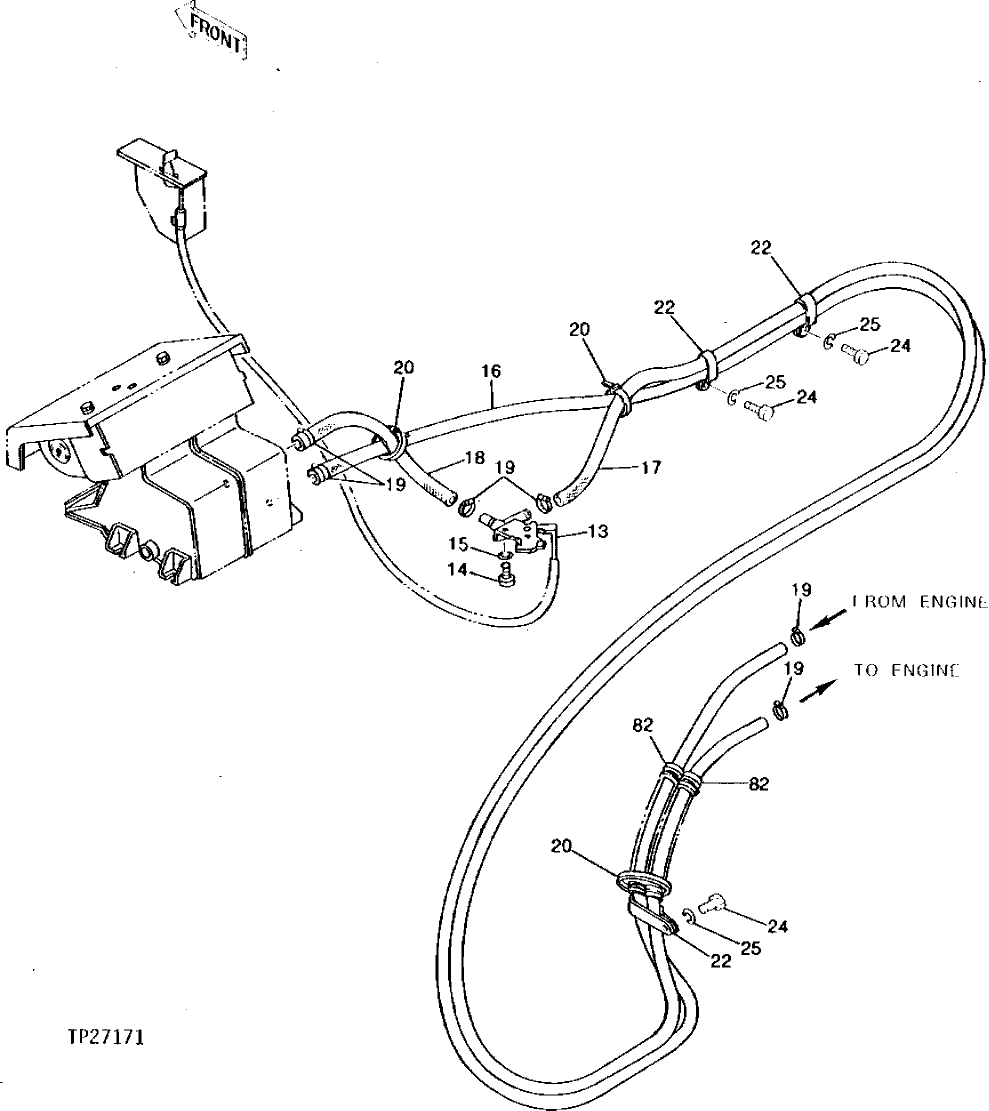

Запчасти John Deere 90D 6 - CAB HEATER PIPINGS 1830 - OPERATORS STATION 18

13

4195823

DRAIN VALVE

(SUB FOR TH108790) (DOES NOT INLCUDE CABLE)

1шт.

14

24M7252

WASHER

13 X 20 X 2 MM

2шт.

15

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

2шт.

16

T115300

HOSE

(SUB FOR TH102253)

1шт.

17

HOSE

(MAKE FROM 1/2" HEATER HOSE, CUT TO LENGTH)

1шт.

18

HOSE

(MAKE FROM T115300 BULK MATERIAL, CUT TO LENGTH)

1шт.

19

WZ2141223

HOSE CLAMP

(SUB FOR AR21837, THIS APPLICATION) (SUB FOR AA34965)

6шт.

20

H77698

TIE BAND

(SUB FOR T44946)

3шт.

22

4190266

CLIP

(SUB FOR TH108793)

3шт.

24

19M8324

CAP SCREW

M10 X 16

3шт.

25

12M7066

LOCK WASHER

10 MM

3шт.

82

4218278

TUBE

(SUB FOR TH111406)

2шт.
