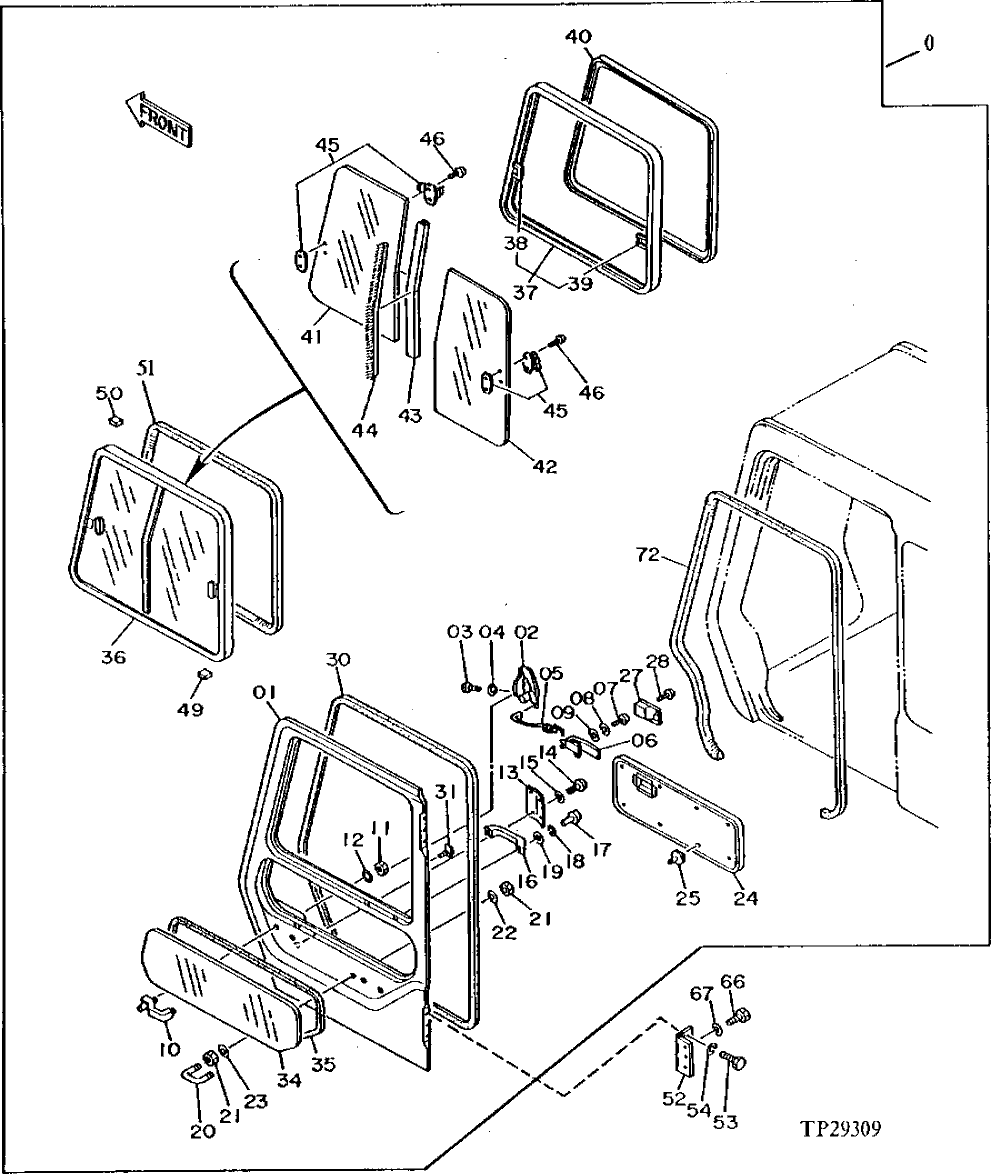

Запчасти John Deere 90D 12 - CAB DOOR ASSEMBLY 1810 - OPERATORS STATION 18

0

4236287J

DOOR

(SUB FOR TH108702) (ALSO ORDER AT176754, (2) 14M7273 AND (2) 12M7065) (SUB FOR AT115075) (SUB FOR AT90601 OR 4236287)

1шт.

1

DOOR

(SUB AT90601)

1шт.

2

4128454

LOCK

(SUB FOR TH101151)

1шт.

3

21M7246

SCREW

M6 X 16

3шт.

4

12M7006

LOCK WASHER

6 MM

3шт.

5

4204613

ROD

(SUB FOR TH108704)

1шт.

6

4204614

LEVER

(SUB FOR TH108705)

1шт.

7

21M7246

SCREW

M6 X 16

2шт.

8

12M7006

LOCK WASHER

6 MM

2шт.

9

24M7054

WASHER

6.400 X 12 X 1.600 MM

2шт.

10

4362133

HANDLE

(SUB FOR TH108706) (SUB FOR AT176754) (FOR USE WITH TH108702 ORIGINAL DOOR)

1шт.

AT148303

HANDLE

(FOR USE WITH AT90601 REPLACEMENT DOOR)

1шт.

AT194969

KEY

(SUB FOR AT147803) (H800) (NOT ILLUSTRATED) (USE WITH ORIGINAL DOOR)

1шт.

AR51481

KEY

(NOT ILLUSTRATED) (USE WITH REPLACEMENT DOOR)

1шт.

11

14M7273

NUT

M8

2шт.

12

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

13

4204616

COVER

(SUB FOR TH108707)

1шт.

14

21M7278

SCREW

M5 X 10

4шт.

15

12M7064

LOCK WASHER

5 MM

4шт.

16

4204579

HANDLE

(SUB FOR TH108661)

1шт.

17

21M7246

SCREW

M6 X 16

2шт.

18

12M7006

LOCK WASHER

6 MM

2шт.

19

24M7054

WASHER

6.400 X 12 X 1.600 MM

2шт.

20

4204617

U-BOLT

(SUB FOR TH108708)

1шт.

21

14M7444

NUT

M10, (SUB FOR TH108709)

4шт.

22

12M7066

LOCK WASHER

10 MM

2шт.

23

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH108710)

2шт.

24

4204618

PAD

(SUB FOR TH108711)

1шт.

25

4204607

CLIP

(SUB FOR TH108690)

8шт.

27

4204619

COVER

(SUB FOR TH108712)

1шт.

28

21M7396

SCREW

(SUB FOR TH101146)

1шт.

30

4204620

WEATHERSTRIP

(SUB FOR TH108713)

1шт.

31

4204621

PLUG

(SUB FOR TH108714)

38шт.

34

TH108715

WINDOWPANE

1шт.

35

4204625

ISOLATOR

(SUB FOR TH108716)

1шт.

36

WINDOW

( TH108717 NO LONGER AVAILABLE) (ORDER INDIVIDUAL COMPONENTS)

1шт.

37

4204627

FRAME

(SUB FOR TH108718)

1шт.

38

CATCH

(SUB TH108718)

1шт.

39

CATCH

(SUB TH108718)

1шт.

40

4204628

RUNNER

(SUB FOR TH108721)

1шт.

41

TH108722

WINDOWPANE

1шт.

42

TH108723

WINDOWPANE

1шт.

43

4204631

FRAME

(SUB FOR TH108724)

1шт.

44

4231413

WEATHERSTRIP

(SUB FOR TH108725) (SUB FOR TH111880)

1шт.

45

4369653

LOCK

(SUB FOR TH106626, 4295610 AND 4141713)

2шт.

46

4219753

SCREW

(SUB FOR TH106627) (SUB FOR TH110774)

4шт.

49

4147896

SPACER

(SUB FOR TH108646)

8шт.

50

4204567

SPACER

(SUB FOR TH108647)

3шт.

51

4204585

MOLDING

(SUB FOR TH108726) (SUB FOR TH108667)

1шт.

52

4204633

HINGE

(SUB FOR TH108728)

2шт.

53

19M7402

CAP SCREW

M10 X 25

6шт.

54

12M7066

LOCK WASHER

10 MM

6шт.

55

AT194969

KEY

(SUB FOR TH108552 AND AT147803) (NOT ILLUSTRATED) (H800)

1шт.

66

19M7402

CAP SCREW

M10 X 25

6шт.

67

12M7066

LOCK WASHER

10 MM

6шт.

72

4204585

MOLDING

(SUB FOR TH108667)

1шт.

80

4196647J

CAB

(SUB FOR AT114976 OR 4196647) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON OTHER PAGES)

1шт.
