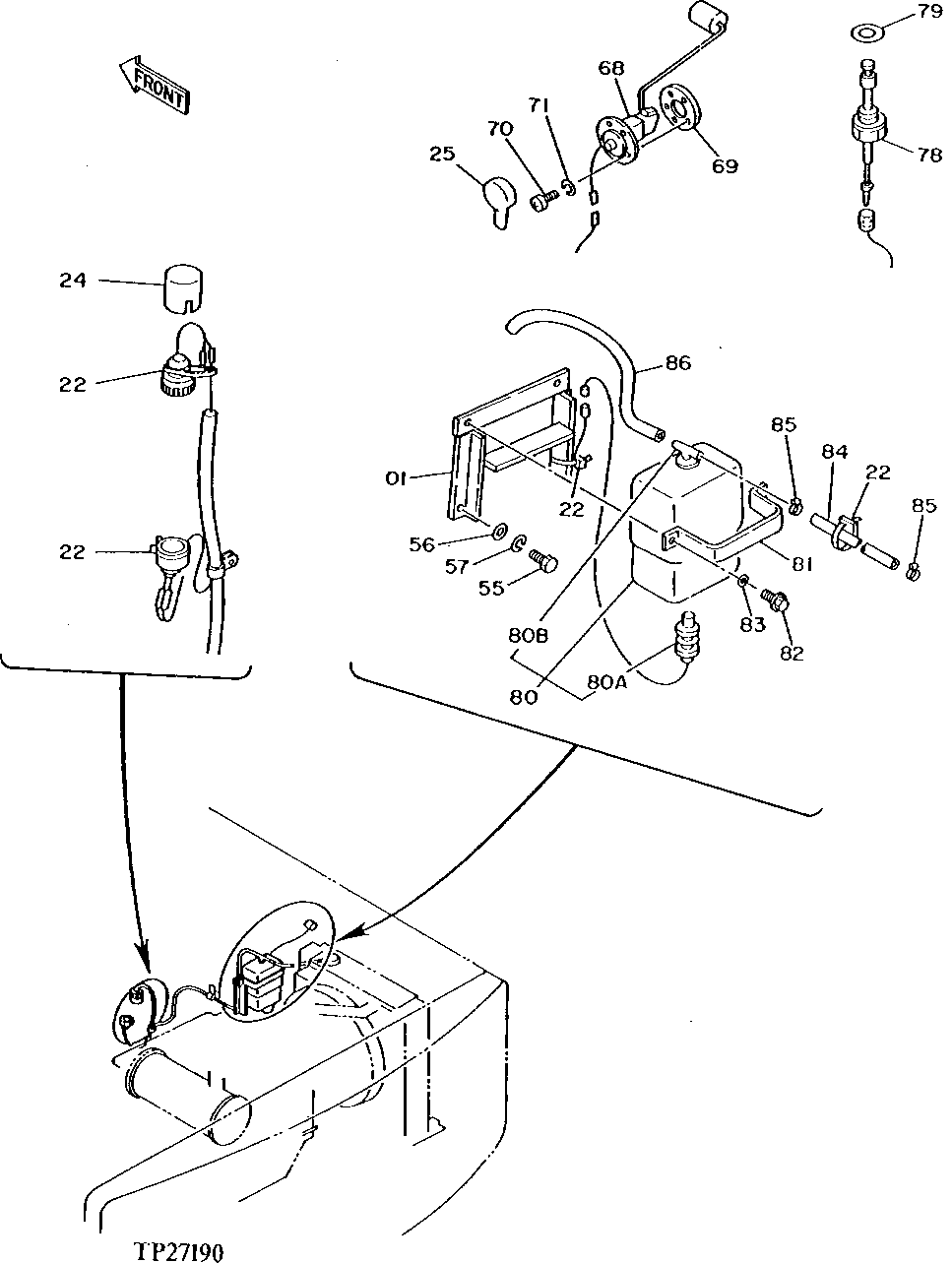

Запчасти John Deere 90D 14 - ELECTRICAL PARTS 1674 - ELECTRICAL SYSTEM 16

1

9725423

BRACKET

(SUB FOR TH109643)

1шт.

22

H77698

TIE BAND

(SUB FOR T44946)

4шт.

24

4207239

CAP

(SUB FOR TH108591)

1шт.

25

4207240

CAP

(SUB FOR TH108590)

1шт.

55

19M7872

CAP SCREW

M12 X 25

2шт.

56

24M7047

WASHER

13 X 24 X 2.500 MM

2шт.

57

12H301

LOCK WASHER

1/2"

2шт.

68

4201926

FUEL SENDER

(SUB FOR TH108581) (FUEL LEVEL)

1шт.

69

L29265

GASKET

1шт.

70

21M7278

SCREW

M5 X 10

5шт.

71

12M7064

LOCK WASHER

5 MM

5шт.

78

4201927

SWITCH

(SUB FOR TH108582) (LEVEL, FUEL)

1шт.

79

4157648

SEALING WASHER

(SUB FOR TH108583)

1шт.

80

4130139

TANK

(SUB FOR TH102161)

1шт.

80A

4153251

SENDER

(SUB FOR TH102932) (LEVEL, COOLANT)

1шт.

80B

4396809

CAP

(SUB FOR TH102933)

1шт.

81

4180555

BRACKET

(SUB FOR TH108579)

1шт.

82

19M7881

SCREW

2шт.

19M3142

CAP SCREW

M10 X 18, (SUB FOR TH102164)

2шт.

83

12M7066

LOCK WASHER

10 MM

2шт.

84

HOSE

(MAKE FROM R120653 BULK MATERIAL, CUT TO LENGTH) (SUB FOR R54445 AND R104595)

1шт.

85

TY22462

CLAMP

(SUB FOR AR77962 OR TH102166 OR AR48236)

2шт.

86

T79477

HOSE

1шт.
