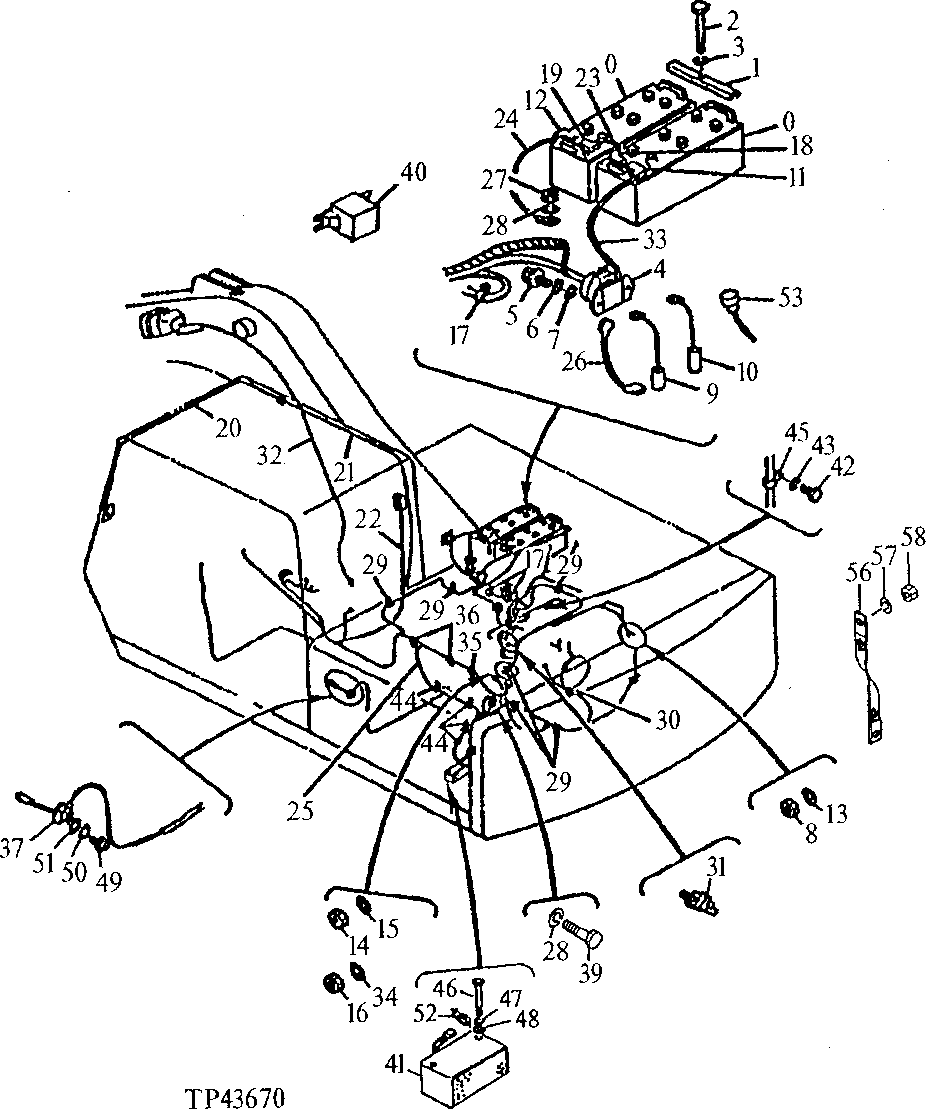

Запчасти John Deere 90D 12 - ELECTRICAL PARTS 1674 - ELECTRICAL SYSTEM 16

31

4334759

AIR RESTRICTION INDICATOR

(SUB FOR TH109441)

1шт.

32

4244295

WIRING HARNESS

(K) (SUB FOR AT128277)

1шт.

33

4230892

BATTERY CABLE

(K) (SUB FOR AT128275)

1шт.

34

12H295

LOCK WASHER

0.190"

1шт.

35

T28949

CLAMP

(SUB FOR TH108458 OR 4190274)

1шт.

36

T28949

CLAMP

(SUB FOR TH108460 OR 4190273)

3шт.

37

4151888

SWITCH

(SUB FOR TH102170) (LEVEL,HYD OIL)

1шт.

38

AU42892

WIRING LEAD

(K) (NOT ILLUSTRATED) (ALTERNATOR OUTPUT TO SENSE TERMINALS)

1шт.

39

19M7938

CAP SCREW

M10 X 20

1шт.

40

AT85258

RELAY

(STARTER) (SUB AT145341, ALONG WITH (2) T28583 CONNECTORS)

1шт.

AT145341

RELAY

(STARTER)

1шт.

14M7165

LOCK NUT

M6, (STARTER RELAY TERMINALS)

2шт.

41

AT120884

TRAVEL WARNING ALARM

1шт.

42

19M8324

CAP SCREW

M10 X 16

ARшт.

43

12M7066

LOCK WASHER

10 MM

ARшт.

44

T38377

CLAMP

(SUB FOR TH108601)

3шт.

45

T30367

CLAMP

(SUB FOR TH109650)

2шт.

46

19M8539

CAP SCREW

M8 X 90

2шт.

47

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

48

24M7055

WASHER

8.400 X 16 X 1.600 MM

2шт.

49

21M7265

SCREW

M5 X 12

3шт.

50

12M7064

LOCK WASHER

5 MM

3шт.

51

24M7027

WASHER

5.300 X 10 X 1 MM

3шт.

52

H77698

TIE BAND

1шт.

53

4240649

WIRING LEAD

(SUB FOR AT130832)

1шт.

55

WIRING HARNESS

(SUB AT131433) (MAIN) ( TH109646 NOT AVAILABLE FOR SERVICE) (NOT ILLUSTRATED) (TIE UNUSED WIRING LEADS ON SUB WIRING HARNESS AND TAPE THE ENDS TO THE HARNESS)

1шт.

4260094

WIRING HARNESS

(SUB FOR AT131433) (MAIN) (NOT ILLUSTRATED)

1шт.

56

AT47069

GROUND CABLE

(SUB FOR AT154993) STRAP (ENGINE FLYWHEEL HOUSING TO GROUND)

1шт.

57

12M7066

LOCK WASHER

10 MM

1шт.

58

14M7274

NUT

M10

1шт.
