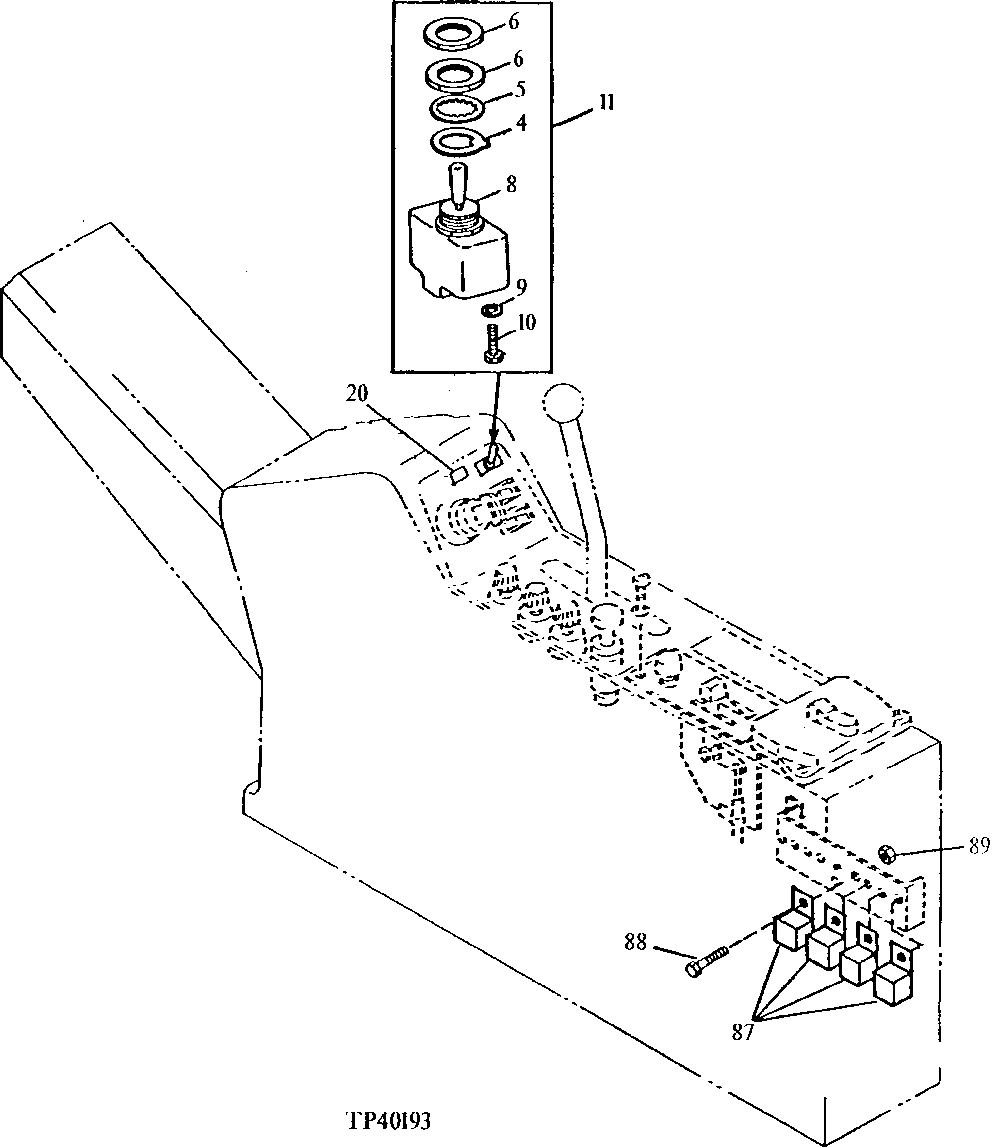

Запчасти John Deere 90D 4 - ELECTRICAL COMPONENTS 1674 - ELECTRICAL SYSTEM 16

4

R44096

LOCK PLATE

1шт.

5

12H292

LOCK WASHER

1/2"

1шт.

6

R44097

NUT

2шт.

8

SWITCH

(SUB AT60247)

1шт.

9

12H321

WASHER

0.138"

6шт.

10

21H1309

SCREW

0.138" X 1/4"

6шт.

11

AT60247

SWITCH

1шт.

20

T124340

LABEL

(SAW GRAB ARM MODE SWITCH) (INTERMITTENT DUTY SAW HEAD) (SUB FOR AT108576, ALONG WITH T124341)

1шт.

T124341

LABEL

(SAW SWITCH) (CONSTANT DUTY SAW HEAD) (SUB FOR AT108576, ALONG WITH T124340)

1шт.

87

AT77726

RELAY

(INTERMITTENT SAW HEAD)

4шт.

AT77726

RELAY

(CONTINUOUS SAW HEAD)

1шт.

88

14M7303

FLANGE NUT

M6, (INTERMITTENT SAW HEAD)

4шт.

14M7303

FLANGE NUT

M6, (CONTINUOUS SAW HEAD)

1шт.

89

19M7775

SCREW

M6 X 16, (INTERMITTENT SAW HEAD)

4шт.

19M7775

SCREW

M6 X 16, (CONTINUOUS SAW HEAD)

1шт.
