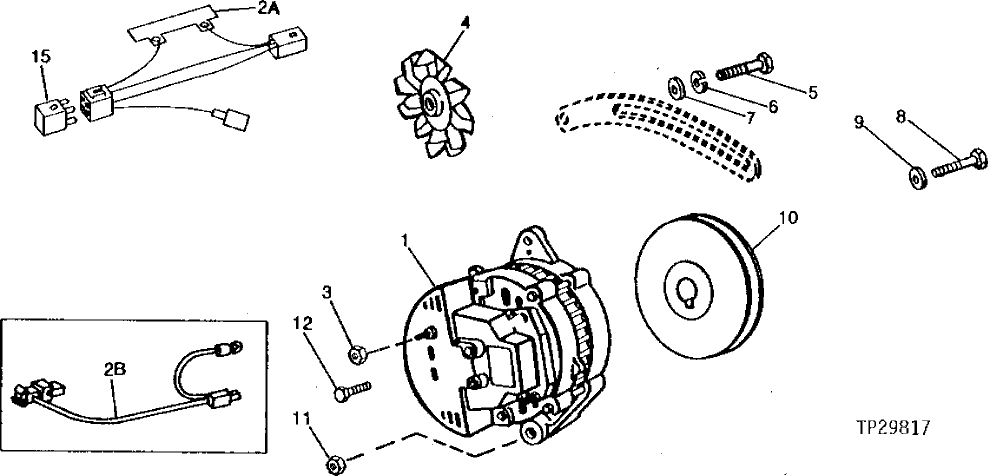

Запчасти John Deere 90D 5 - REPLACEMENT ALTERNATOR AND FAN 1672 - ELECTRICAL SYSTEM 16

1

TY6752

ALTERNATOR

(SUB FOR AT130930) (24 VOLT - 40 AMP)

1шт.

TY6752

ALTERNATOR

(REMANUFACTURED)

1шт.

SE501377

ALTERNATOR

(REMANUFACTURED FOR TY6752)

1шт.

2A

AT131151

WIRING HARNESS

1шт.

2B

AT131151

WIRING HARNESS

(SUB FOR AT142344)

1шт.

3

14M7165

LOCK NUT

M6

1шт.

4

R87764

FAN

1шт.

5

19M7513

CAP SCREW

M8 X 30, (SUB FOR 19M7288)

1шт.

6

12H303

LOCK WASHER

5/16"

1шт.

7

24H1621

WASHER

11/32" X 1" X 0.220"

1шт.

8

19M7329

CAP SCREW

M10 X 75

1шт.

9

24H1822

WASHER

11/32" X 7/8" X 1/16"

1шт.

10

T128132

PULLEY

1шт.

11

14M7274

NUT

M10

1шт.

12

19M7865

SCREW

M8 X 16

1шт.

15

T138822

ELECTRICAL CONNECTOR ASSY

1шт.
