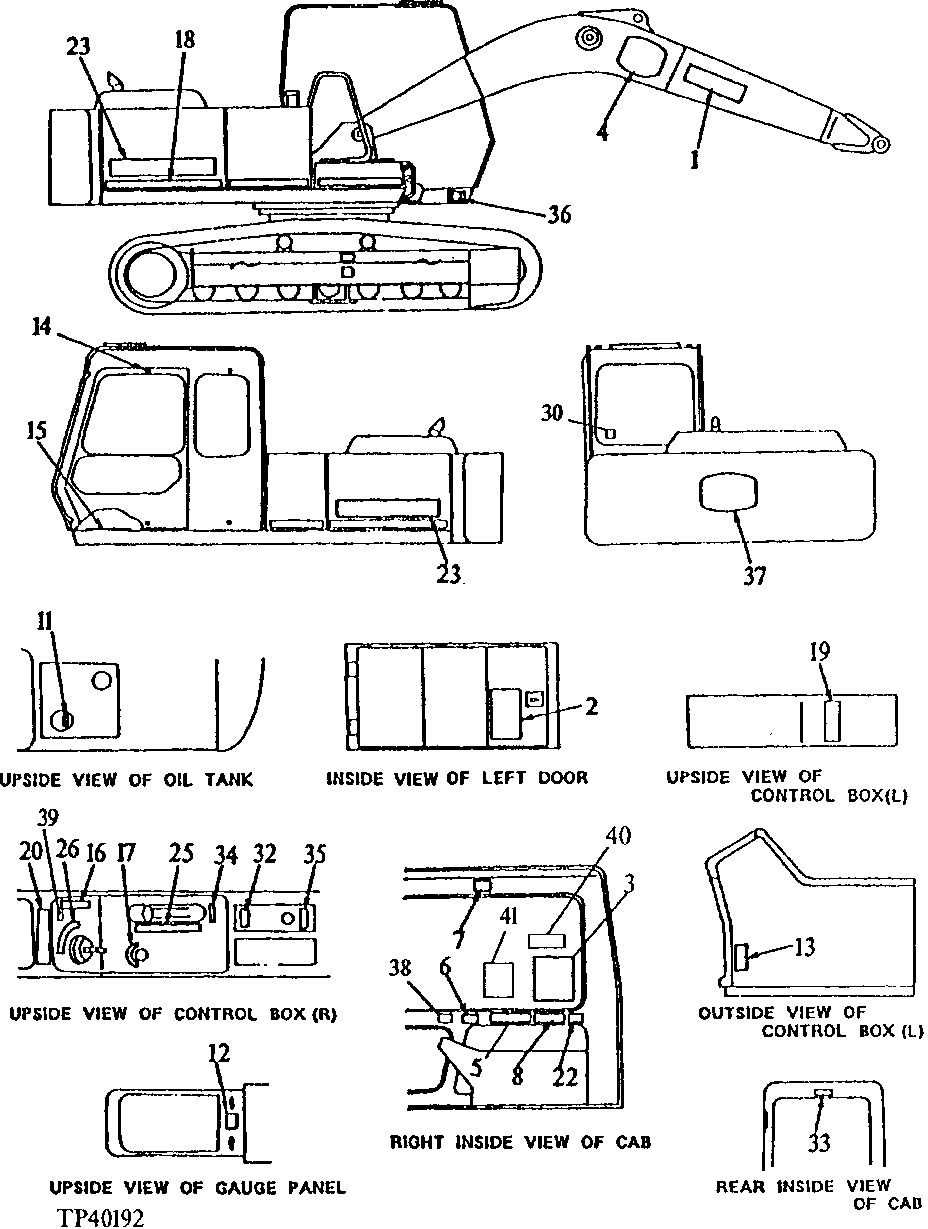

Запчасти John Deere 90D 4 - LABELS AND DECALS 1320 - MISCELLANEOUS VEHICLE 13

22

T108114

LABEL

HEATER - AC

1шт.

T114427

LABEL

HEATER DAMPER DOOR

1шт.

23

JD5614

LABEL

(K1) (K2) JOHN DEERE

2шт.

25

4146722

LABEL

(SUB FOR TH100596) THROTTLE

1шт.

26

4210026

LABEL

(SUB FOR T120640) IGNITION

1шт.

30

T115286

LABEL

(SUB FOR T121747) EMERGENCY EXIT,ENGLISH

1шт.

31

4237785

LABEL

(SUB FOR TH111914) (ON ANGLE ABOVE PUMP) (NOT ILLUSTRATED) (CAUTION)

1шт.

32

4210039

LABEL

(SUB FOR TH111033) (ENGINE STOP)

1шт.

33

T146664

SAFETY SIGN

(SUB FOR TH111901) (WINDOW LOCK)

1шт.

34

4172040

LABEL

(SUB FOR T114454) (THROTTLE)

1шт.

35

4210040

LABEL

(SUB FOR T114455) (STARTING AID)

1шт.

36

37H131

SCREW

0.140" X 3/8"

2шт.

37

JD5628

LABEL

(K2) (LEAPING DEER - ON COUNTERWEIGHT)

1шт.

38

T85353

LABEL

(BOOM PLUMBING)

1шт.

39

T124340

LABEL

(SAW GRAB ARM MODE SWITCH) (INTERMITTENT DUTY SAW HEAD) (SUB FOR AT108576, ALONG WITH T124341)

1шт.

T124341

LABEL

(SAW SWITCH) (CONSTANT DUTY SAW HEAD) (SUB FOR AT108576, ALONG WITH T124340)

1шт.

40

AT131150

LABEL

(WARNING - REDUCED LIFT CAPACITIES)

1шт.

41

T116738

LABEL

(SUB FOR T115289) (CONSTANT SAW CONTROL LEVERS)

1шт.

T116737

LABEL

(SUB FOR T115288) (INTERMITTENT SAW CONTROL LEVERS)

1шт.

T116736

LABEL

(SUB FOR T115287) (SHEAR CONTROL LEVER)

1шт.

AT131226

LABEL

(THUMB CONTROL, FOOT - FOR ROAD BUILDER UNIT)

1шт.

AT131227

LABEL

(THUMB CONTROL, HAND - FOR ROAD BUILDER UNIT)

1шт.
