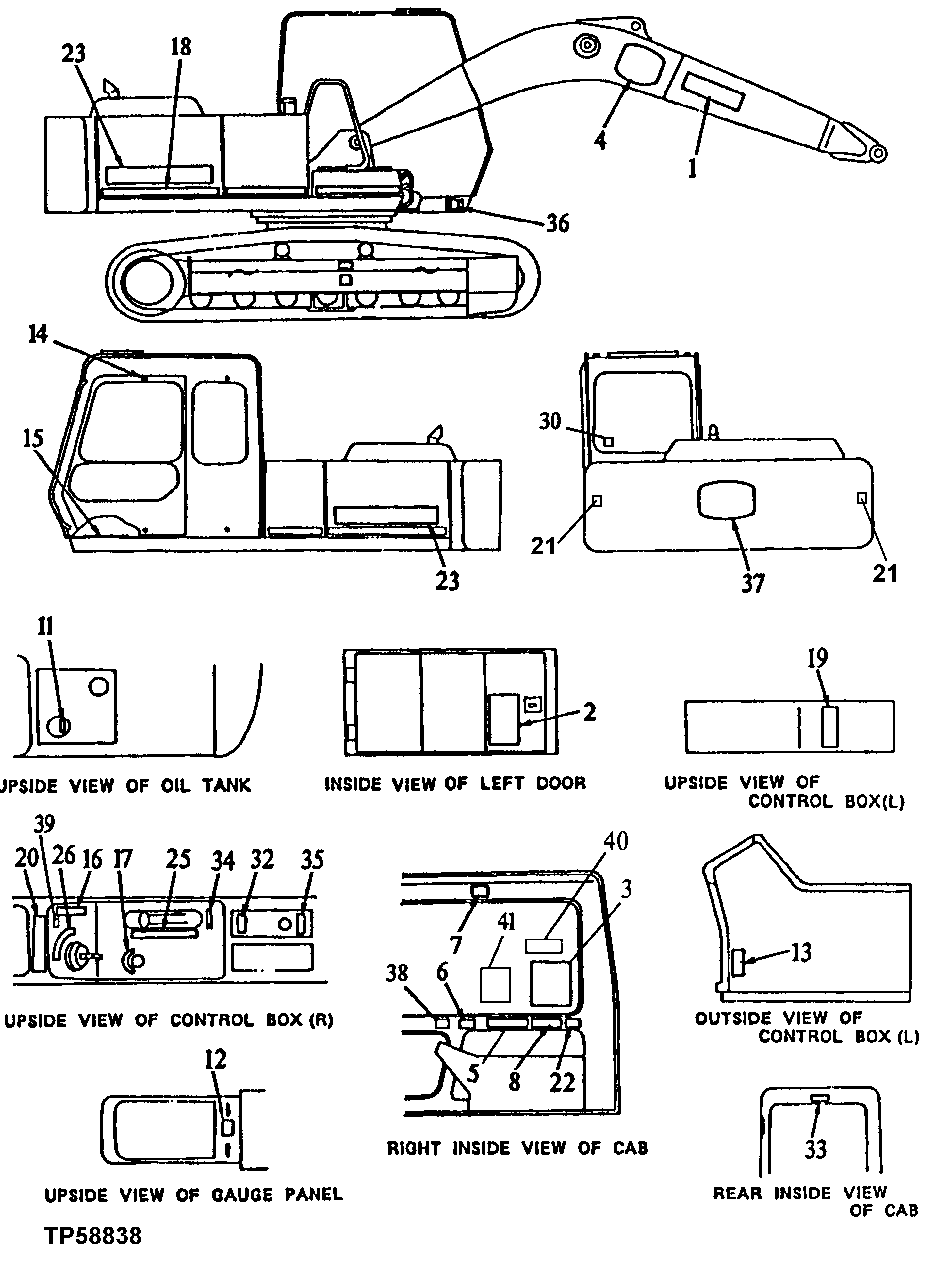

Запчасти John Deere 90D 2 - LABELS AND DECALS 1320 - MISCELLANEOUS VEHICLE 13

1

T107588

LABEL

(K2) MODEL NUMBER - 790D-LC

1шт.

T114704

LABEL

(K1) MODEL DESIGNATION (USE WITH 793D FELLER-BUNCHER CONVERSION)

2шт.

2

LABEL

(SUB TH112075) PERIODIC MAINTENANCE, 790D

1шт.

2028011

LABEL

(SUB FOR TH112075) (K2) PERIODIC MAINTENANCE, 790D (LEFT FENDER)

1шт.

T121746

LABEL

PERIODIC MAINTENANCE, 793D

1шт.

3

T108171

LABEL

LIFT

1шт.

4

JD5627

LABEL

(K2) (LEAPING DEER - ON BOOM)

2шт.

5

T146666

SAFETY SIGN

(SUB FOR T138835) CAUTION

1шт.

6

T146667

SAFETY SIGN

(DANGER - ELECTROCUTION)

1шт.

7

T146668

SAFETY SIGN

(SUB FOR T107627) WARNING

1шт.

8

T107623

LABEL

ENGINE START AND STOP

1шт.

9

T146671

SAFETY SIGN

(SUB FOR T114488) (K2) RADIATOR CAP (NOT ILLUSTRATED)

1шт.

10

T147009

LABEL

(SUB FOR T108183) (K2) RESERVOIR COVER (NOT ILLUSTRATED)

1шт.

11

P63448

LABEL

(SUB FOR T108113 OR AT155733) (K2) BLEED PUMP (ENGLISH)

1шт.

T114803

LABEL

BLEED PUMP (FRENCH)

1шт.

12

4211092

LABEL

(SUB FOR TH110230) CHECK-BUZZER

1шт.

13

4149203

LABEL

(SUB FOR TH101569) CONTROL LEVER LOCK

1шт.

14

T119535

LABEL

(SUB FOR TH101411) (K2) PLATE BUMPER

7шт.

15

H21259

MAT

(K2) CLEAT, OPERATORS DECK

14шт.

16

T108112

LABEL

PROPEL SPEED

1шт.

17

T108168

LABEL

MODE SWITCH

1шт.

18

T107620

LABEL

(K1) (K2) 35 MM BLACK STRIPE

1шт.

19

TH103405

LABEL

CONTROL, LEFT (SAE PATTERN) (WHITE BACKGROUND)

1шт.

T159843

LABEL

(SUB FOR TH101630) CONTROL, LEFT (JOHN DEERE PATTERN) (YELLOW BACKGROUND)

1шт.

20

TH103404

LABEL

CONTROL, RIGHT (SAE PATTERN) (WHITE BACKGROUND)

1шт.

T159844

LABEL

(SUB FOR TH103406) CONTROL, RIGHT (JOHN DEERE PATTERN) (YELLOW BACKGROUND)

1шт.

21

2035960

SAFETY SIGN

(SUB FOR T147008)

2шт.
