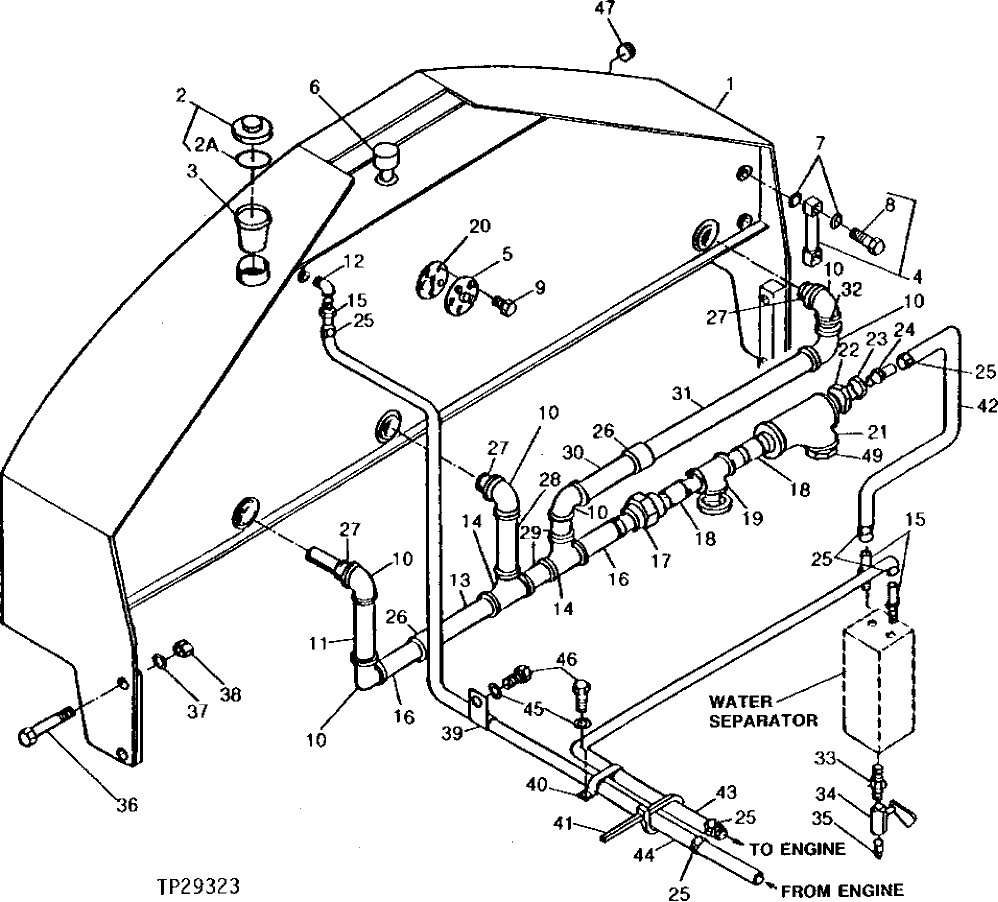

Запчасти John Deere 90D 4 - FUEL TANK AND LINES 560 - ENGINE AUXILIARY SYSTEM 5

1

4D-14533

FUEL TANK

(B)

1шт.

2

AT321249

FILLER CAP

(SUB FOR TH108249, AT175989 OR 4361638) (KEY LOCKABLE) (ORDER KEY SEPARATELY)

1шт.

AT194969

KEY

(SUB FOR AT147803) (H800) (NOT ILLUSTRATED)

1шт.

AT323462

FILLER CAP

(SUB FOR TH108249, AT175989 OR 4361638) (CAN BE LOCKED WITH PADLOCK) (PADLOCK NOT INCLUDED)

1шт.

2A

4168820

PACKING

(SUB FOR TH103384) (USE WITH TH108249 FUEL CAP)

1шт.

3

4121496

FUEL FILTER

(SUB FOR TH100509)

1шт.

4

8033923

LEVEL GAUGE

(SUB FOR TH108250)

1шт.

5

4201926

FUEL SENDER

FUEL LEVEL, (SUB FOR TH108581)

1шт.

6

PBS-40-5

BREATHER

(B)

1шт.

7

449558

WASHER

(SUB FOR TH100675)

4шт.

8

4100967

BOLT

(SUB FOR TH101894)

2шт.

9

12M7064

LOCK WASHER

5 MM

5шт.

21M7278

SCREW

M5 X 10

5шт.

10

565025101

ELBOW FITTING

(B) SOCKET WELD

6шт.

11

THREADED NIPPLE

MAKE FROM STANDARD PIPE

1шт.

12

565029001

ELBOW FITTING

(B) STREET

1шт.

13

569024103

THREADED NIPPLE

(B)

1шт.

14

565038101

TEE FITTING

(B) SOCKET WELD

2шт.

15

FITTING

0.375 NPT MX 0.250 BARBED M

3шт.

16

569024106

THREADED NIPPLE

(B)

2шт.

17

565007001

UNION FITTING

(B)

1шт.

18

569024102

THREADED NIPPLE

(B)

2шт.

19

565088101

SHUT-OFF VALVE

(B) GATE, BRONZE

1шт.

20

T211051

GASKET

(SUB FOR U42323)

1шт.

21

565085101

FITTING

(B) "Y"

1шт.

22

565090101

ADAPTER FITTING

(B)

1шт.

23

545090102

ADAPTER FITTING

(B)

1шт.

24

565091101

FITTING

(B)

1шт.

25

TY22464

CLAMP

(SUB FOR TH100896 AND AT145649) (SUB FOR AR21836)

6шт.

26

565009001

UNION FITTING

(B) SOCKET WELD

2шт.

27

569024101

THREADED NIPPLE

(B)

3шт.

28

569024104

THREADED NIPPLE

(B)

1шт.

29

569024105

THREADED NIPPLE

(B)

2шт.

30

569024107

THREADED NIPPLE

(B)

1шт.

31

569024108

THREADED NIPPLE

(B)

1шт.

32

569024109

THREADED NIPPLE

(B)

1шт.

33

T116057

FITTING

(SUB FOR TH101997)

1шт.

34

4374265

DRAIN VALVE

(SUB FOR TH111035) (SUB FOR AT177419)

1шт.

35

M800462

PLUG

(SUB FOR TH101049)

1шт.

36

545059101

CAP SCREW

(B)

4шт.

37

24H1452

WASHER

1-1/32" X 1-3/4" X 0.105"

4шт.

38

T34950

NUT

4шт.

39

4235654

CLIP

(SUB FOR TH108594) (SUB FOR AT122384)

1шт.

40

R50454

CLAMP

(SUB FOR TH109445 OR 4192034)

1шт.

41

H77698

TIE BAND

2шт.

42

AT108681

FUEL LINE

ARшт.

43

AT108578

FUEL LINE

ARшт.

44

AT108561

FUEL LINE

ARшт.

45

12M7066

LOCK WASHER

10 MM

4шт.

46

19M8324

CAP SCREW

M10 X 16

4шт.

47

15H248

PIPE PLUG

1-1/4", (SUB FOR AT108744)

1шт.
