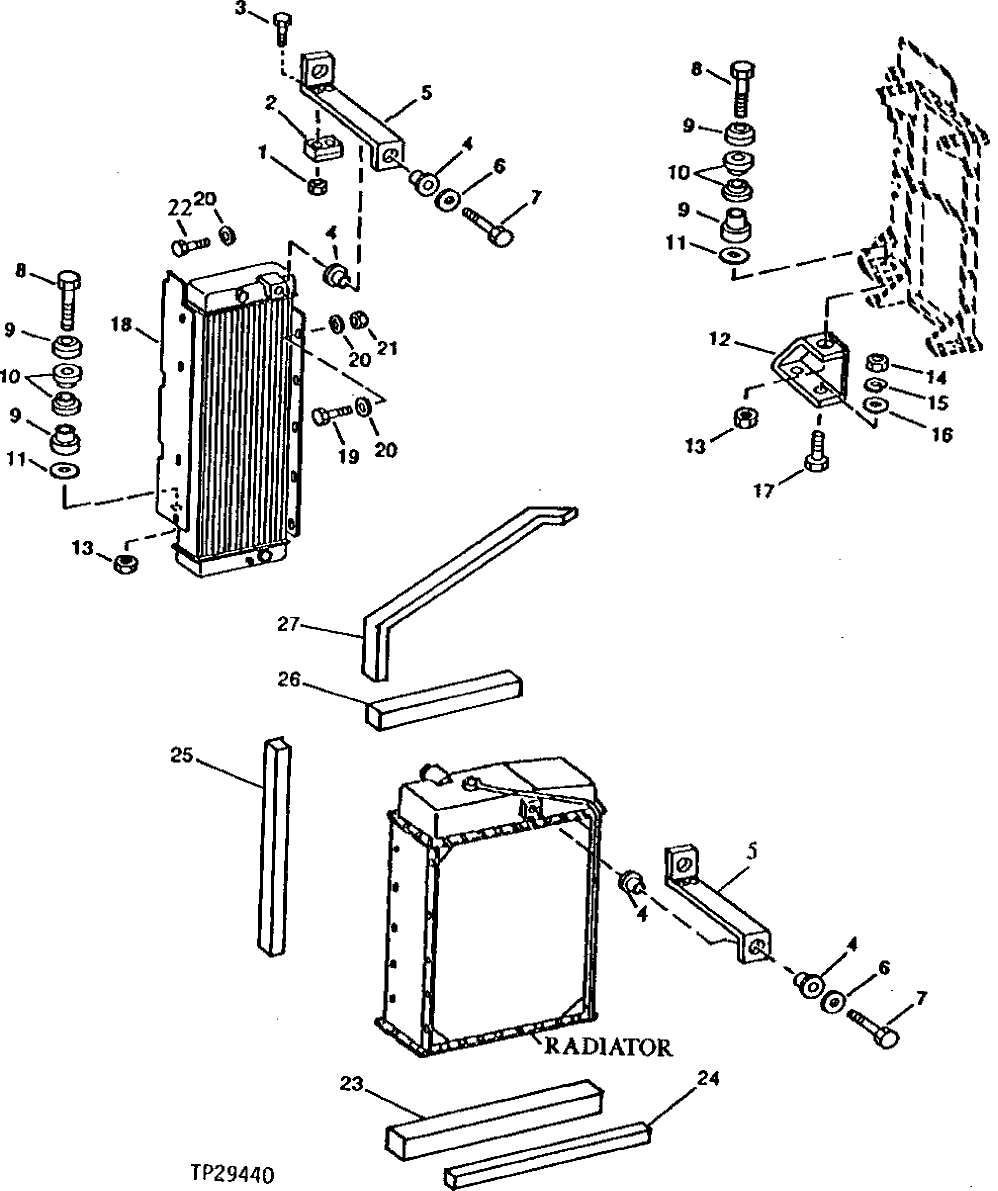

Запчасти John Deere 90D 6 - OIL COOLER WITH RADIATOR AND OIL COOLER MOUNTING PARTS 510 - ENGINE AUXILIARY SYSTEM 5

1

14H1076

NUT

3/8"

4шт.

2

T121604

BRACKET

1шт.

3

19H3239

CAP SCREW

3/8" X 1-1/4"

4шт.

4

AT72254

ISOLATOR

8шт.

5

T121605

BRACKET

2шт.

AT108833

BRACKET

2шт.

6

24H1347

WASHER

17/32" X 2" X 0.194"

4шт.

7

19H3472

CAP SCREW

5/8" X 9-3/4"

4шт.

8

08H4086

CAP SCREW

5/8" X 6-3/4"

2шт.

9

AT199884

ISOLATOR

(SUB FOR AT59649)

4шт.

10

T62324

SPACER

4шт.

11

Q31453

WASHER

(SUB FOR E51414, THIS APPLICATION)

2шт.

12

AT125539

SUPPORT

RIGHT

1шт.

AT125540

SUPPORT

LEFT (NOT ILLUSTRATED)

1шт.

13

14H1039

NUT

5/8"

2шт.

14

14H1039

NUT

5/8"

4шт.

15

12H294

LOCK WASHER

5/8"

4шт.

16

24H1139

WASHER

11/16" X 1-1/4" X 0.105"

4шт.

17

19H2008

CAP SCREW

5/8" X 1-5/8", LOWER RADIATOR BRACKET TO MAIN FRAME

4шт.

18

AT131454

OIL COOLER

(SUB FOR AT80349, THIS APPLICATION)

1шт.

19

19H2284

CAP SCREW

3/8" X 7/8"

5шт.

20

24M7296

WASHER

11шт.

21

14H1076

NUT

3/8"

3шт.

22

19H3239

CAP SCREW

3/8" X 1-1/4", (REAR FLANGE)

3шт.

23

T114363

BAR

1шт.

24

T114364

ISOLATOR

1шт.

25

AT108831

PAD

(CORNER OF FUEL TANK TO HOUSE)

1шт.

26

AT108832

PAD

(SIDE OF FUEL TANK TO HOUSE)

1шт.

27

AT108830

PAD

(OIL COOLER TO HOUSE AND FUEL TANK)

1шт.
