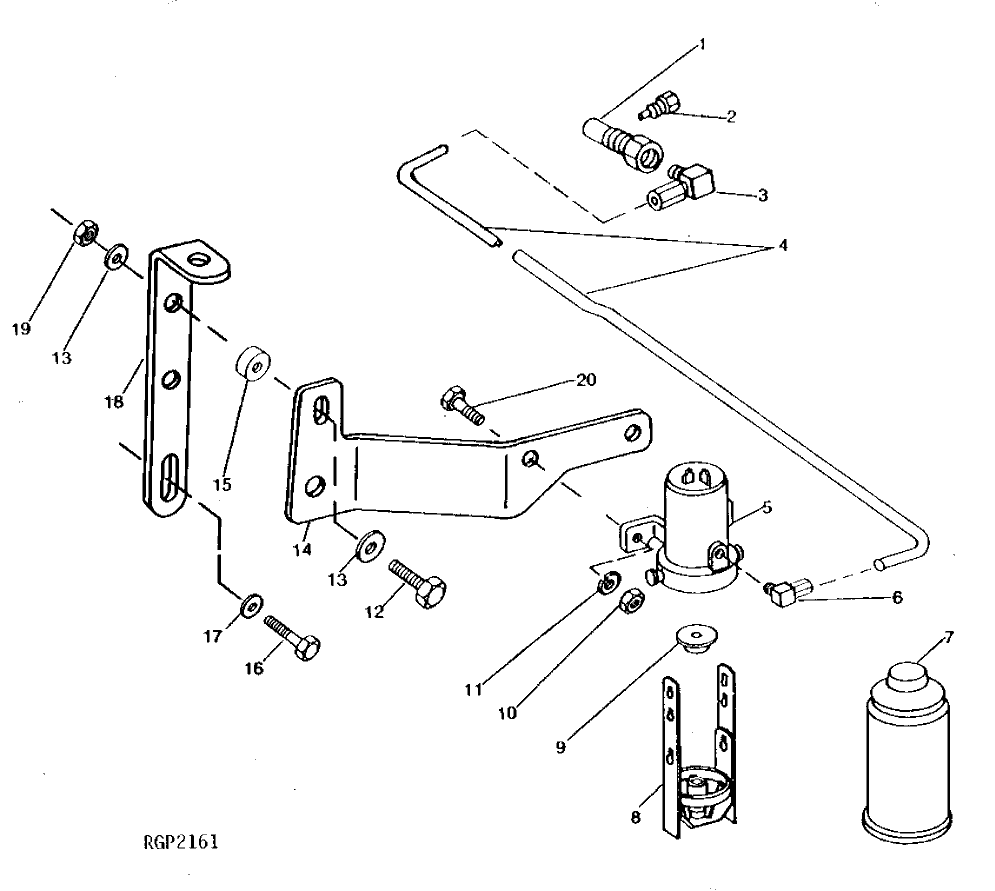

Запчасти John Deere 90D 2 - COLD WEATHER STARTING AID 505 - ENGINE AUXILIARY SYSTEM 5

1

R47160

NOZZLE HOLDER

1шт.

2

T155858

NOZZLE

(SUB FOR R28583)

1шт.

3

RE21790

ELBOW FITTING

(SUB FOR AT25266)

1шт.

4

STRUCTURAL TUBING

(SUB RE16151)

1шт.

5

RE48311

STARTING AID

(SUB FOR AT41998 OR AT105778) (SUB RE48311) (SUB FOR AT125915)

1шт.

RE48311

STARTING AID

(SUB FOR AT125915)

1шт.

6

RE21790

ELBOW FITTING

(SUB FOR AT25266)

1шт.

7

RE33636

STARTING FLUID

(SUB FOR AR27814, RE24561 OR RE30174)

1шт.

8

AT57288

BAIL

1шт.

9

T46726

GASKET

1шт.

10

14H785

NUT

5/16"

2шт.

11

12H304

LOCK WASHER

3/8", (NOT REQUIRED WITH E55662)

2шт.

12

19H1801

CAP SCREW

3/8" X 2"

2шт.

13

24H1309

WASHER

13/32" X 1-1/16" X 0.120"

4шт.

14

R59767

BRACKET

(SUB R85140)

1шт.

15

28H1495

SPACER

3/8" X 1"

2шт.

16

19H3651

SCREW

5/8" X 1-1/4"

1шт.

17

24H1139

WASHER

11/16" X 1-1/4" X 0.105"

1шт.

18

R63858

SUPPORT

(SUB R85140)

1шт.

19

E55662

FLANGE NUT

2шт.

20

19H2127

CAP SCREW

5/16" X 7/8"

2шт.
