Запчасти John Deere 90D 1 - ALTERNATOR AND GENERATOR MOUNTING 423 - ENGINE 4

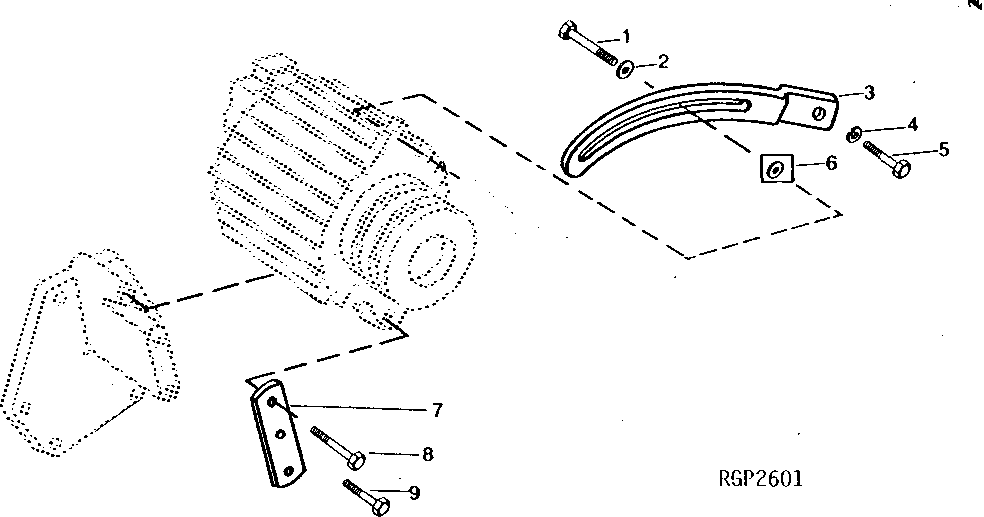

Схема запчастей John Deere 90D - 1 - ALTERNATOR AND GENERATOR MOUNTING 423 - ENGINE 4

Артикул

Название

Примечание

Количество

1

19H1905

CAP SCREW

5/16" X 1"

1шт.

19H3552

CAP SCREW

5/16" X 1-1/2"

1шт.

19H1813

CAP SCREW

5/16" X 5/8"

1шт.

19H2127

CAP SCREW

5/16" X 7/8"

1шт.

2

12H303

LOCK WASHER

5/16"

1шт.

24H1136

WASHER

11/32" X 11/16" X 0.065"

1шт.

24H1292

WASHER

11/32" X 3/4" X 0.120"

1шт.

3

R79736

STRAP

1шт.

R72089

STRAP

(SUB R86764, THIS APPLICATION) (ALSO ORDER 19H1813 AND 24H1136)

1шт.

R86764

STRAP

(USE WITH PRESTOLITE/MOTOROLA ALTERNATOR) (SUB R108685)

1шт.

R108685

STRAP

(USE WITH DELCO ALTERNATOR)

1шт.

4

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

1шт.

5

19M7139

CAP SCREW

M8 X 20

1шт.

6

R56397

WASHER

8.738 X 20.066 X 4.775 MM (11/32" X 0.790" X 3/16")

1шт.

7

R79787

STRAP

1шт.

8

19H2128

CAP SCREW

3/8" X 3"

1шт.

9

19M7402

CAP SCREW

M10 X 25

2шт.

Выбрано товаров: 17
