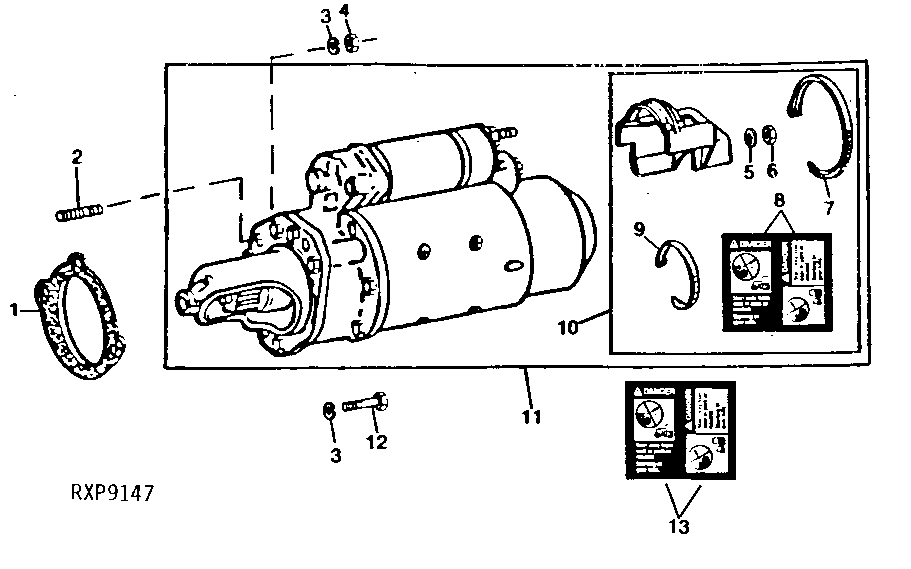

Запчасти John Deere 90D 7 - STARTING MOTOR 422 - ENGINE 4

1

R53108

GASKET

1шт.

2

R114130

STUD

(SUB FOR R55396, APPL)

1шт.

3

12H304

LOCK WASHER

3/8", (NOT REQUIRED WITH E55662)

3шт.

4

E55662

FLANGE NUT

1шт.

5

AR102763

NUT

1шт.

6

14H631

NUT

0.190"

1шт.

7

H113196

TIE BAND

(SUB FOR R76477 OR R45440)

1шт.

8

T146102

LABEL

(ENGLISH) (SUB FOR T134459)

1шт.

9

R44302

TIE BAND

1шт.

10

RE41759

SHIELD

(DELCO-REMY) (CONTAINED IN RE43300)

1шт.

11

RE43300

STARTER MOTOR KIT

(DELCO-REMY NO. 1993917) (SUB RE65175, APPL) (CONTAINS RE41759) (SUB FOR RE38632) (6466AT-10, AT-11, AT-12, AT-14 AND TT-07)

1шт.

RE43300

STARTER MOTOR KIT

(6466AT-06, AT-13, AT-09) (MARKED RE38632) (SUB RE65175, APPL)

1шт.

RE48134

KIT

(6466AT-10,AT-11, AT-12, AT-14 & TT-07, APPL) (MARKED RE48077) (SUB RE65175, APPL)

1шт.

RE65175

STARTER MOTOR KIT

(DELCO-REMY NO. 10478819) (MARKED RE59586)

1шт.

12

19H3219

CAP SCREW

3/8" X 1-3/8"

2шт.

13

T146106

SAFETY SIGN

(SPANISH) (SUB FOR T84410 OR T134452)

1шт.

T146104

SAFETY SIGN

(FRENCH) (SUB FOR T84411 OR T134453)

1шт.

T146515

SAFETY SIGN

(GERMAN) (SUB FOR T84412 OR T134454)

1шт.

T146516

SAFETY SIGN

(ITALIAN) (SUB FOR T84413 OR T134455)

1шт.

T146517

SAFETY SIGN

(ENGLISH/FRENCH) (SUB FOR T84578 OR T134456)

1шт.
