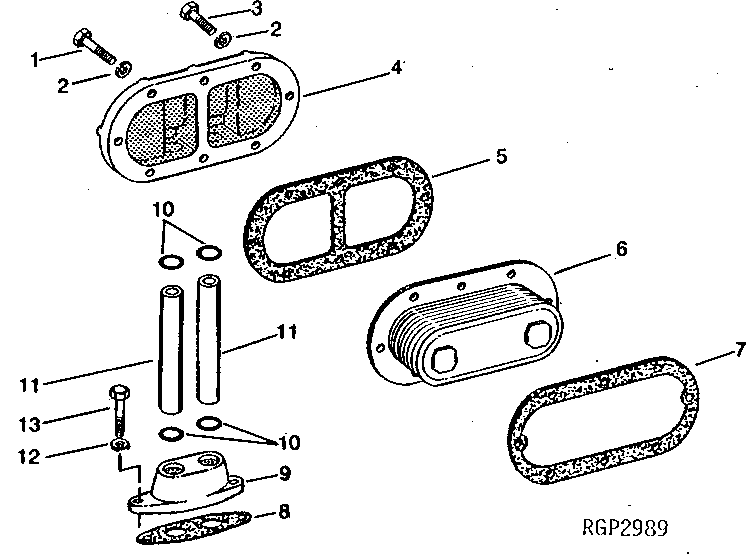

Запчасти John Deere 90D 3 - ENGINE OIL COOLER 419 - ENGINE 4

1

19H2703

CAP SCREW

5/16" X 2-1/8"

1шт.

2

12H303

LOCK WASHER

5/16", (NO LONGER REQUIRED)

8шт.

3

19H2661

CAP SCREW

5/16" X 1-3/8"

7шт.

4

R51283

COVER

1шт.

5

R50419

GASKET

1шт.

6

AR55394

OIL COOLER

1шт.

7

AR58952

GASKET

1шт.

8

R50424

GASKET

1шт.

9

R50423

ADAPTER FITTING

1шт.

10

R47153

O-RING

4шт.

11

R51053

OIL TUBE

2шт.

12

12H304

LOCK WASHER

3/8", (NO LONGER REQUIRED)

2шт.

13

19H3483

CAP SCREW

3/8" X 1-1/8"

2шт.
