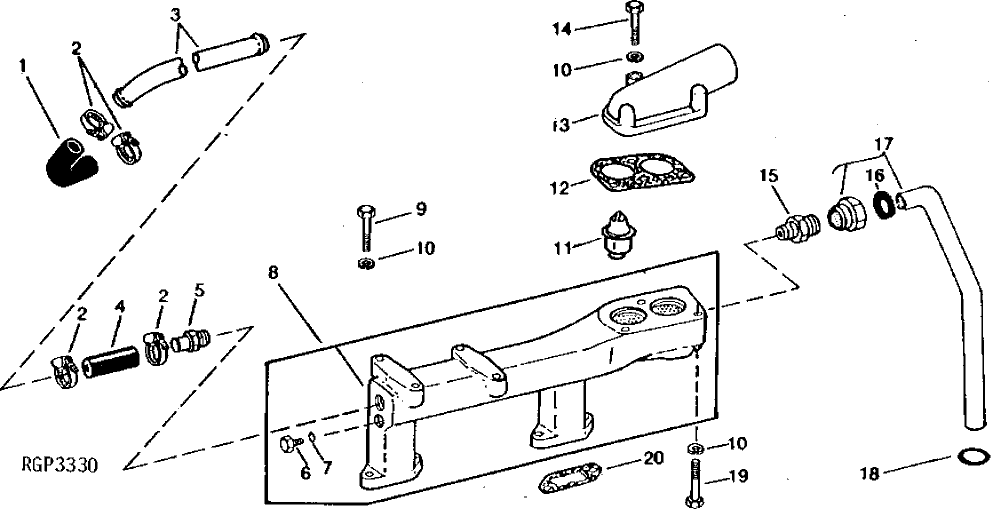

Запчасти John Deere 90D 2 - WATER OUTLET MANIFOLD AND THERMOSTATS 418 - ENGINE 4

1

R47430

HOSE

1шт.

2

TY22467

CLAMP

(SUB FOR AR21839)

4шт.

3

R61128

LINE

1шт.

4

A5203R

HOSE

22 MM X 76 MM (7/8" X 3") (20R2)

1шт.

5

R48362

ADAPTER FITTING

1шт.

6

R82719

FITTING PLUG

(SUB FOR R27094, APPL)

1шт.

7

R26286

O-RING

1шт.

8

RE12848

MANIFOLD

(MARKED R78123 OR R50415) (SUB R78123, R26286 AND R82719)

1шт.

R78123

MANIFOLD

(NOT AS SHOWN)

1шт.

9

19H3219

CAP SCREW

3/8" X 1-3/8"

4шт.

10

12H304

LOCK WASHER

3/8"

7шт.

11

AR48675

THERMOSTAT

82°C (180°F) (770A,772A,770AH,772AH OR 793D)

2шт.

AR48675

THERMOSTAT

82° (180°F) (790,792,790D,892D-LC)

1шт.

R100671

PLUG

(EITHER OPENING) (USE WITH (1) AR48675) (790,792,790D,892D-LC)

1шт.

12

R124607

GASKET

(SUB FOR R46479)

1шт.

13

R58721

COVER

1шт.

14

19H1733

CAP SCREW

3/8" X 2-1/2"

1шт.

15

R76560

COUPLING

1шт.

16

R76558

SLEEVE

1шт.

17

AR103815

OIL LINE

1шт.

18

R47153

O-RING

1шт.

19

19H2128

CAP SCREW

3/8" X 3"

2шт.

20

R88397

GASKET

(SUB FOR R42693)

2шт.
