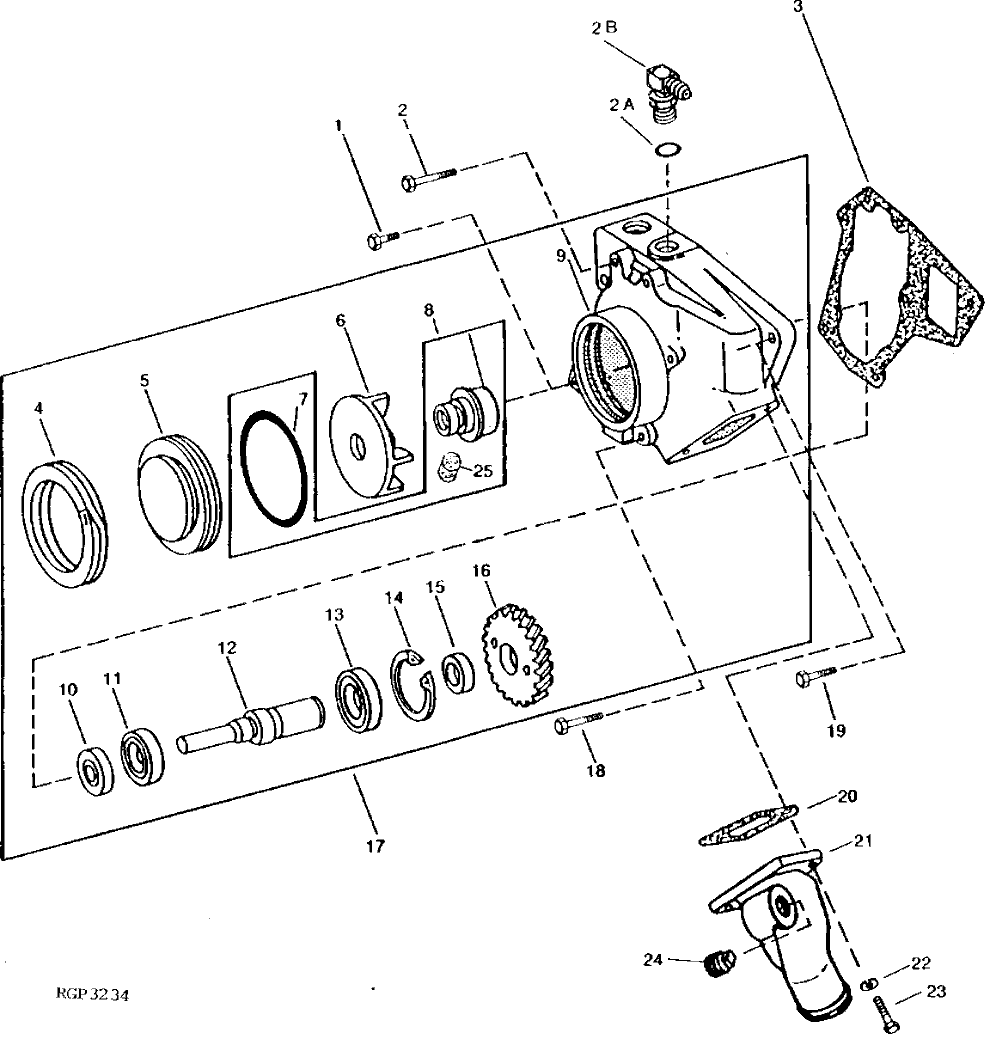

Запчасти John Deere 90D 2 - WATER PUMP 417 - ENGINE 4

1

R39305

CAP SCREW

2шт.

2

19H2104

CAP SCREW

3/8" X 5"

3шт.

2A

R26906

O-RING

1шт.

2B

AR26724

ELBOW FITTING

1шт.

3

R520580

GASKET

(SUB FOR R71315)

1шт.

4

R78696

SNAP RING

1шт.

5

R71226

COVER

1шт.

6

R71225

IMPELLER

1шт.

7

R71596

O-RING

1шт.

8

RE69844

KIT

(SUB FOR RE12940, RE24772 OR RE55992)

1шт.

9

R83561

HOUSING

1шт.

10

AR93518

SEAL

(SUB RE39134)

1шт.

RE39134

SEAL

1шт.

11

JD10363

BALL BEARING

(FRONT) (USE WITH R83561)

1шт.

12

SHAFT

(SUB RE69847)

1шт.

13

JD10362

BALL BEARING

(REAR) (USE WITH R83561)

1шт.

14

R71228

RING

1шт.

15

R70964

WASHER

1шт.

16

R71037

GEAR

1шт.

17

RE23291

WATER PUMP

(MARKED R83561) (SUB SE500912)

1шт.

RE55985

WATER PUMP

(MARKED R83561) (SUB FOR RE43131) (SUB SE500912)

1шт.

SE500912

WATER PUMP

(REMANUFACTURED) (SUB FOR RE23291, RE43131 OR RE55985)

1шт.

18

19H2996

CAP SCREW

5/16" X 5"

1шт.

19

19H2023

CAP SCREW

3/8" X 3-1/4"

1шт.

20

R71361

GASKET

1шт.

21

R85128

HOUSING

1шт.

22

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

23

19M7513

CAP SCREW

2шт.

24

R39503

FITTING

1шт.

25

R98527

FILTER

(WEEP HOLE)

1шт.
