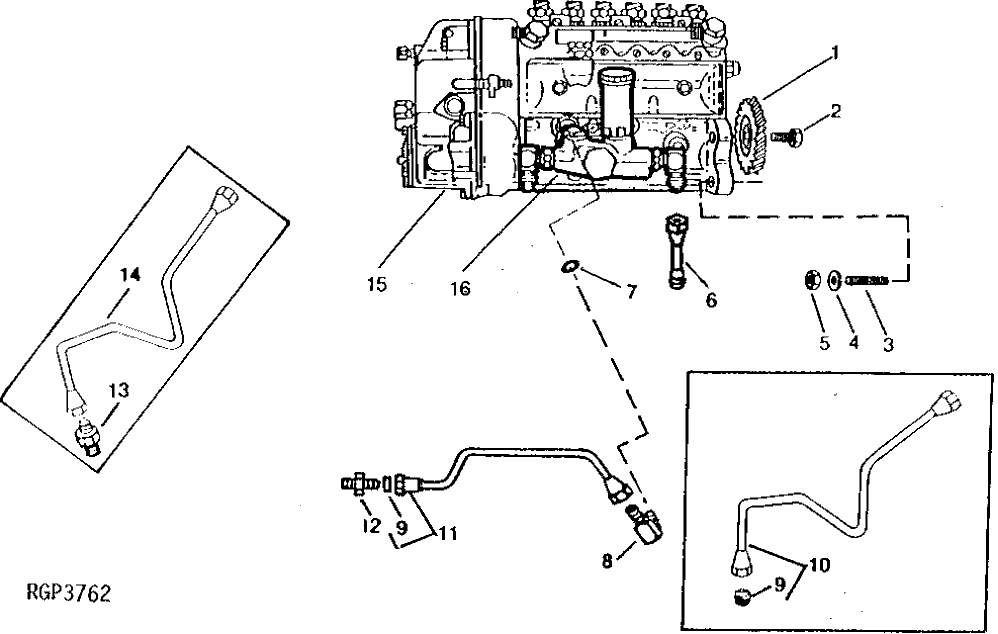

Запчасти John Deere 90D 4 - FUEL INJECTION PUMP AND LUBE LINES 413 - ENGINE 4

1

R68274

GEAR

(SUB FOR AR88905,APPL)

1шт.

2

AR59115

SELF-LOCKING SCREW

3/8" X 0.870", (SUB 19H3336 AND R63845)

3шт.

19H3336

SCREW

3/8" X 7/8"

3шт.

R63845

WASHER

3шт.

3

R114130

STUD

(SUB FOR R55396, APPL.)

4шт.

4

M72490

WASHER

(SUB FOR R42729)

4шт.

5

14H1090

NUT

3/8", (SUB FOR R32511 OR E55662, APPL.)

4шт.

6

RE16302

FITTING

1шт.

7

R79060

O-RING

1шт.

8

AR26746

ELBOW FITTING

1шт.

9

R67264

PACKING

1шт.

10

RE38732

OIL LINE

(SUB FOR AR91012 OR RE33486)

1шт.

11

RE49899

OIL LINE

1шт.

12

R76822

FITTING

(USE WITH RE33486, RE38732 OR RE49899)

1шт.

13

R39832

ADAPTER FITTING

(USE WITH AR91012) (6466AT 07, 08, 13)

1шт.

14

AR91012

LINE

(SUB RE38732 AND R76822, APPL) (6466AT 07, 08, 13)

1шт.

15

RE16219

FUEL INJECTION PUMP

(A) (ROBERT BOSCH) (SUB RE23754) (6466AT 07)

1шт.

SE500150

FUEL INJECTION PUMP

(C)

1шт.

RE23927

FUEL INJECTION PUMP

(A) (ROBERT BOSCH) (SUB RE23754) (6466AT07)

1шт.

SE500151

FUEL INJECTION PUMP

(C)

1шт.

RE23754

FUEL INJECTION PUMP

(C) (ROBERT BOSCH) (6466AT 07) (790) (SUB FOR RE16219) (ORDER RE23927) (SUB RE29233) (SUB T82383 AND (2) 19M8731)

1шт.

SE500177

FUEL INJECTION PUMP

(C)

1шт.

RE16221

FUEL INJECTION PUMP

(A) (ROBERT BOSCH PES6A100D410R52676-01) (ALSO ORDER T82383 AND (2) 19M8731) (SUB FOR RE29233) (790)

1шт.

RE28036

FUEL INJECTION PUMP

(A) (B) (SUB FOR RE16221) (ALSO ORDER 51M4238 AND (2) 51M4237) (SUB RE28030 AND RE81295) (ROBERT BOSCH) (6466AT 08) (792)

1шт.

RE28030

FUEL INJECTION PUMP

(A) (B) (SUB FOR RE28036) (ALSO ORDER R81295, 19M8731 AND (2) 51M4237) (ROBERT BOSCH)

1шт.

RE44344

FUEL INJECTION PUMP

(A) (SUB FOR RE29233) (ALSO ORDER T82383 AND (2) 19M8731) (ROBERT BOSCH PES6A100D410R52676-01)(790)

1шт.

SE500148

FUEL INJECTION PUMP

(C) (790D ONLY)

1шт.

16

FUEL PUMP

(SUB RE20042, AR104674 AND RE10258)

1шт.
