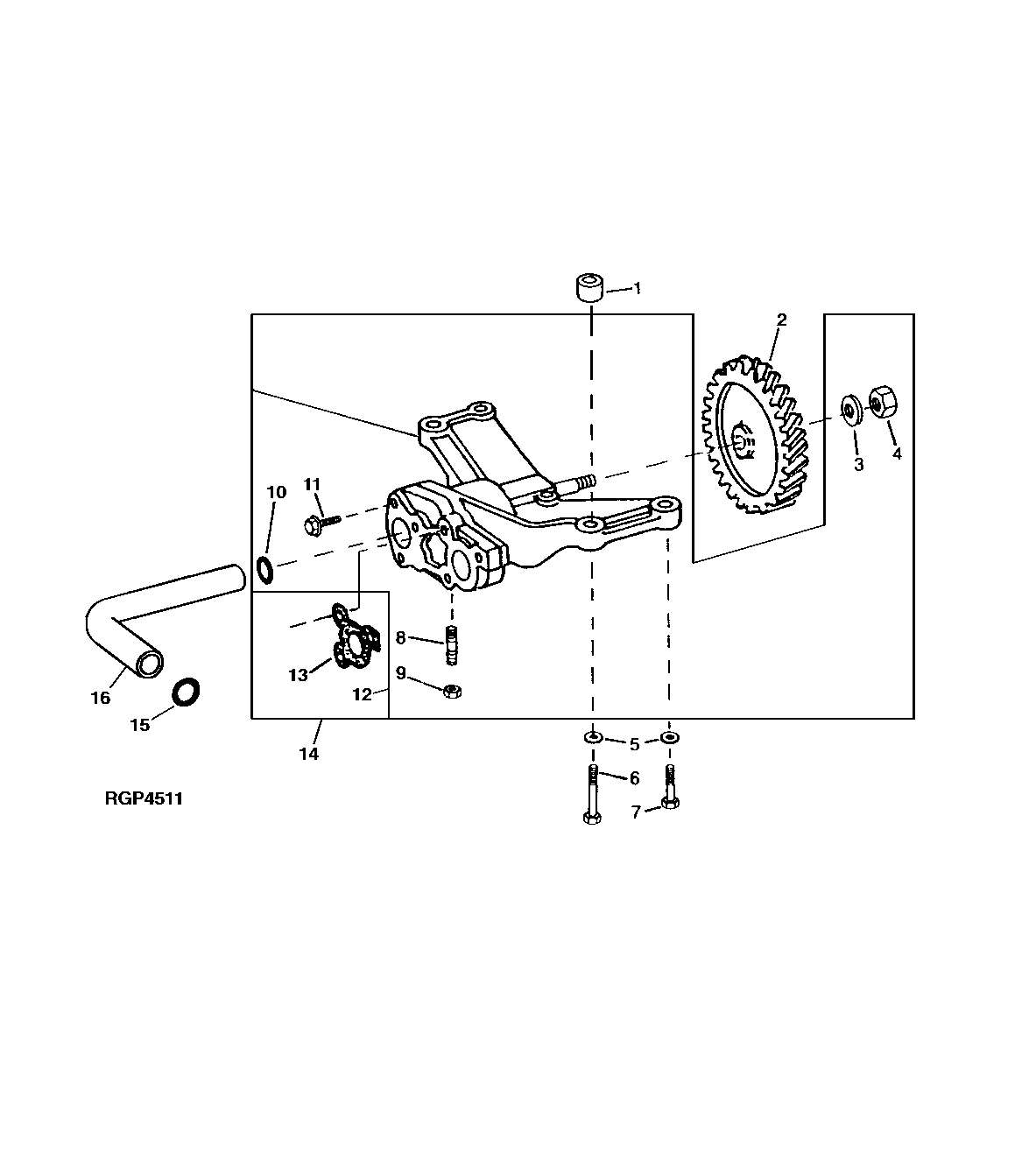

Запчасти John Deere 90D 10 - ENGINE OIL PUMP (CRANKSHAFT DRIVEN) 407 - ENGINE 4

1

R62930

BUSHING

(SUB R500642)

2шт.

R500642

BUSHING

2шт.

2

R62938

GEAR

1шт.

3

T21242

WASHER

1шт.

4

14H826

NUT

1/2"

1шт.

5

R57696

WASHER

4шт.

6

19H2549

CAP SCREW

3/8" X 1-7/8"

2шт.

7

19H3219

CAP SCREW

3/8" X 1-3/8"

2шт.

8

22H1040

SET SCREW

5/16" X 1-1/4"

1шт.

9

14H785

NUT

5/16"

1шт.

10

R71732

O-RING

1шт.

11

R104628

SCREW

2шт.

R104628

SCREW

(INTAKE COVER TO HOUSING)

3шт.

12

RE44118

OIL PUMP

(A) (MARKED R62946) (SUB FOR AR99344 OR AR96193, APPL) (USED W/ RE60819 OR RE42809) (SUB SE501063, THIS APPLICATION)

1шт.

SE501063

OIL PUMP

(REMANUFACTURED)

1шт.

13

R100569

GASKET

1шт.

14

RE60622

OIL PUMP

(MARKED R124328) (SUB SE501063, THIS APPLICATION)

1шт.

SE501063

OIL PUMP

(REMANUFACTURED)

1шт.

15

R71732

O-RING

1шт.

16

R62952

OIL TUBE

1шт.
