Запчасти John Deere 90D 4 - OIL PAN 407 - ENGINE 4

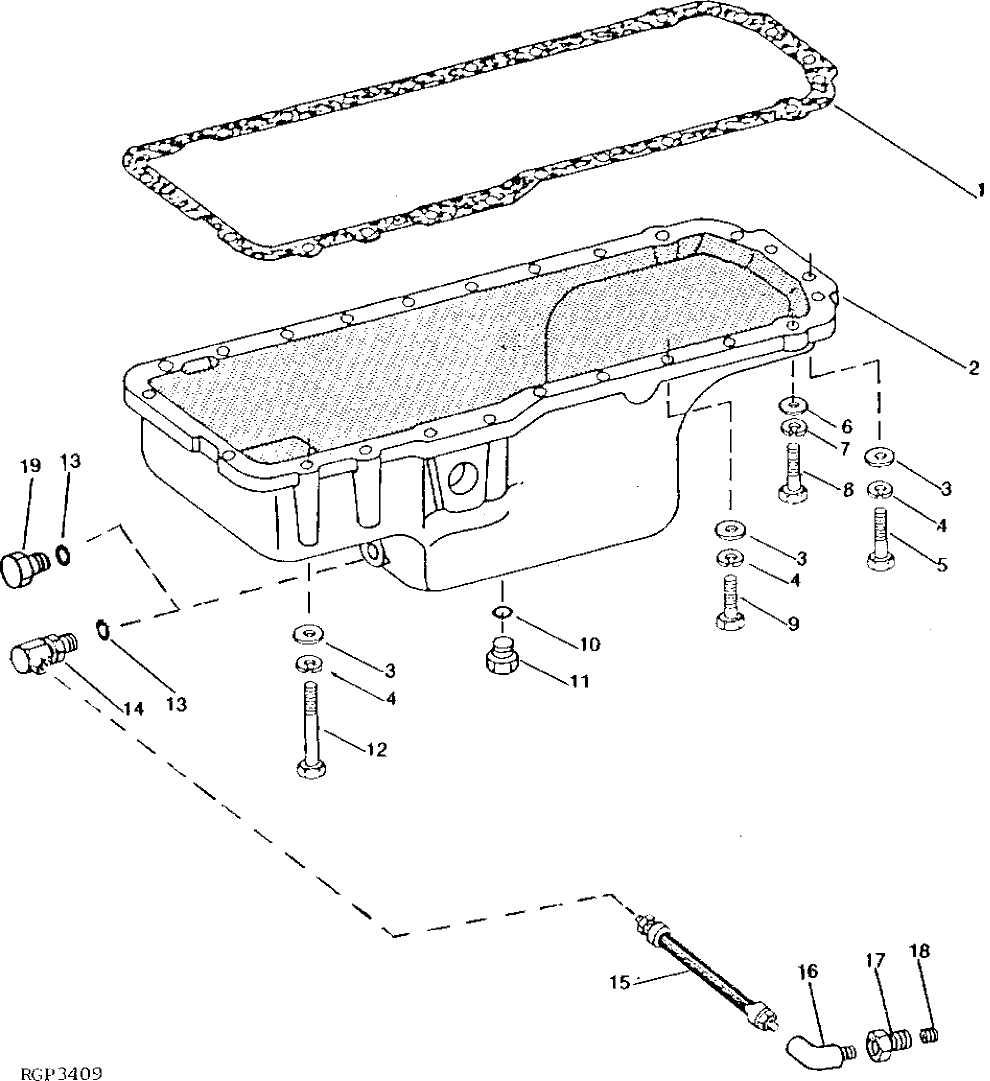

Схема запчастей John Deere 90D - 4 - OIL PAN 407 - ENGINE 4

Артикул

Название

Примечание

Количество

1

R49377

GASKET

(SUB RE504822)

1шт.

RE504822

GASKET

(SUB FOR R49376 AND R49377)

1шт.

2

RE18726

OIL PAN

(SUB RE52106, R47151, R27474 AND 15H690)

1шт.

3

24H1305

WASHER

13/32" X 13/16" X 0.065"

22шт.

4

12H304

LOCK WASHER

3/8"

22шт.

5

19H3485

CAP SCREW

3/8" X 2"

2шт.

6

24H1756

WASHER

1/2" X 1" X 0.060"

2шт.

7

12H301

LOCK WASHER

1/2"

2шт.

8

19H2473

CAP SCREW

1/2" X 1-3/4"

2шт.

9

19H3267

CAP SCREW

3/8" X 1-5/8"

18шт.

10

A4827R

WASHER

25.400 X 31.700 X 1.500 MM (1" X 1.248" X 0.059")

1шт.

11

R26727

DRAIN PLUG

1шт.

12

19H3504

CAP SCREW

3/8" X 5-3/8"

2шт.

13

F3171R

O-RING

1шт.

14

AU40690

ELBOW FITTING

(USE WITH AR94245, RE18726 OR RE45439) ((644D, 762A, 762B)

1шт.

15

AU11507

HYDRAULIC HOSE - FABRICATE

(644D,762A,762B)

1шт.

16

15H602

ELBOW FITTING

(762A,762B)

1шт.

17

R56407

FITTING

(644D,762A,762B)

1шт.

18

15H584

PIPE PLUG

1/2" (644D,762A,762B)

1шт.

19

R27175

DRAIN PLUG

(690C,693C,790D,793D,892D-LC)

1шт.

Выбрано товаров: 20
