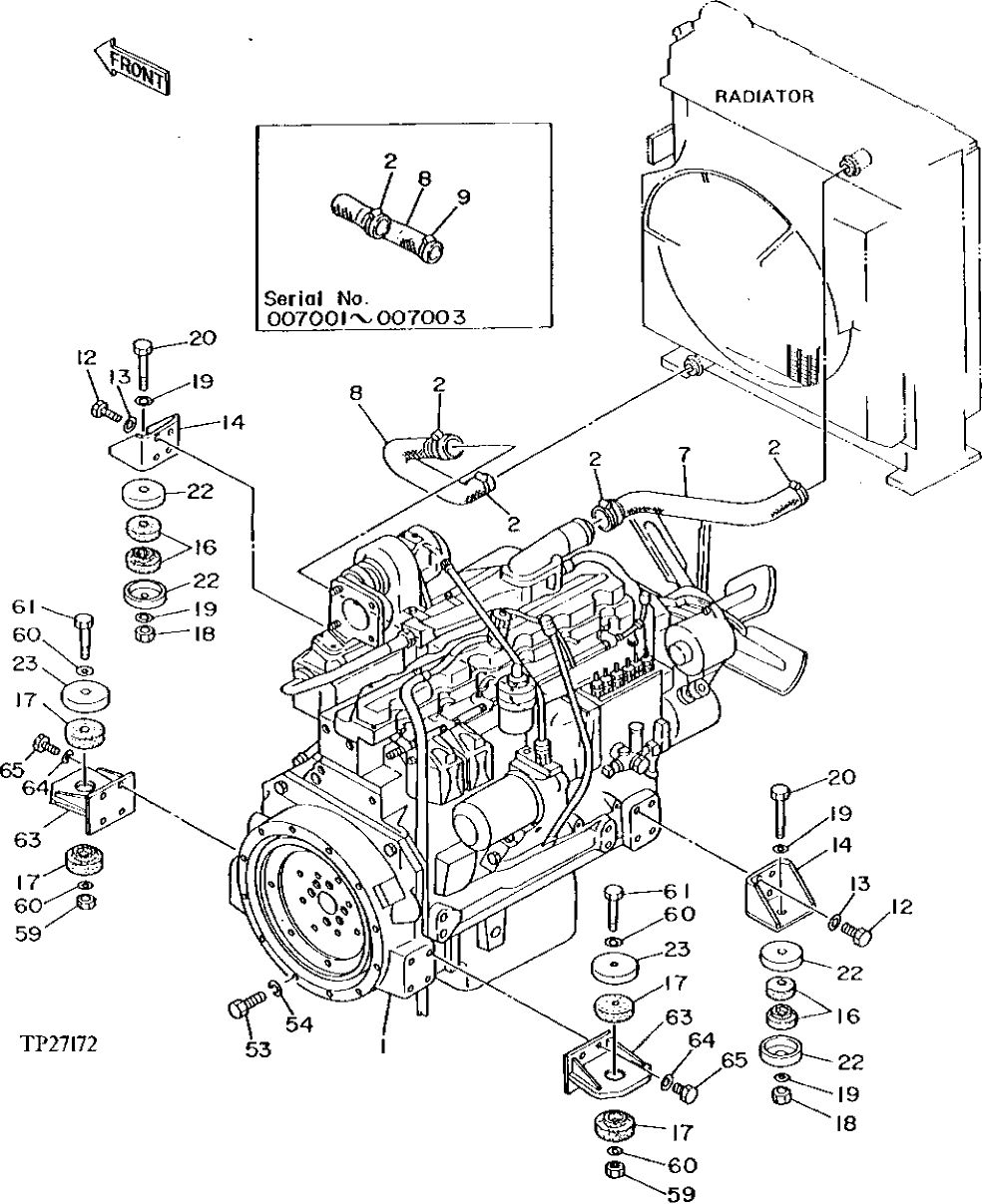

Запчасти John Deere 90D 2 - ENGINE 400 - ENGINE 4

1

ENGINE

1шт.

2

TY22472

CLAMP

(SUB FOR AT145651 OR AR21999)

4шт.

7

TH110141

RADIATOR HOSE

(SUB FOR TH109405) (UPPER RADIATOR HOSE)

1шт.

8

AT167268

RADIATOR HOSE

(SUB FOR TH109406 OR TH110142) (LOWER RADIATOR HOSE)

1шт.

12

19H2717

CAP SCREW

3/4" X 1-3/4"

8шт.

13

4156635

WASHER

(SUB FOR TH101732)

8шт.

14

8038870

BRACKET

(SUB FOR TH109407)

2шт.

16

4197144

ISOLATOR

(SUB FOR TH109408)

4шт.

17

4197145

ISOLATOR

(SUB FOR TH109409)

4шт.

18

J951018

NUT

(SUB FOR TH100890)

2шт.

19

4114406

WASHER

(SUB FOR TH100891)

4шт.

20

J931805

BOLT

(SUB FOR TH110083)

2шт.

22

4189018

STOP

(SUB FOR TH109410)

4шт.

23

4197147

STOP

(SUB FOR TH109411)

2шт.

53

19H3483

CAP SCREW

3/8" X 1-1/8"

5шт.

54

12H304

LOCK WASHER

3/8"

5шт.

59

14M7277

NUT

M20

2шт.

60

N231749

WASHER

(SUB FOR TH102927 OR T33089)

4шт.

61

19M7999

CAP SCREW

M20 X 130

2шт.

63

8038869

BRACKET

(SUB FOR TH109414)

2шт.

64

4114405

WASHER

(SUB FOR TH101105)

8шт.

65

19H2994

CAP SCREW

HS, SAE 8, 5/8" X 1-1/2"

8шт.
